License Lamp - Left

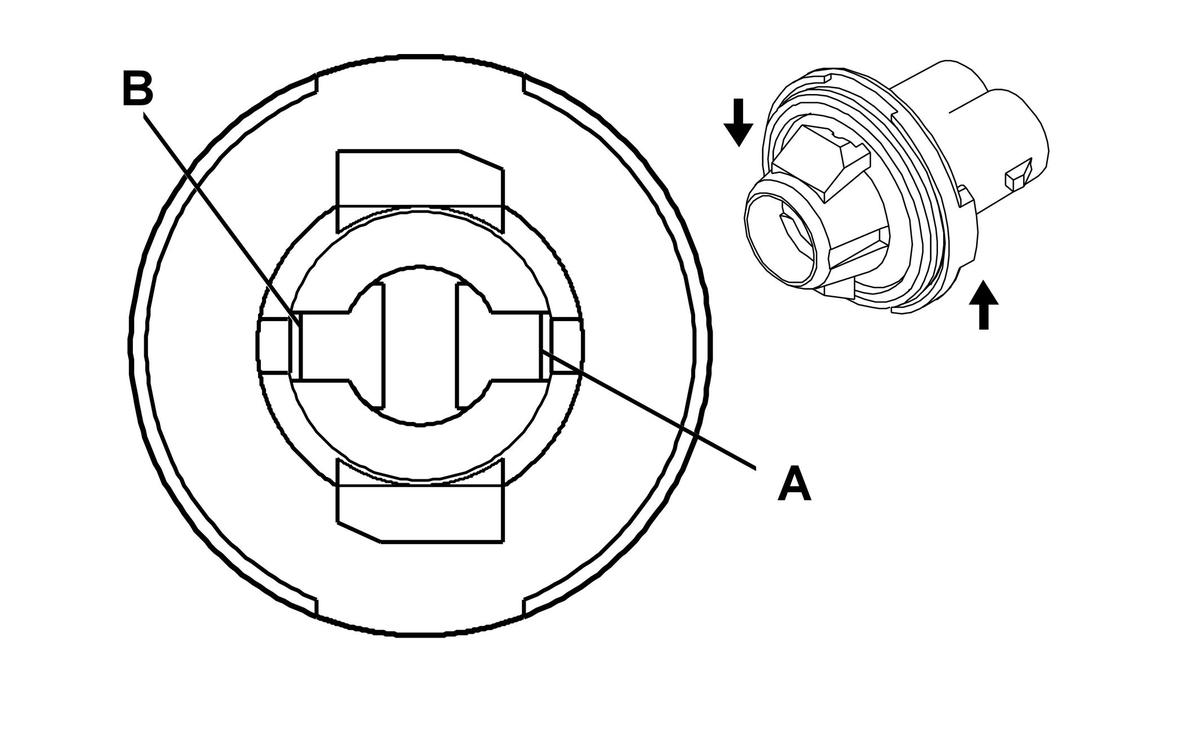

Fig 1: License Lamp - Left Connector End View
GM744036Courtesy of GENERAL MOTORS CORP.
License Lamp- Left

Pin Wire Circuit Function
A 0.5 BN 2509 Left Rear Park Lamps Control
B 0.5 BK 1450 Ground (E52)
0.5 BK 1750 Ground (without E52)
Connector Part Information
  • Harness Type: License Lamp (E52 or TB7)
  • Harness Type: Rear Bumper (without E52 or TB7)
  • OEM Connector: 15324946 (E52)
  • OEM Connector: 12110053 (without E52)
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 2-Way F Lamp Socket Wedge Base W2 Sealed (D-GY)
Terminal Part Information
  • Terminated Lead: Service by Harness- See Part Catalog
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: 12124471/5
  • Core/Insulation Crimp: 2/3
