Knock Sensor (KS) 1

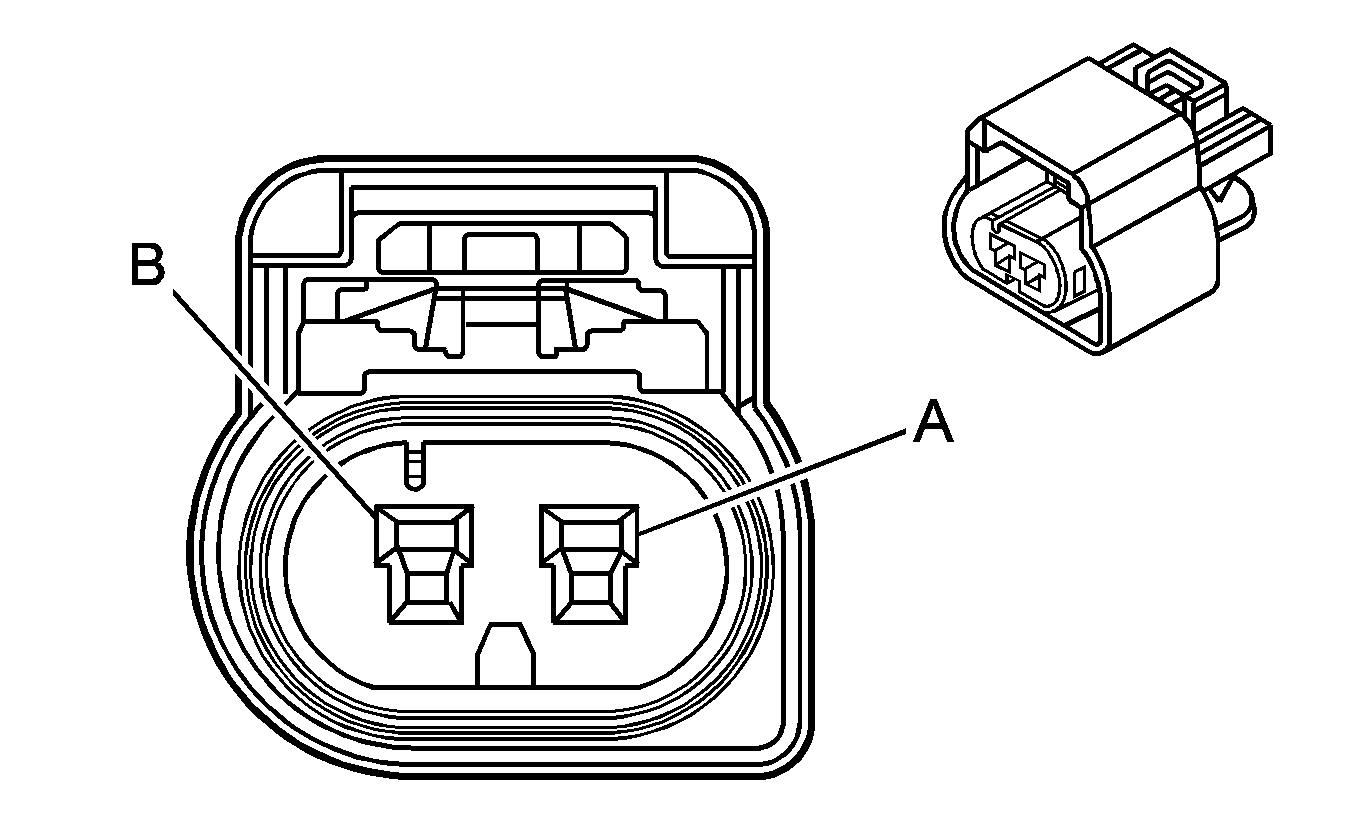

Fig 1: Knock Sensor (KS) 1 Connector End View
GM1232999Courtesy of GENERAL MOTORS CORP.
Knock Sensor (KS) 1

Pin Wire Circuit Function
A 0.8 L-BU 496 Knock Sensor (KS) 1 Signal
B 0.8 GY 1716 Knock Sensor (KS) 1 Signal
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 15374222
  • Service Connector: 88953268
  • Description: 2-Way F GT 150 Sealed (WH)
Terminal Part Information
  • Terminated Lead: 13575396
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 15326427/5
  • Core/Insulation Crimp: 2/1
