Inside Air Temperature Sensor - Front (CJ2)

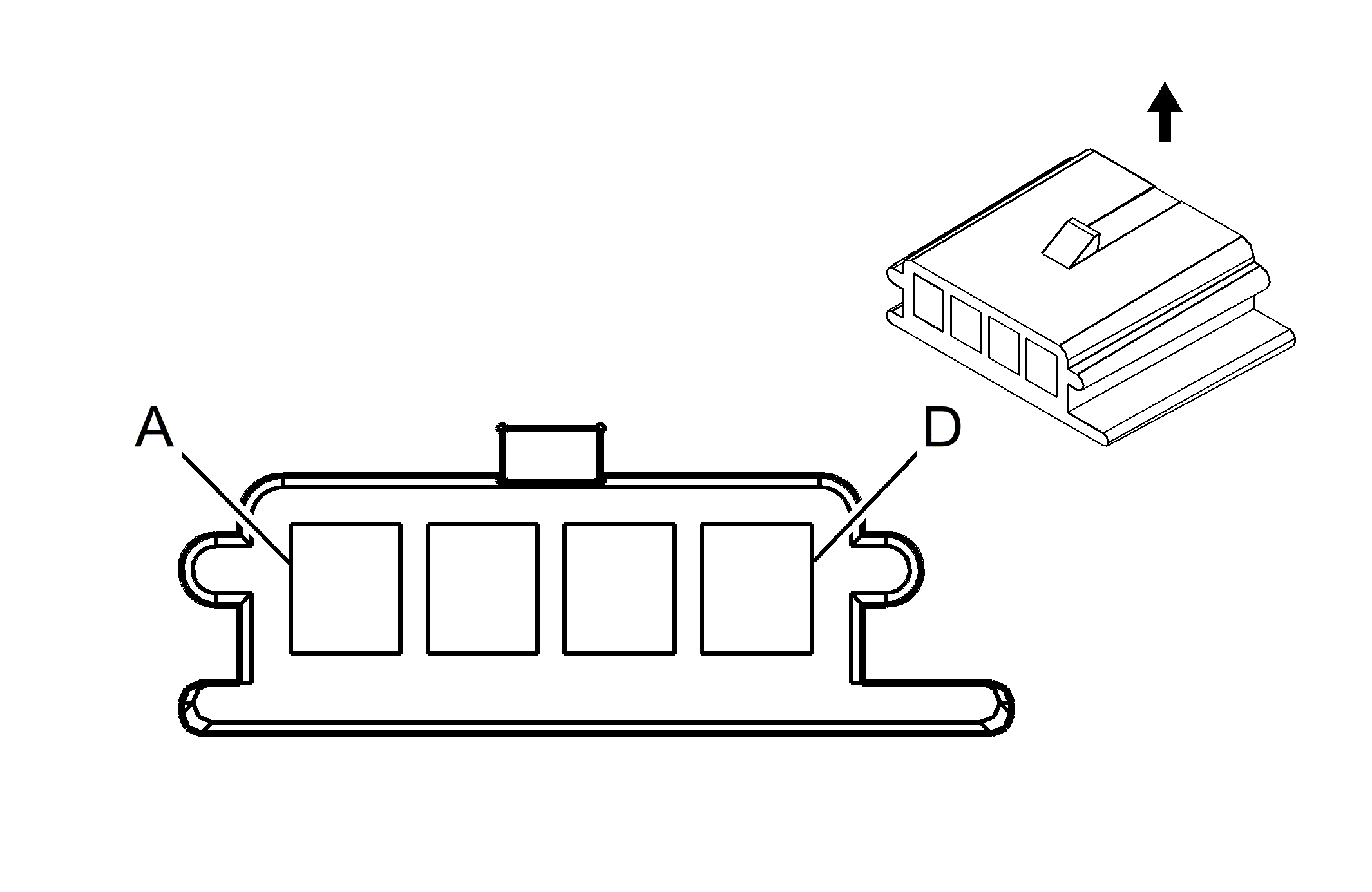

Courtesy of GENERAL MOTORS CORP. Inside Air Temperature Sensor- Front (CJ2)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 D-GN |
734 |
Inside Air Temperature Sensor Signal |
| B |
0.35 WH/BK |
5515 |
Inside Air Temperature Sensor Assembly Control |
| C |
0.35 BK |
1050 |
Ground |
| D |
0.35 D-GN |
6101 |
Low Reference |
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 12045813
- Service Connector: 12101889
- Description: 4-Way F Metri-Pack 150 Series (CM)
|
Terminal Part Information
- Terminated Lead: 13575464
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 15326030/5
- Core/Insulation Crimp: E/C
|
