Inline Fuse Digital Video Disc (DVD) Relay (AYE)

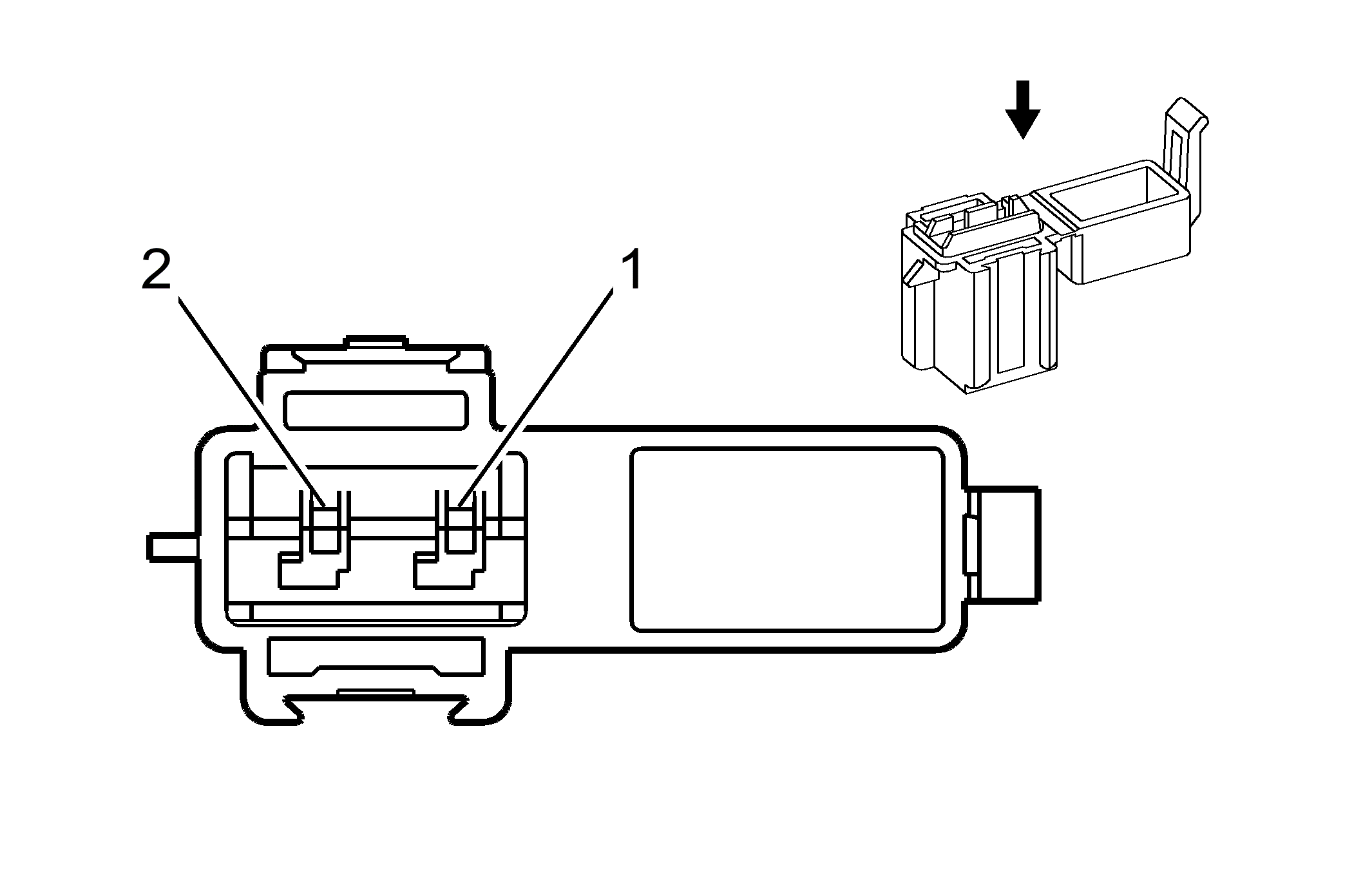

Fig 1: Inline Fuse Digital Video Disc (DVD) Relay (AYE) Connector End View
GM1743144Courtesy of GENERAL MOTORS CORP.
Inline Fuse Digital Video Disc (DVD) Relay (AYE)

Pin Wire Circuit Function
1 RD - Battery Positive Voltage
2 RD - Battery Positive Voltage
Connector Part Information
  • Harness Type: Headrest DVD Noise Filter Harness
  • OEM Connector: E-5972-002
  • Service Connector: 19115609
  • Description: Mini Fuse Connector (BK)
