Inflatable Restraint Passenger Presence System (PPS) Sensor (X88 with HP2 or Z88 with HP2)

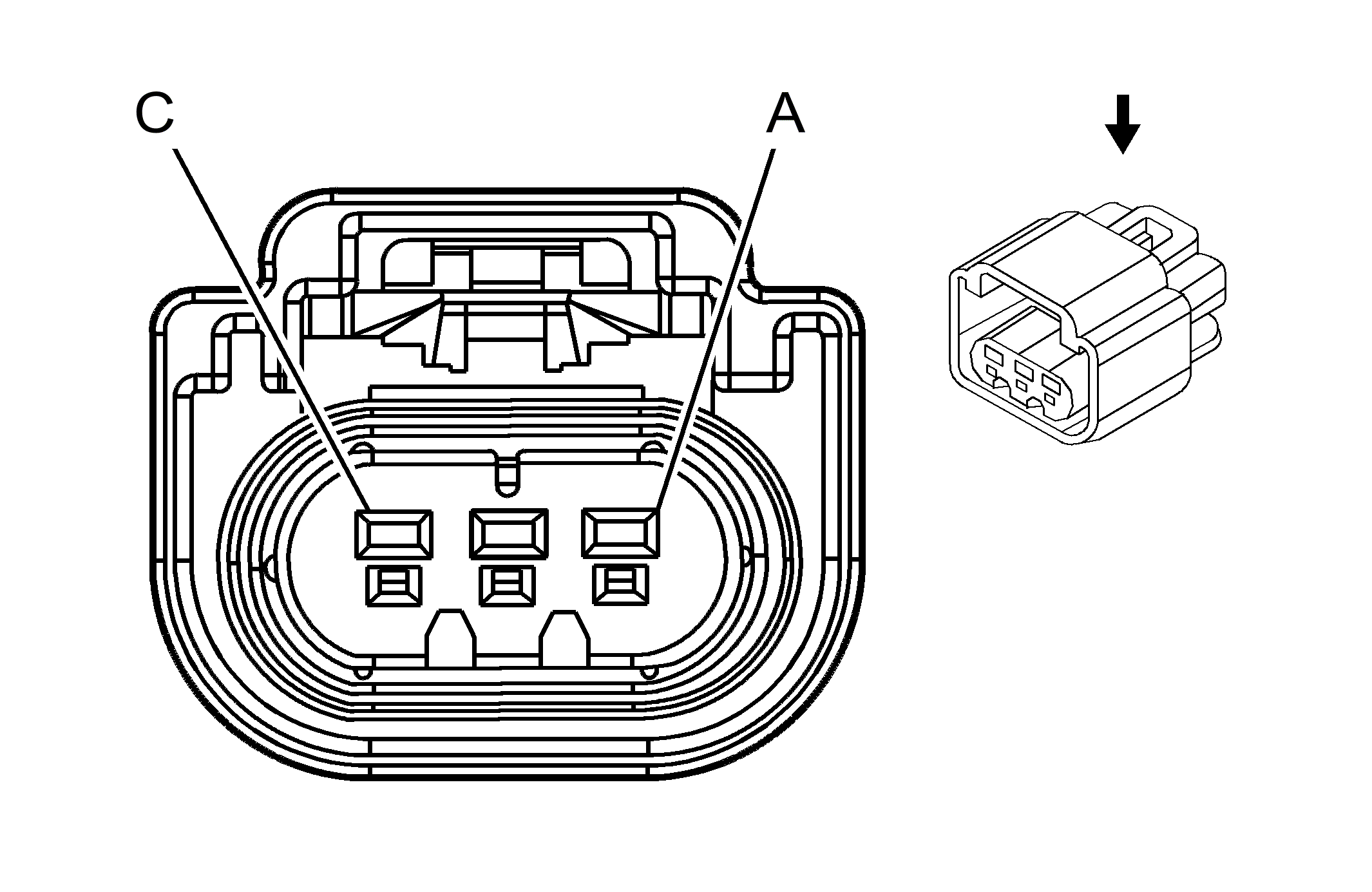

Fig 1: Inflatable Restraint Passenger Presence System (PPS) Sensor (X88 with HP2 or Z88 with HP2) Connector End View
GM1424764Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Passenger Presence System (PPS) Sensor (X88 with HP2 or Z88 with HP2)

Pin Wire Circuit Function
A 0.35 D-GN 5609 Occupant Pressure Sensor Voltage Reference
B 0.35 YE 5608 Occupant Pressure Sensor Signal
C 0.35 GY 5610 Low Reference
Connector Part Information
  • Harness Type: Passenger Seat
  • OEM Connector: 15422250
  • Service Connector: 88987995
  • Description: 3-Way F GT 150 Series Sealed (D-GY)
Terminal Part Information
  • Terminated Lead: Service by Connector Assembly- 88987995
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
