Horn Switch X4

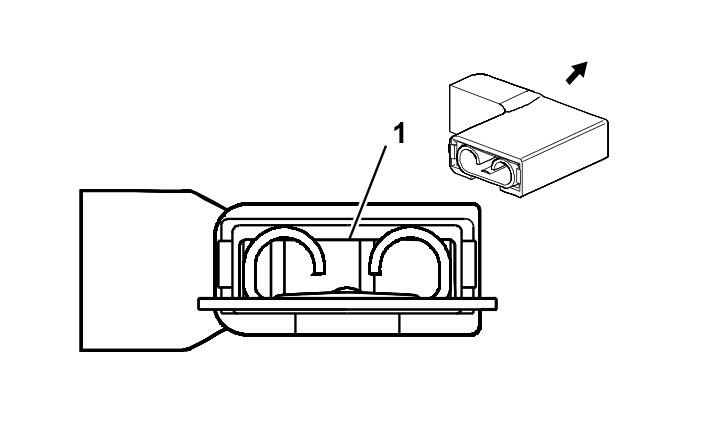

Fig 1: Horn Switch X4 Connector End View
GM1862161Courtesy of GENERAL MOTORS CORP.
Horn Switch X4

Pin Wire Circuit Function
1 BK 1050 Ground
Connector Part Information
  • Harness Type: Steering Wheel
  • OEM Connector: 2-520128-2
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 1-Way F 6.35 Series (RD)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
