Heated Steering Wheel (KA9)

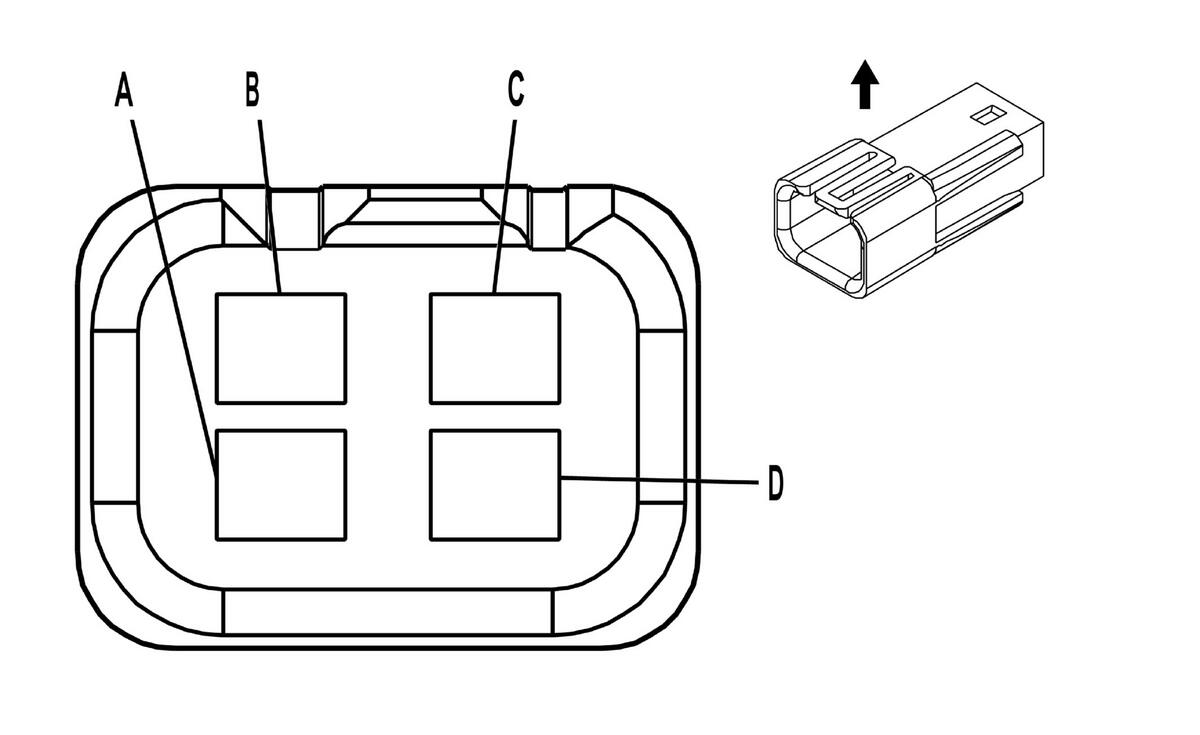

Fig 1: Heated Steering Wheel (KA9) Connector End View
GM39661Courtesy of GENERAL MOTORS CORP.
Heated Steering Wheel (KA9)

Pin Wire Circuit Function
A 0.35 BK 1050 Ground
B 0.35 YE 5888 Heated Steering Wheel High Control
C 0.35 L-GN/BK 5886 Heated Steering Wheel Sensor Signal
D 0.35 RD/BK 5885 Low Reference
Connector Part Information
  • Harness Type: Steering Wheel
  • OEM Connector: 12047786
  • Service Connector: 12085536
  • Description: 4-Way M Metri-Pack 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12047581/2
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 12094429/J-35616-3 (GY)
