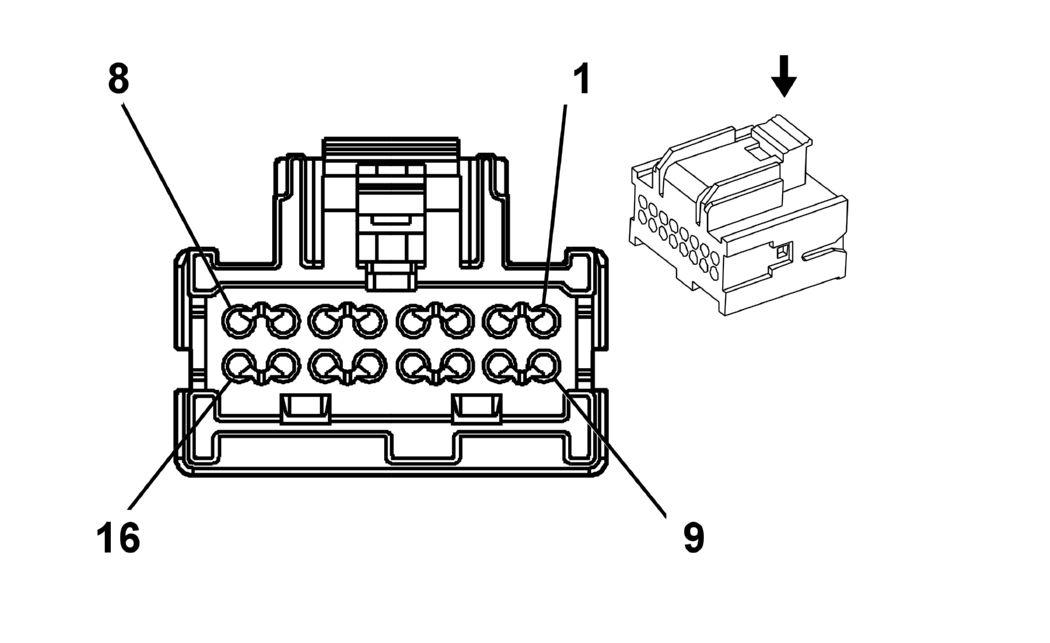

Headlamp and Panel Dimmer Switch (HP2)
Courtesy of GENERAL MOTORS CORP. Headlamp and Panel Dimmer Switch (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
103 |
Headlamp Switch On Signal |
| 2 |
0.35 L-BU |
13 |
Headlamp Switch Park Lamp Signal |
| 3 |
0.35 D-GN |
306 |
Headlamp Switch Headlamps Off Signal |
| 4-5 |
- |
- |
Not Used |
| 6 |
0.35 L-BU |
187 |
Rear Fog Lamp Switch Signal (T79) |
| 7 |
0.5 BN/WH |
230 |
Instrument Panel Lamp Dimming Control (X88 or Z88) |
| 0.35 YE |
6817 |
LED Backlight Dimming Control (Z75) |
| 8 |
0.35 BK |
1850 |
Ground |
| 9 |
0.35 PU |
328 |
Interior Lamp Switch Voltage Control |
| 10 |
0.35 OG |
192 |
Front Fog Lamp Switch Signal (T96) |
| 11 |
- |
- |
Not Used |
| 12 |
0.35 D-BU/WH |
149 |
Courtesy Lamp Control |
| 13 |
0.35 D-GN |
44 |
Instrument Panel Lamps Dimmer Switch Signal |
| 14 |
- |
- |
Not Used |
| 15 |
0.35 OG/WH |
812 |
12-Volt Reference |
| 16 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13783349
- Service Connector: 13578573
- Description: 16-Way F Micro 64 Series Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
|
