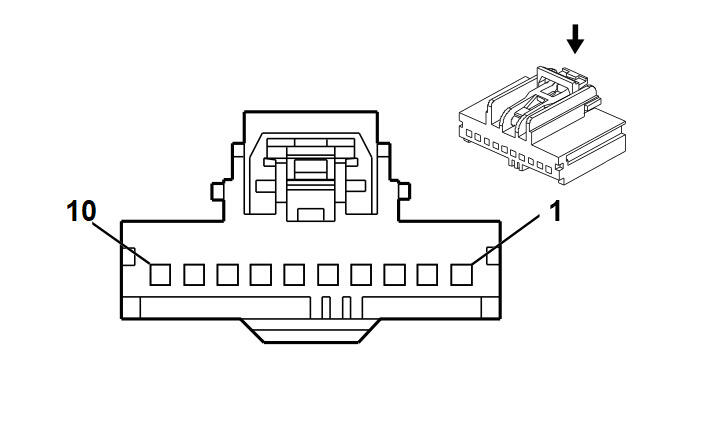

HVAC Control Module - Auxiliary (CJ3 with C69, without U42)
Courtesy of GENERAL MOTORS CORP. HVAC Control Module - Auxiliary (CJ3 with C69, without U42)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BN/WH |
230 |
Instrument Panel Lamp Dimming Control |
| 2 |
0.35 BK |
1050 |
Ground |
| 3 |
0.35 GY |
597 |
5-Volt Reference |
| 4 |
0.35 D-GN |
6101 |
Low Reference |
| 5-6 |
- |
- |
Not Used |
| 7 |
0.35 PU/WH |
760 |
Auxiliary Blower Motor Speed Signal |
| 8 |
0.35 YE |
2214 |
Auxiliary Air Temperature Signal |
| 9 |
- |
- |
Not Used |
| 10 |
0.35 OG |
2615 |
Auxiliary Mode Door Signal |
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 15490628
- Service Connector: 89047355
- Description: 10-Way F Kaizen 0.64 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575845
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SAIT-A03T-M064/14
- Core/Insulation Crimp: P/P
|
