Fuel Pressure Sensor (except L96)

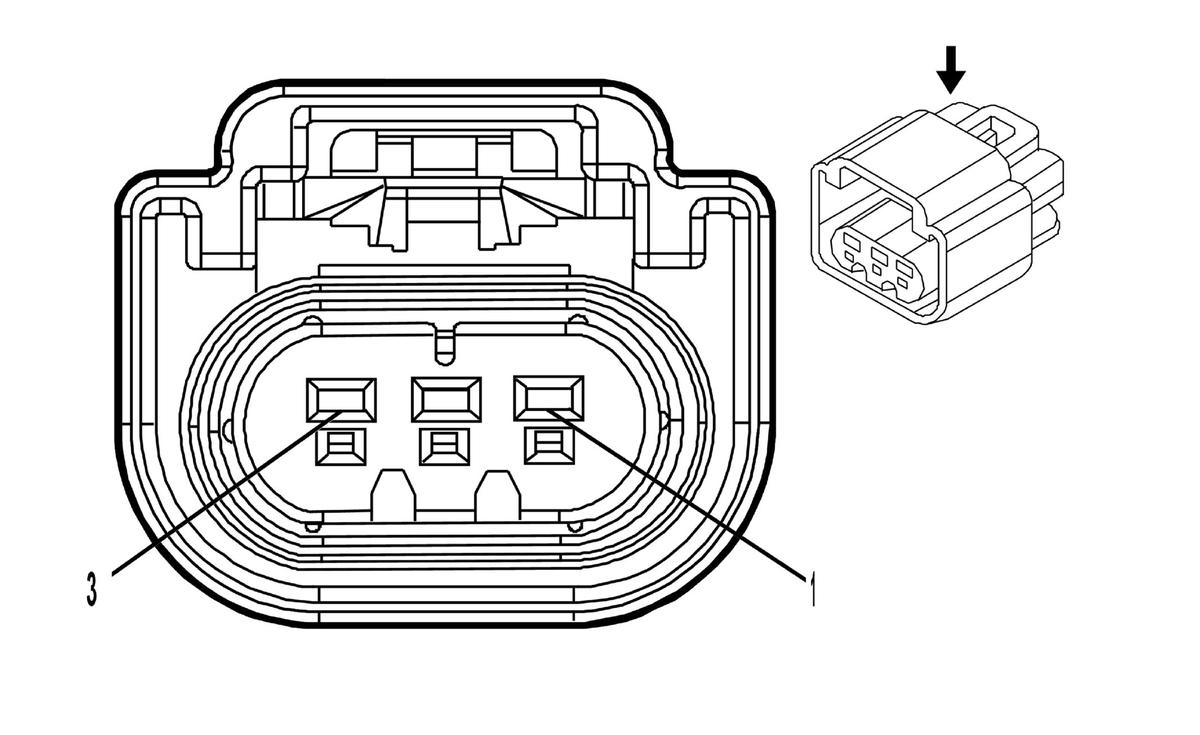

Courtesy of GENERAL MOTORS CORP. Fuel Pressure Sensor (except L96)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 PU |
7446 |
Fuel Line Pressure Sensor Signal |
| 2 |
0.5 GY |
7447 |
Low Reference |
| 3 |
0.5 BN |
7445 |
Reference Voltage |
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13511131
- Service Connector: 19168035
- Description: 3-Way F GT 150 Series Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575413
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
