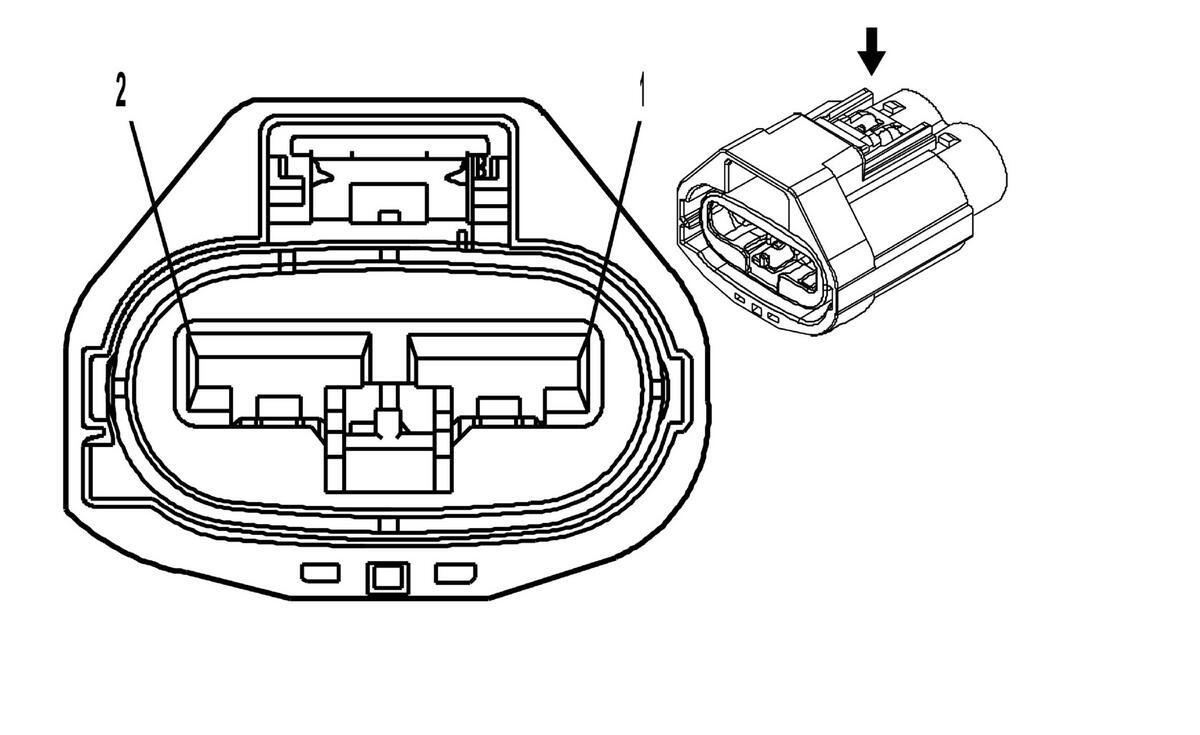

Engine Cooling Fan Resistor - Left (HP2)
Courtesy of GENERAL MOTORS CORP. Engine Cooling Fan Resistor - Left (HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
5 L-BU |
409 |
Cooling Fan Motor Control |
| 2 |
5 L-BU |
409 |
Cooling Fan Motor Control |
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 15486525
- Service Connector: 88988820
- Description: 2-Way M Y-Type 9.5 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assemnly- 88988820
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-22 (RD)
- Terminal/Tray: 7116-3250/10
- Core/Insulation Crimp: G/3
|
