Installation Procedure

  1. Position the hitch platform to the vehicle.

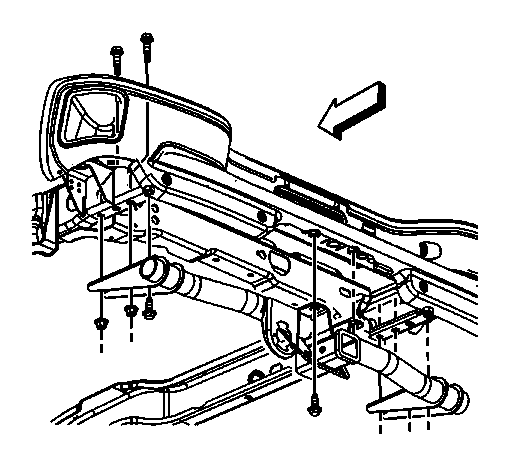

    2. Fig 1: Hitch Platform And Platform Bolts
    GM1702263Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the platform hitch bolts to the frame rails and the rear bumper.
    • Tighten the trailer hitch-to-frame bolts to 113 N.m (83 lb ft).
    • Tighten the trailer hitch-to-bumper bolts to 100 N.m (74 lb ft).
    3. Fig 2: Trailer Wiring Harness
    GM399253Courtesy of GENERAL MOTORS CORP.
  3. Connect the trailer wiring harness.
