Steering Linkage Shield Replacement

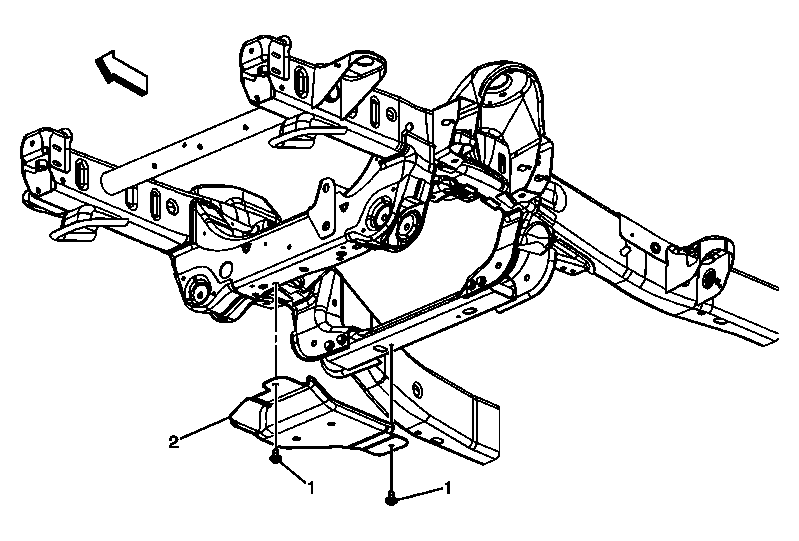

Fig 1: Steering Linkage Shield
GM1914863Courtesy of GENERAL MOTORS CORP.
Steering Linkage Shield Replacement

Callout Component Name
Preliminary Procedure
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Steering Linkage Shield Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
2 Steering Linkage Shield
