Shift Lever Replacement
Shift Lever Replacement

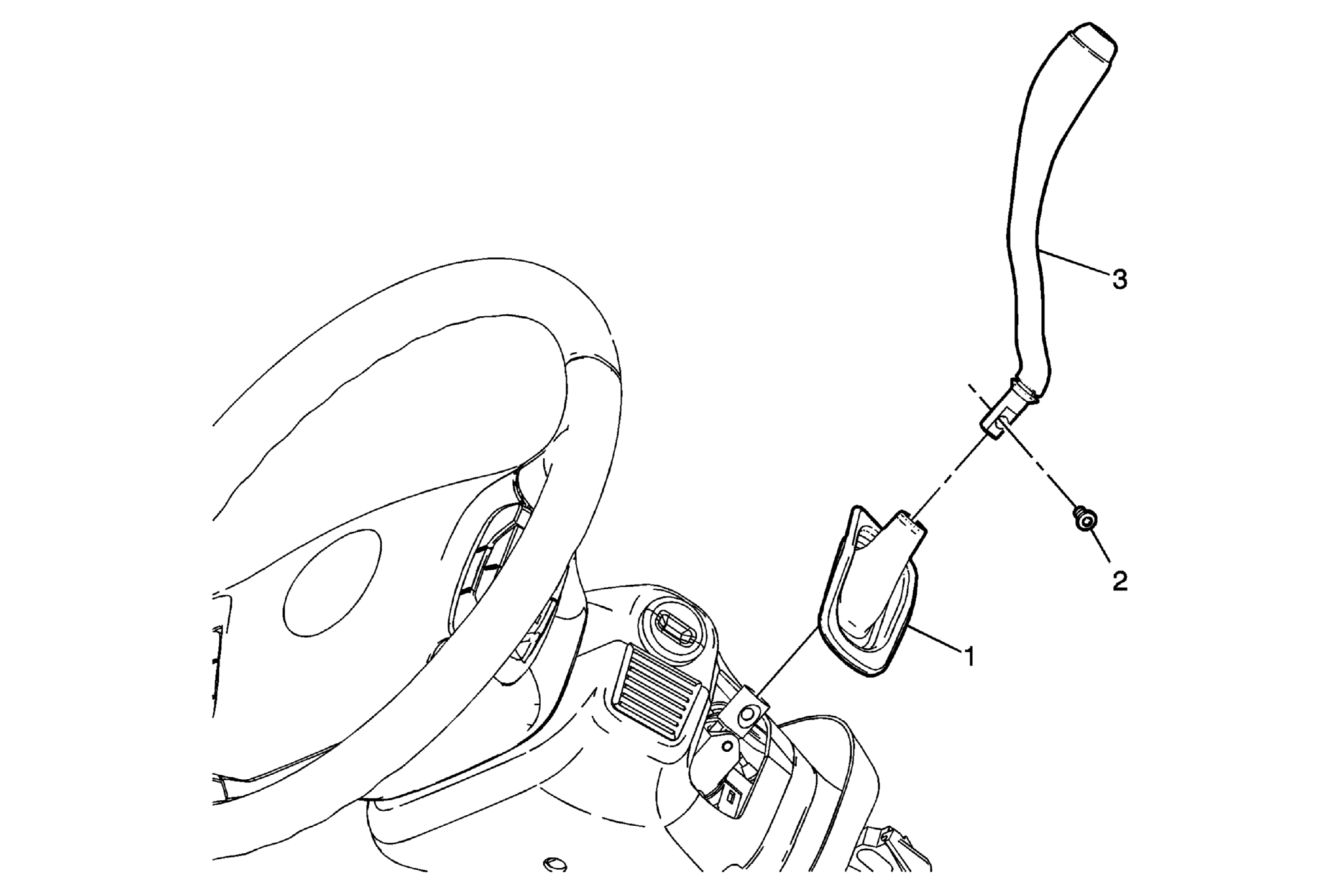

| Callout | Component Name |
|---|---|
| 1 | Shift Lever Boot Procedure Use gentle pressure to disengage the shift lever boot from the steering column trim covers. |
| 2 | Shift Lever Bolt
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb in) |
| 3 | Shift Lever |
