Removal Procedure

  1. Place a drain pan under the vehicle.

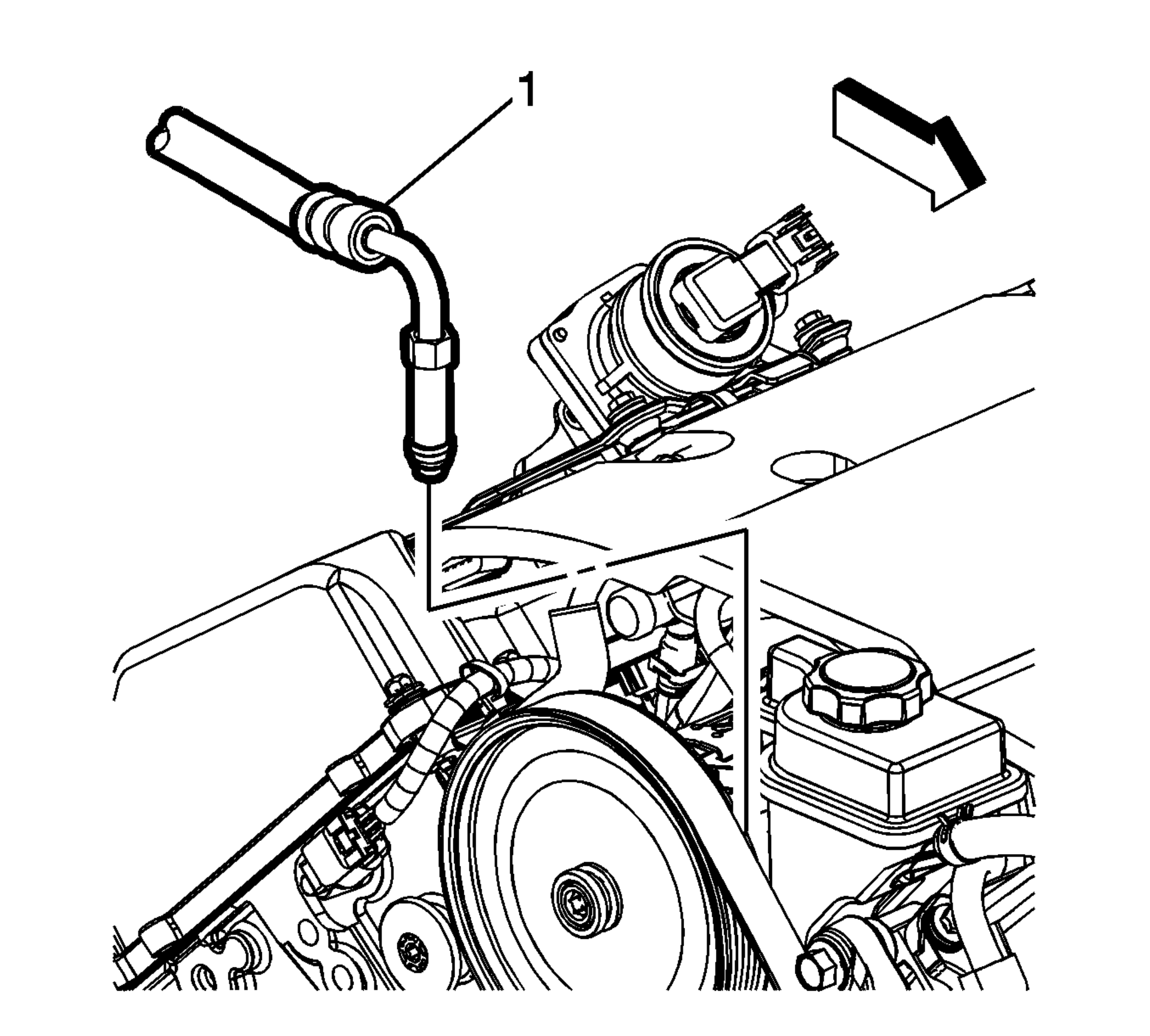

    2. Fig 1: Power Steering Pressure Pipe/Hose
    GM2519668Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the power steering pressure hose (1) from the power steering pump.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  5. Remove the power steering gear heat shield. Refer to Steering Gear Heat Shield Replacement .

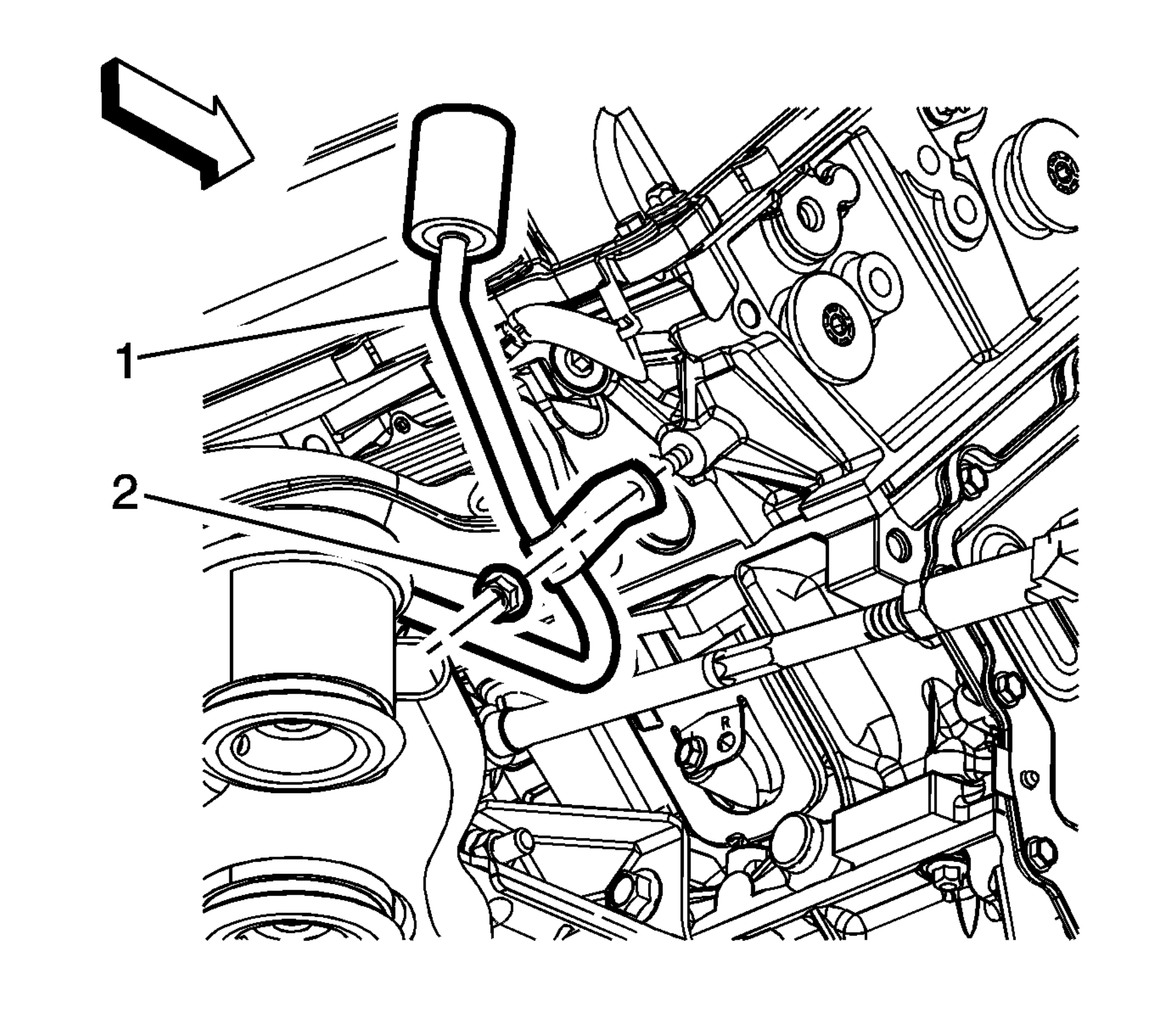

    6. Fig 2: Power Steering Pressure Pipe/Hose & Bracket Nut
    GM2519628Courtesy of GENERAL MOTORS COMPANY
  6. Remove the power steering pressure hose bracket nut (2) from the stud on the right rear part of the cylinder head.
  7. Disconnect the power steering pressure hose (1) from the stud.

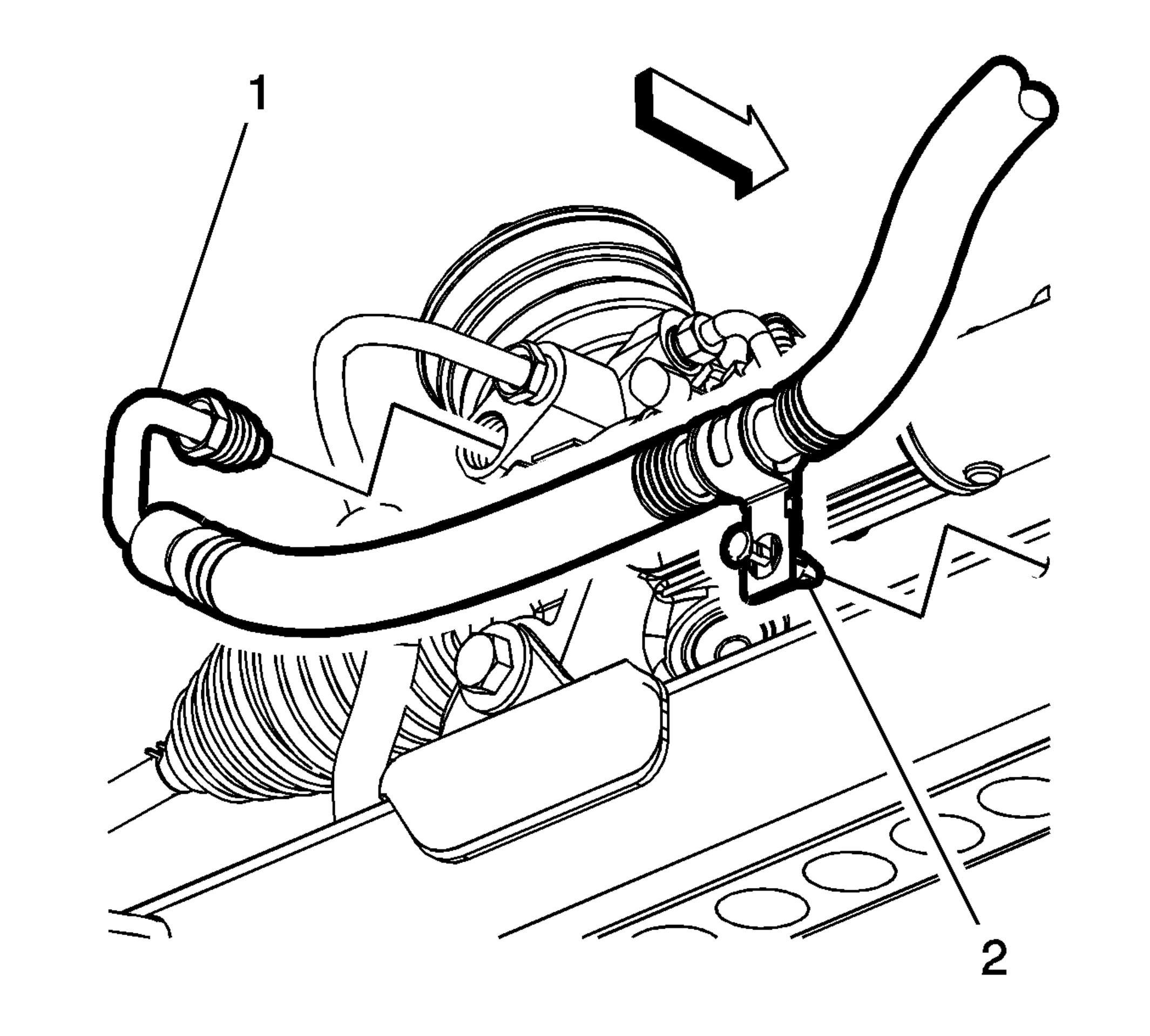

    8. Fig 3: Power Steering Pressure Pipe/Hose & Retainer
    GM2519603Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect the power steering pressure hose retainer (2) from the frame.
  9. Disconnect the power steering pressure hose (1) from the power steering gear.
  10. Remove the power steering pressure hose from the vehicle.
