Rear Seat Belt Retractor Replacement
Rear Seat Belt Retractor Replacement

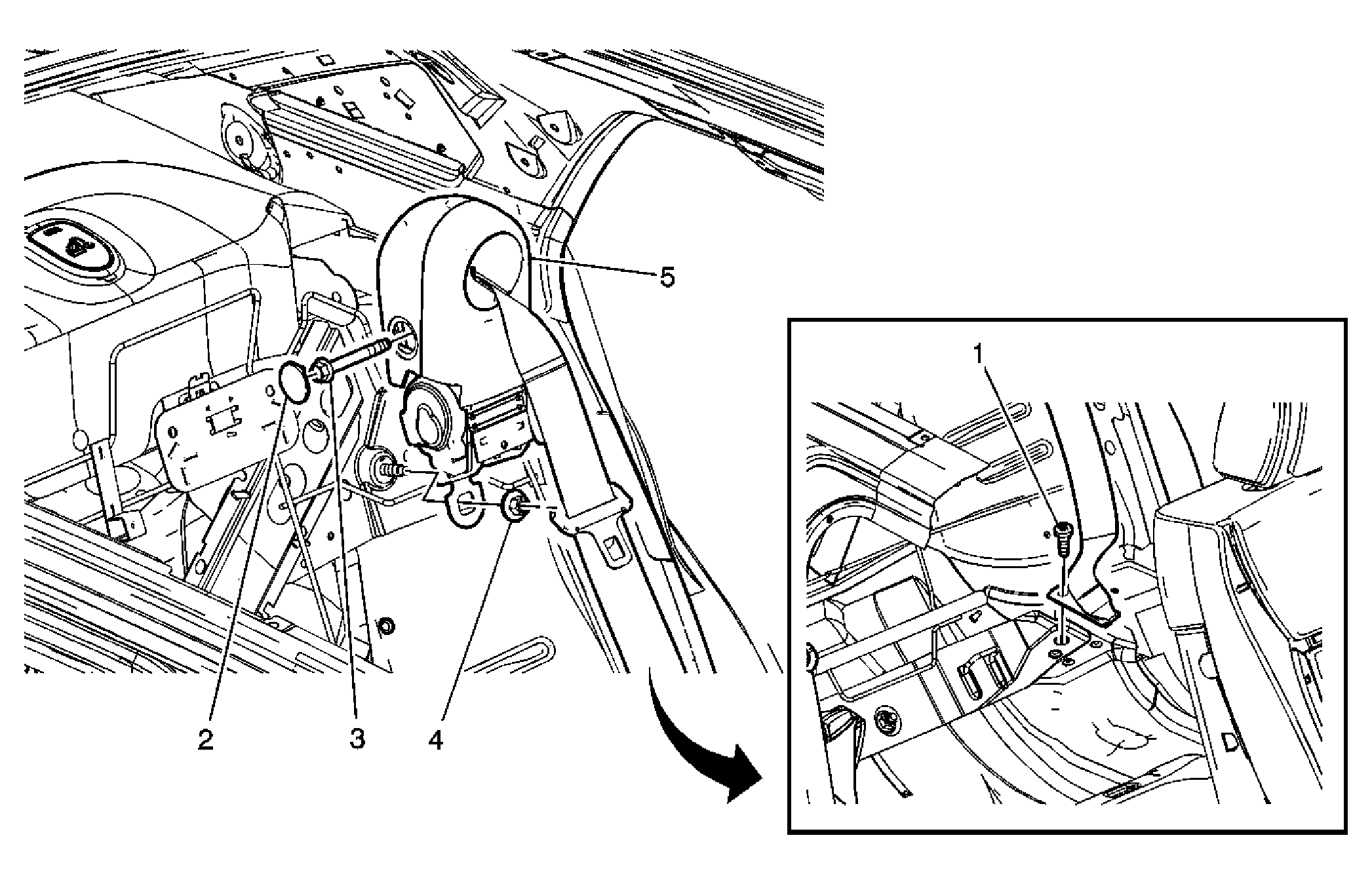

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat. Refer to Rear Seat Back Cushion Replacement , and Rear Seat Cushion Replacement . |
|
| 1 | Shoulder Belt Anchor Plate Bolt
CAUTION:
Refer to Fastener Caution . Tighten 30 N.m (22 lb ft) |
| 2 | Rear Seat Retractor Bolt Hole Plug TIP: Use a small flat-bladed tool to remove the plug. Use caution to not scratch the finish of the plug or the housing. |
| 3 | Rear Seat Retractor Bolt Tighten 36 N.m (27 lb ft) |
| 4 | Rear Seat Belt Retractor Nut Tighten 36 N.m (27 lb ft) |
| 5 | Rear Seat Belt Retractor Assembly |
