Front Seat Center Latch Side Belt Replacement

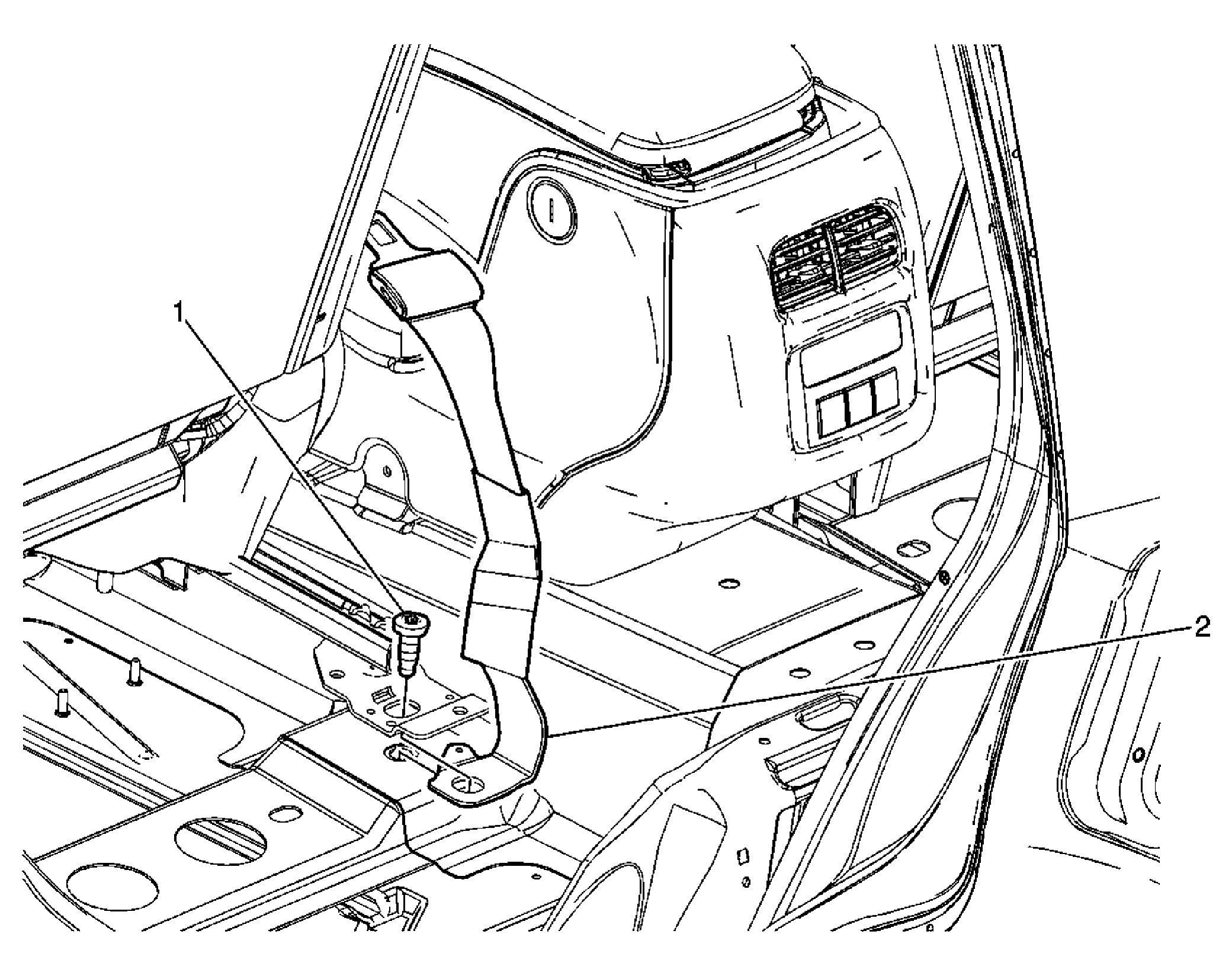

Fig 1: Front Seat Center Latch Side Belt & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Left Seat Bolt CAUTION: Refer to Fastener Caution . TIP: Slide the passenger seat to the full forward position and adjust the seat back to the full forward position to allow access. Tighten 45 N.m (33 lb ft)
2	Center Front Seat Belt
