Front Center Seat Belt Buckle Replacement

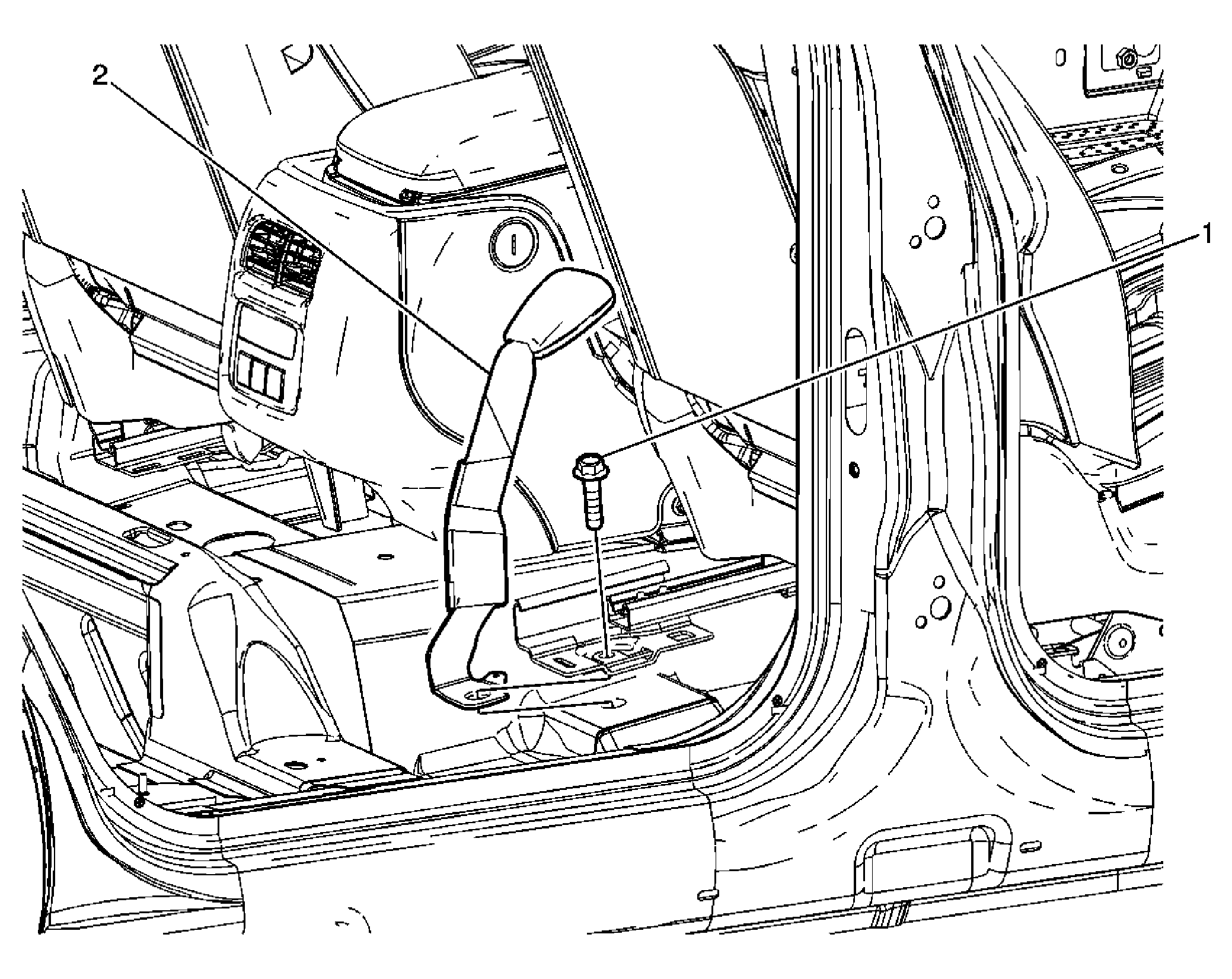

Fig 1: Front Center Seat Belt Buckle & Bolt

Courtesy of GENERAL MOTORS COMPANY

Front Center Seat Belt Buckle Replacement

Callout	Component Name
1	Seat Bolt CAUTION: Refer to Fastener Caution . TIP:  Slide the driver seat to the full forward position and adjust the seat back to the full forward position to allow access. Tighten  45 N.m (33 lb ft)
2	Seat Belt Buckle Center Front
