Child Seat Restraint System Belt Bracket Replacement
Child Seat Restraint System Belt Bracket Replacement

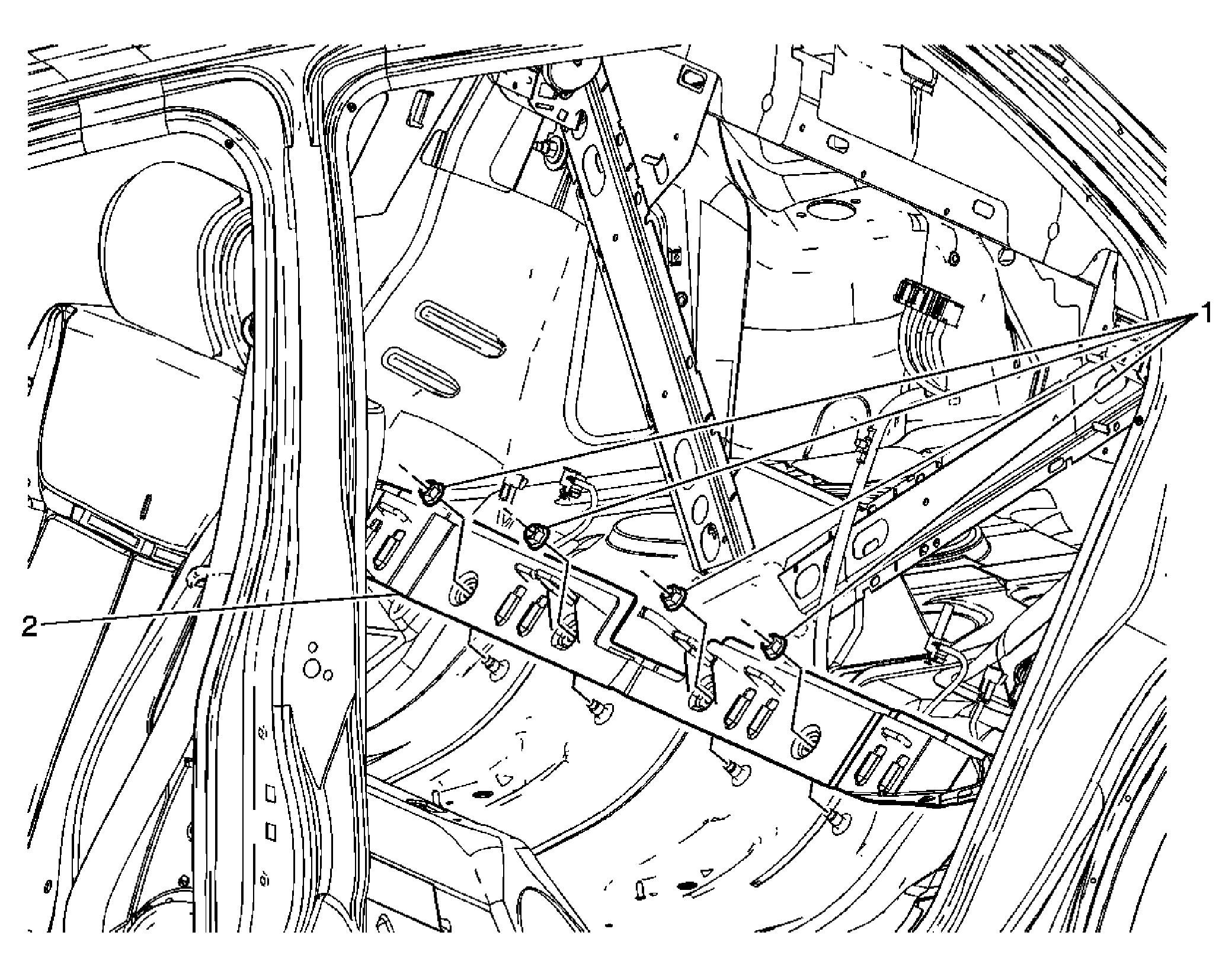

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat. Refer to Rear Seat Back Cushion Replacement , and Rear Seat Cushion Replacement . |
|
| 1 | Child Restraint Tether Anchor Plate Nut
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Child Restraint Tether Anchor Plate |
