Lower Left Side of I/P

Lower Left Side of I/P

Component Name Callout
Park Brake Switch 1
Instrument Cluster 2
Brake Pedal Position Sensor 3
Accelerator Pedal Position (APP) Sensor 4

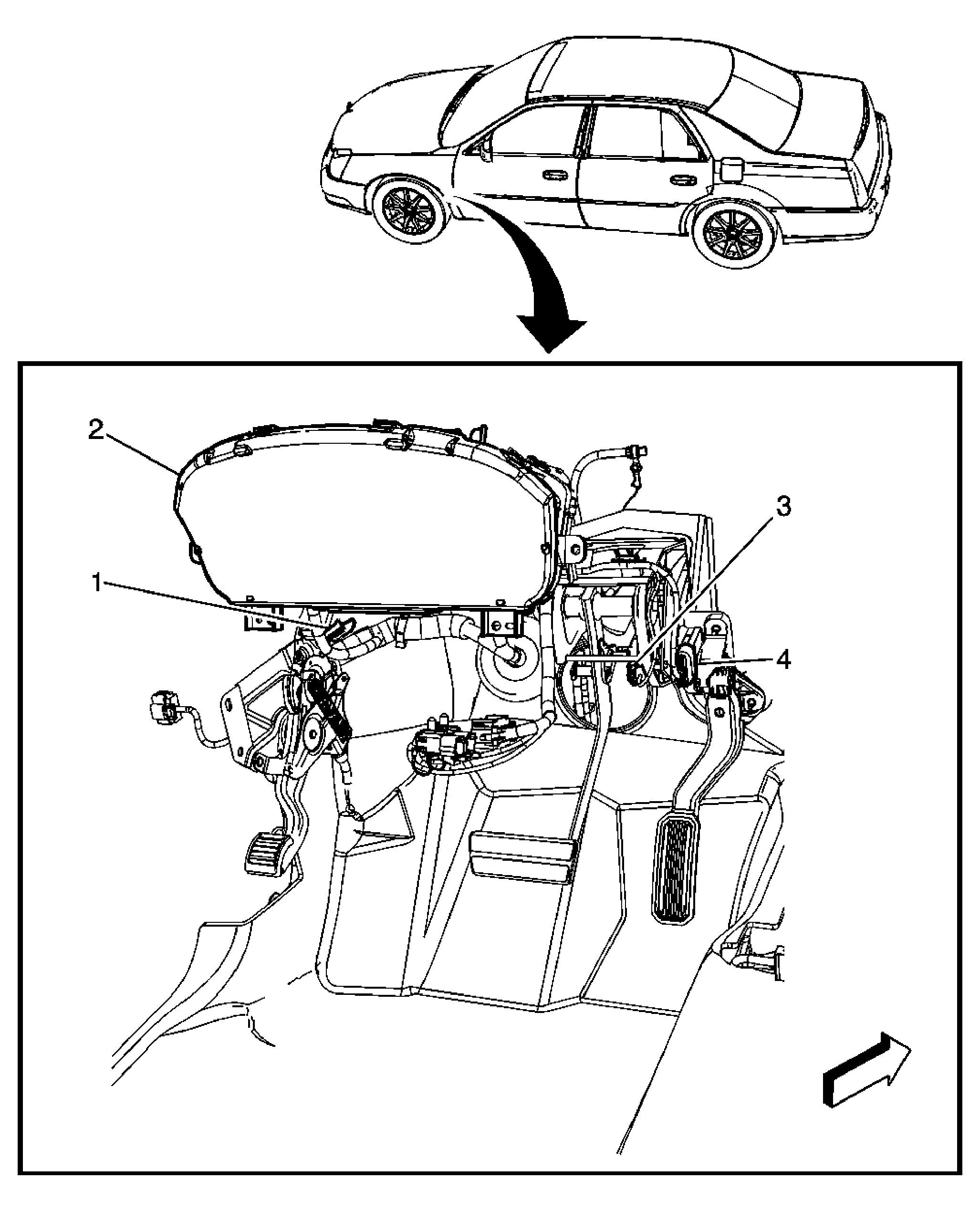

Fig 1: Lower Left Side of I/P Component Views
GM1657017Courtesy of GENERAL MOTORS COMPANY
