Center of Console Extension

Center of Console Extension

Component Name Callout
Sunload Twilight Sensor 1
Clock 2
Hazard Switch 3
Radio/Navigation (U3Q/U3R) 4

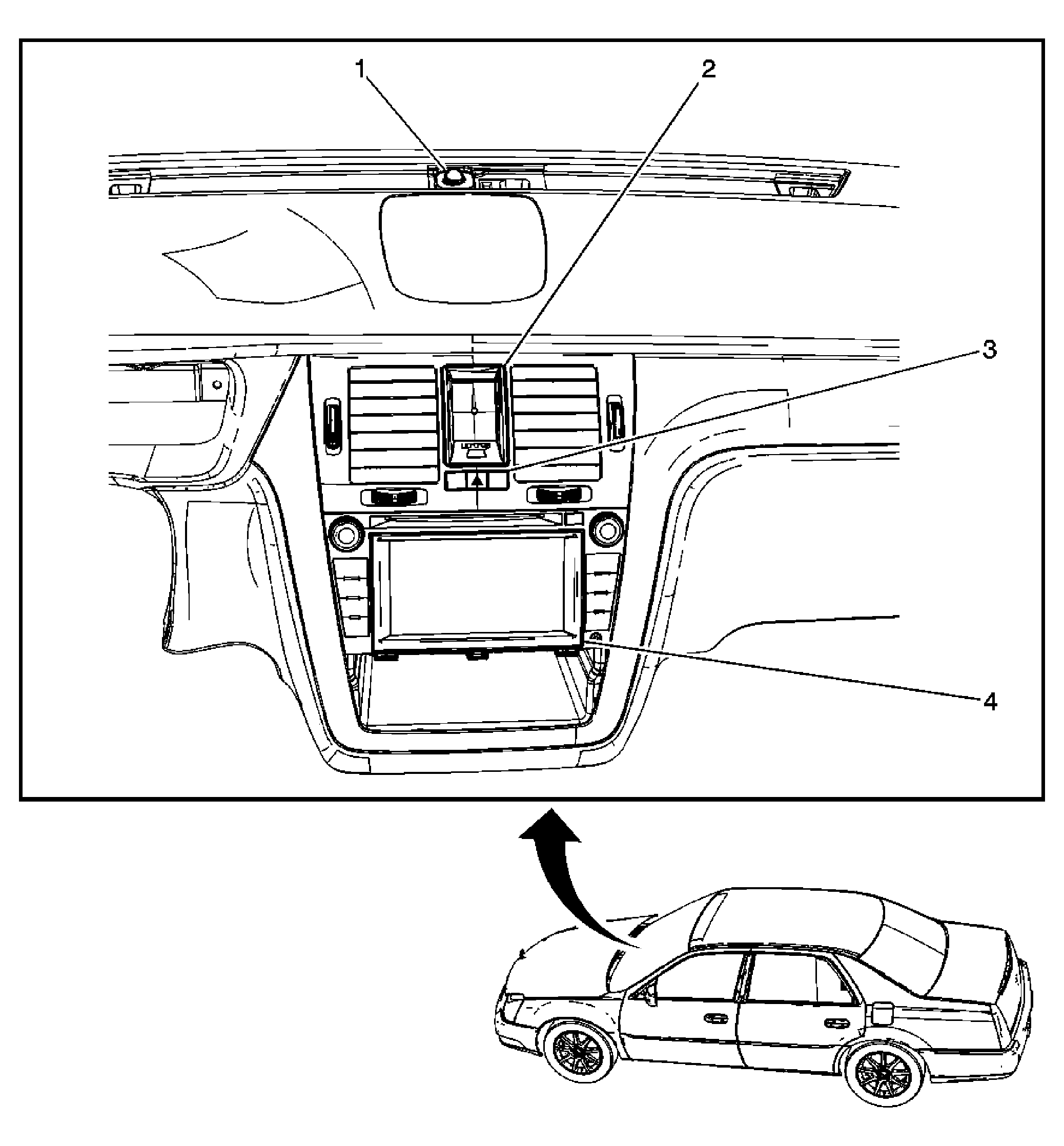

Fig 1: Center of Console Extension Component Views
GM1697763Courtesy of GENERAL MOTORS COMPANY
