Steering Wheel Heat Control Module Replacement

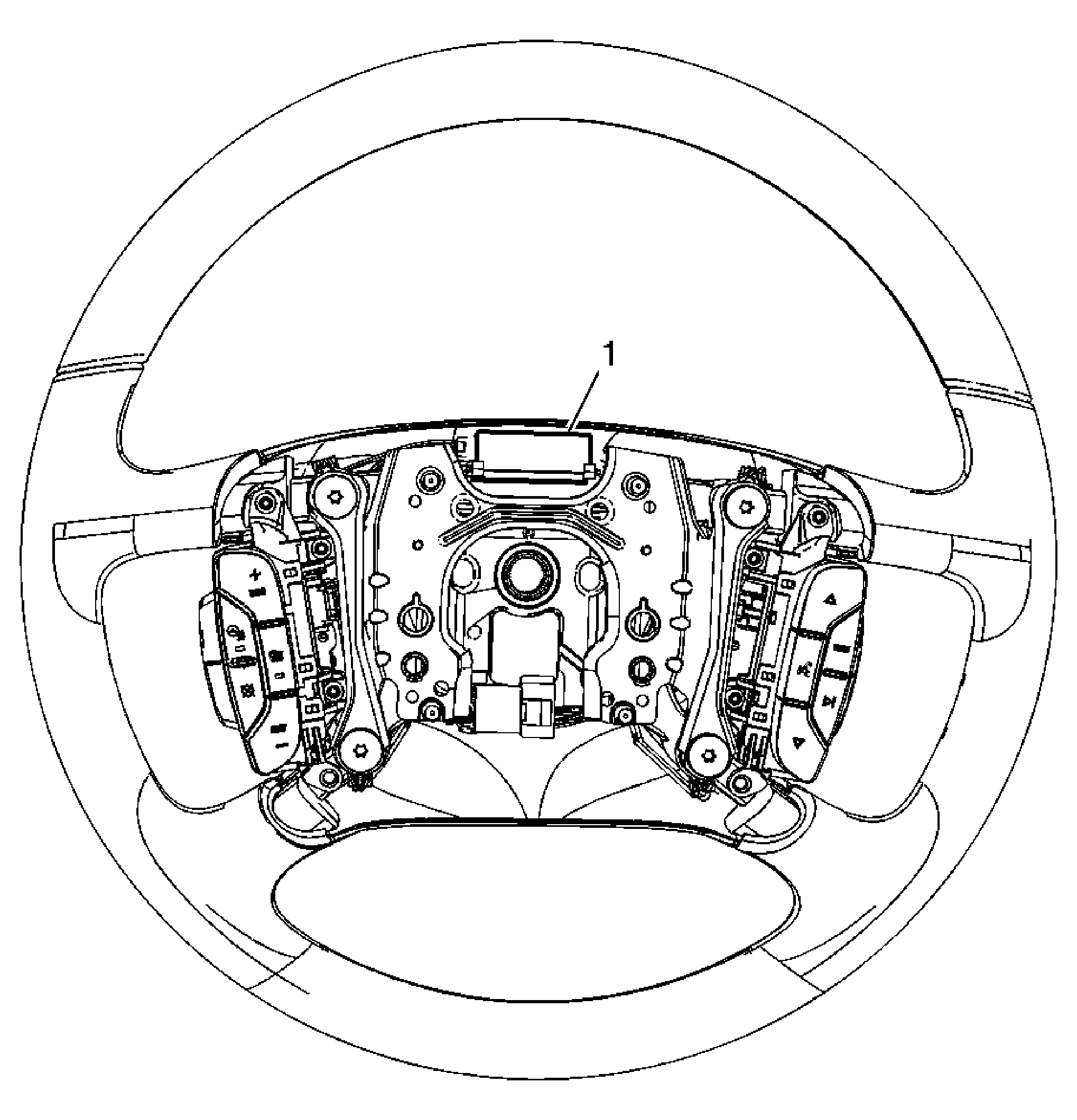

Fig 1: Steering Wheel Heat Module
GM1652388Courtesy of GENERAL MOTORS COMPANY
Steering Wheel Heat Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1 Steering Wheel Heat Module

Procedure

  1. Release the plastic arms retaining the steering wheel heat module and slide it forward past them.
  2. Disconnect the electrical connector.
