Data Communication Wiring Schematics

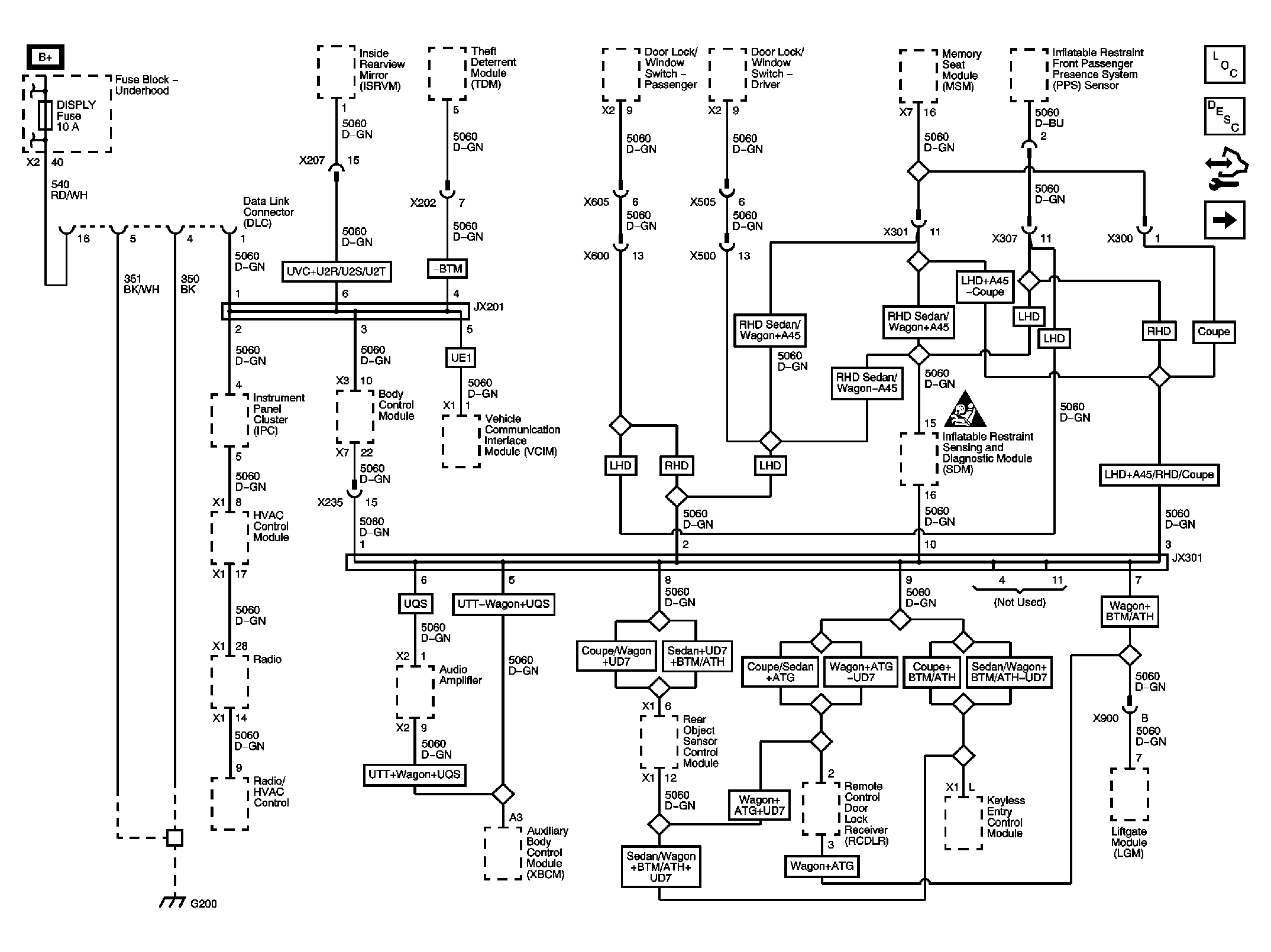

Fig 1: Low Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Linear Interconnect Network (LIN) Bus Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

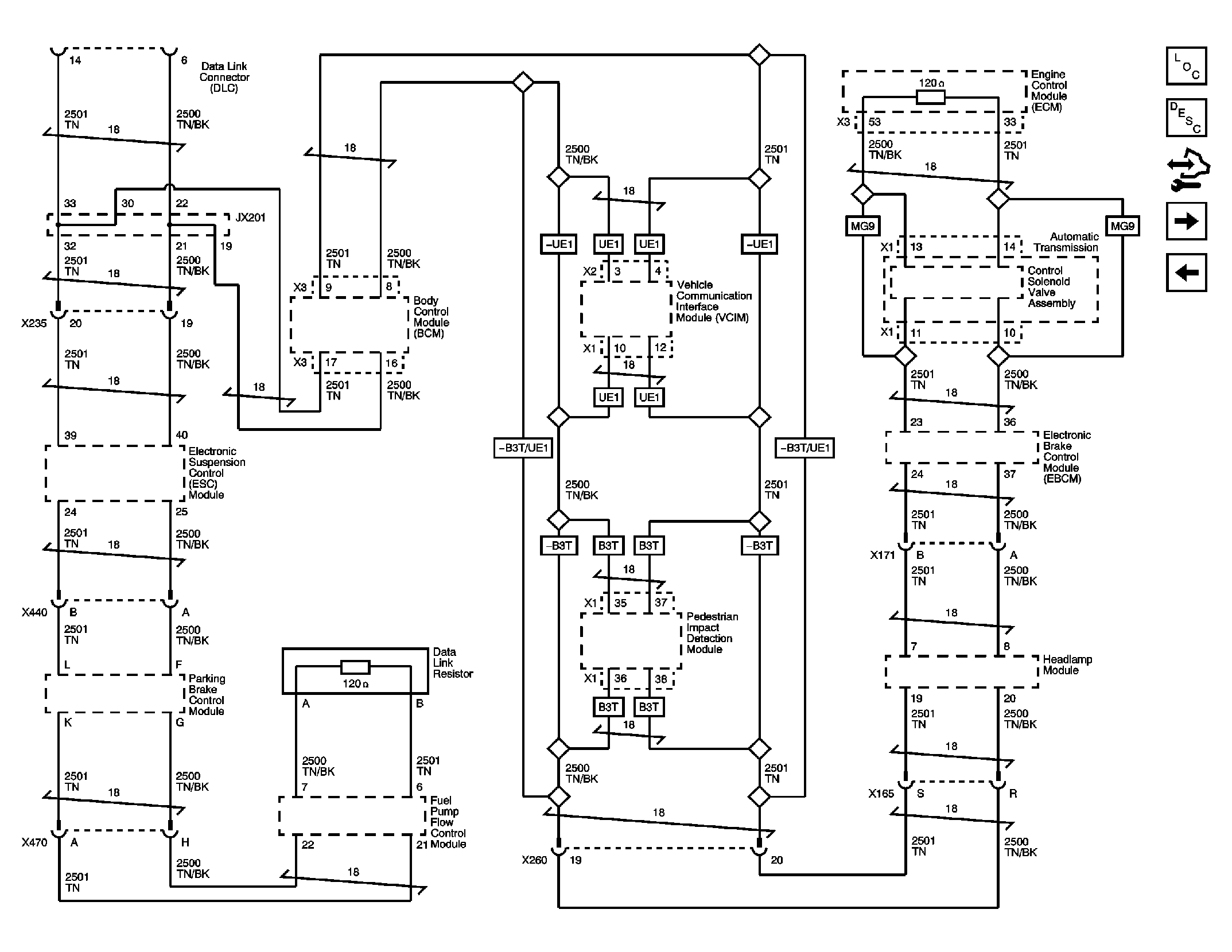

Fig 3: High Speed GMLAN (LSA) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

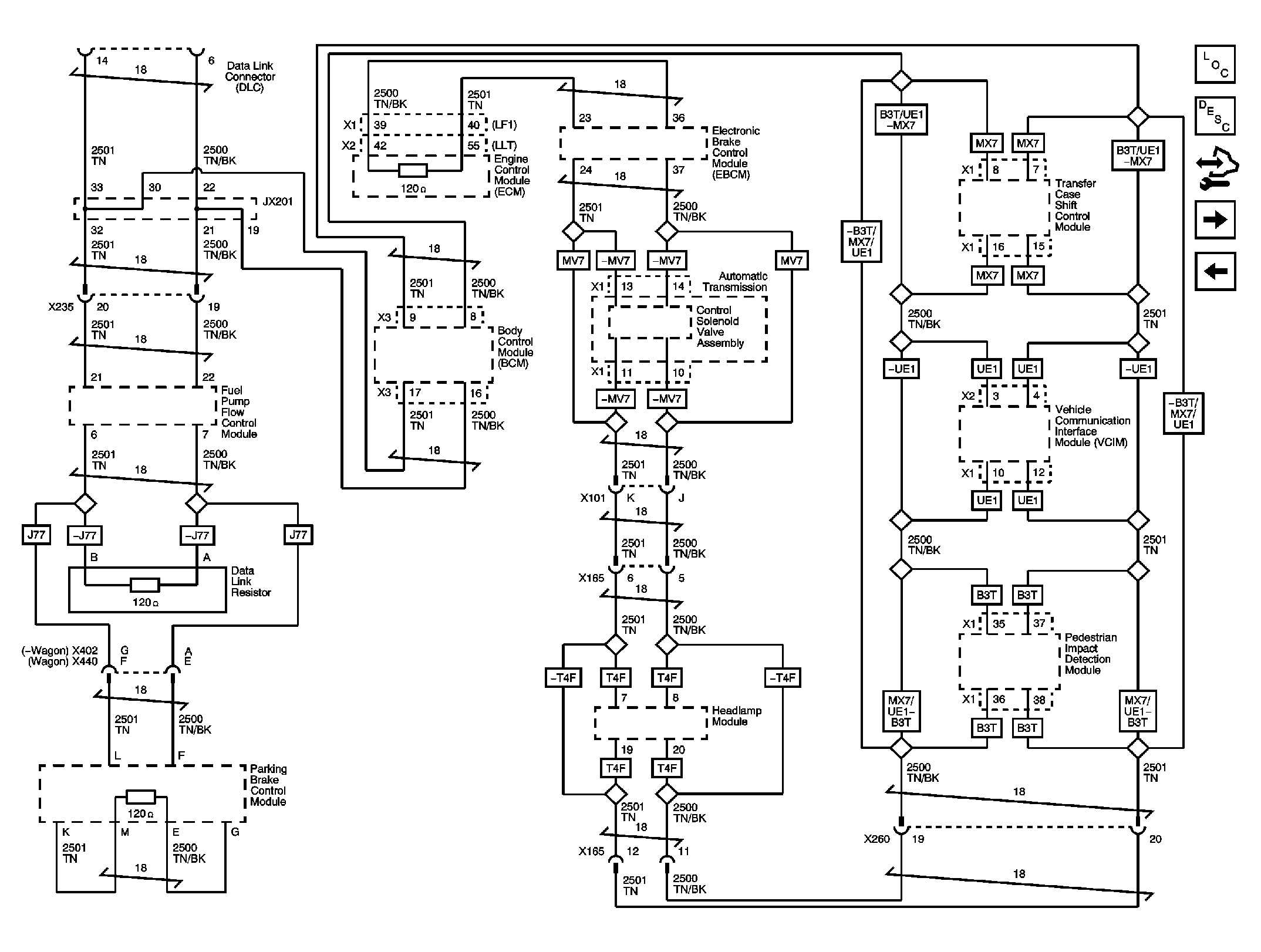

Fig 4: High Speed GMLAN (LF1 or LLT) Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

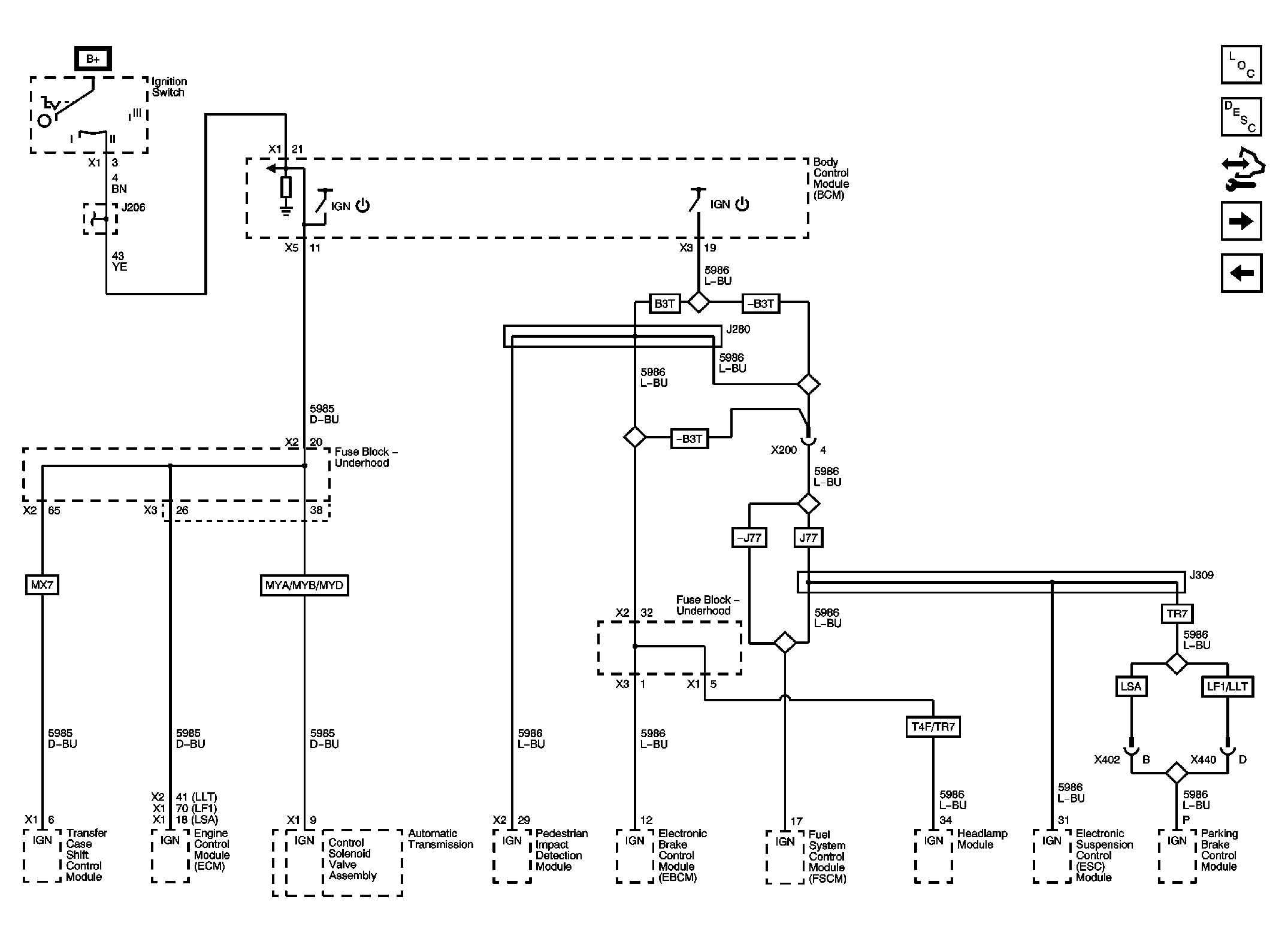

Fig 5: Communications Enable Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
