Fuel Pump Flow Control Module Replacement (Wagon)

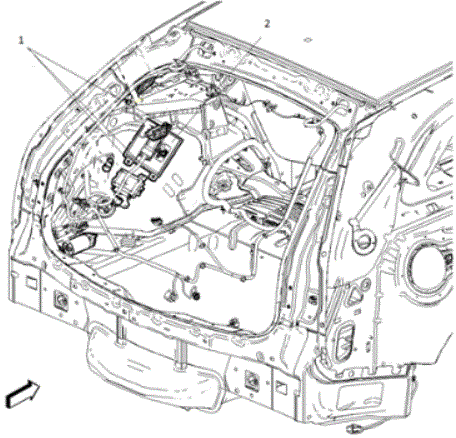

Fig 1: Fuel Pump Flow Control Module (Wagon)
G00670893Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear compartment stowage cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement (Wagon) .
1 Fuel Pump Flow Control Module Fastener (Qty 3)
CAUTION: Refer to FASTENER CAUTION .

Tighten:  9 N.m (80 lb in)
2 Fuel Pump Flow Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the control module. Refer to SERVICE PROGRAMMING SYSTEM (SPS) .
