Remote Function Wiring Schematics

Fig 1: Garage Door Opener Wiring Schematic (UG1)
GM2387297Courtesy of GENERAL MOTORS CORP.
Fig 2: Keyless Entry Wiring Schematic (without BTM)
GM2387299Courtesy of GENERAL MOTORS CORP.

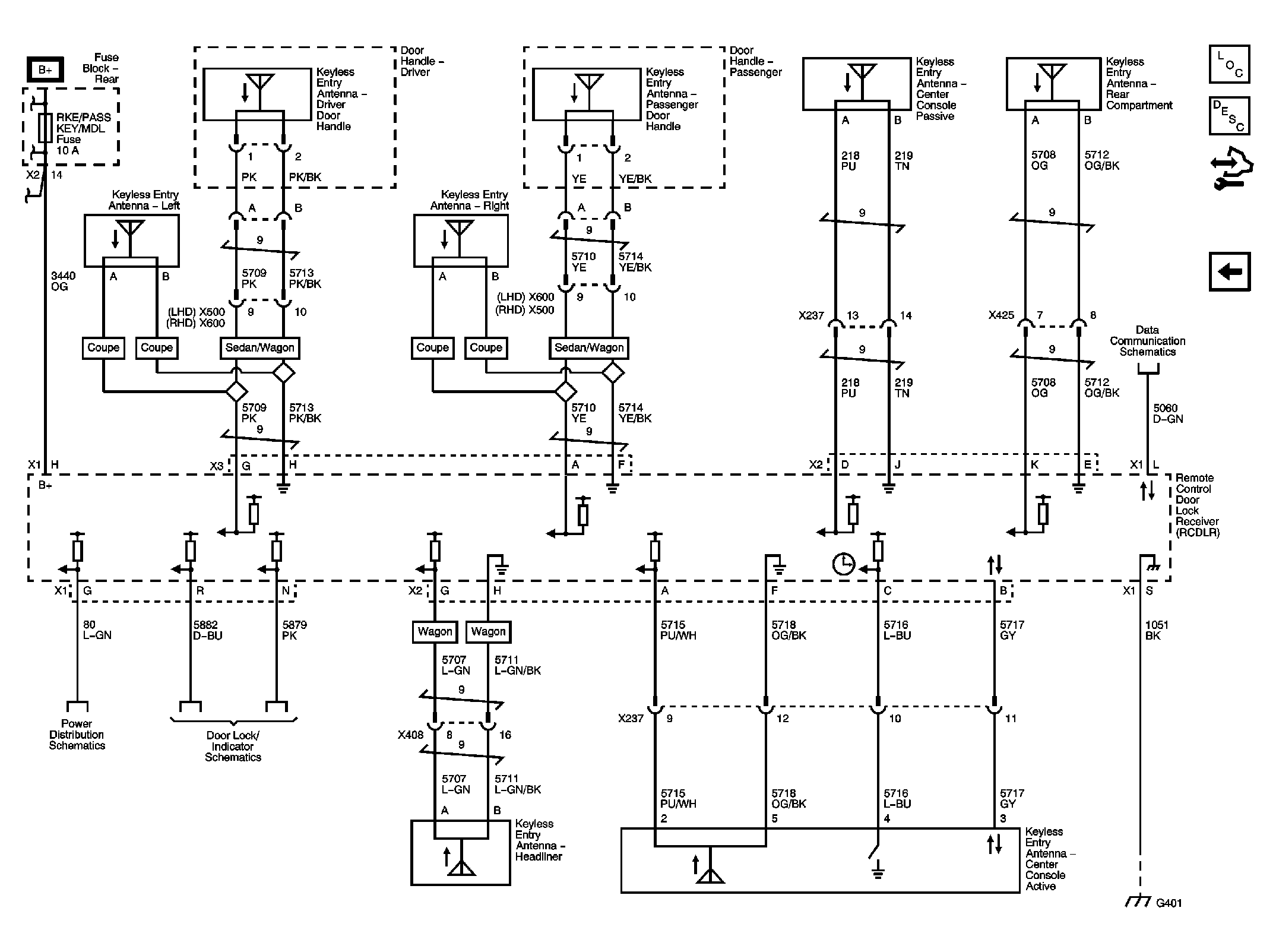

Fig 3: Easy Keyless Entry Wiring Schematic (BTM)
GM2387300Courtesy of GENERAL MOTORS CORP.
