Radio/Navigation System Wiring Schematics

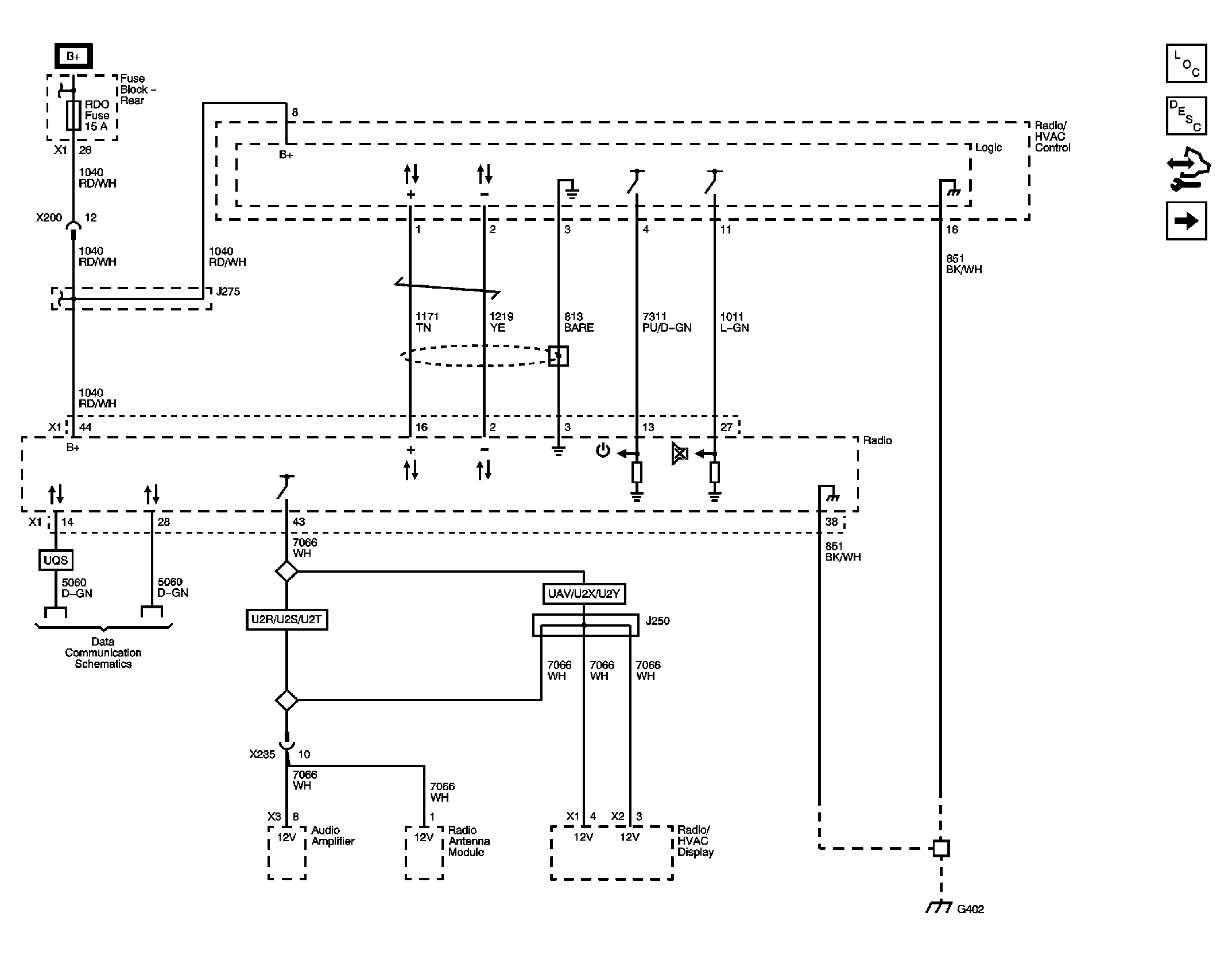

Fig 1: Radio And Radio/HVAC Control Power, Ground And Communication And Remote Enable Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

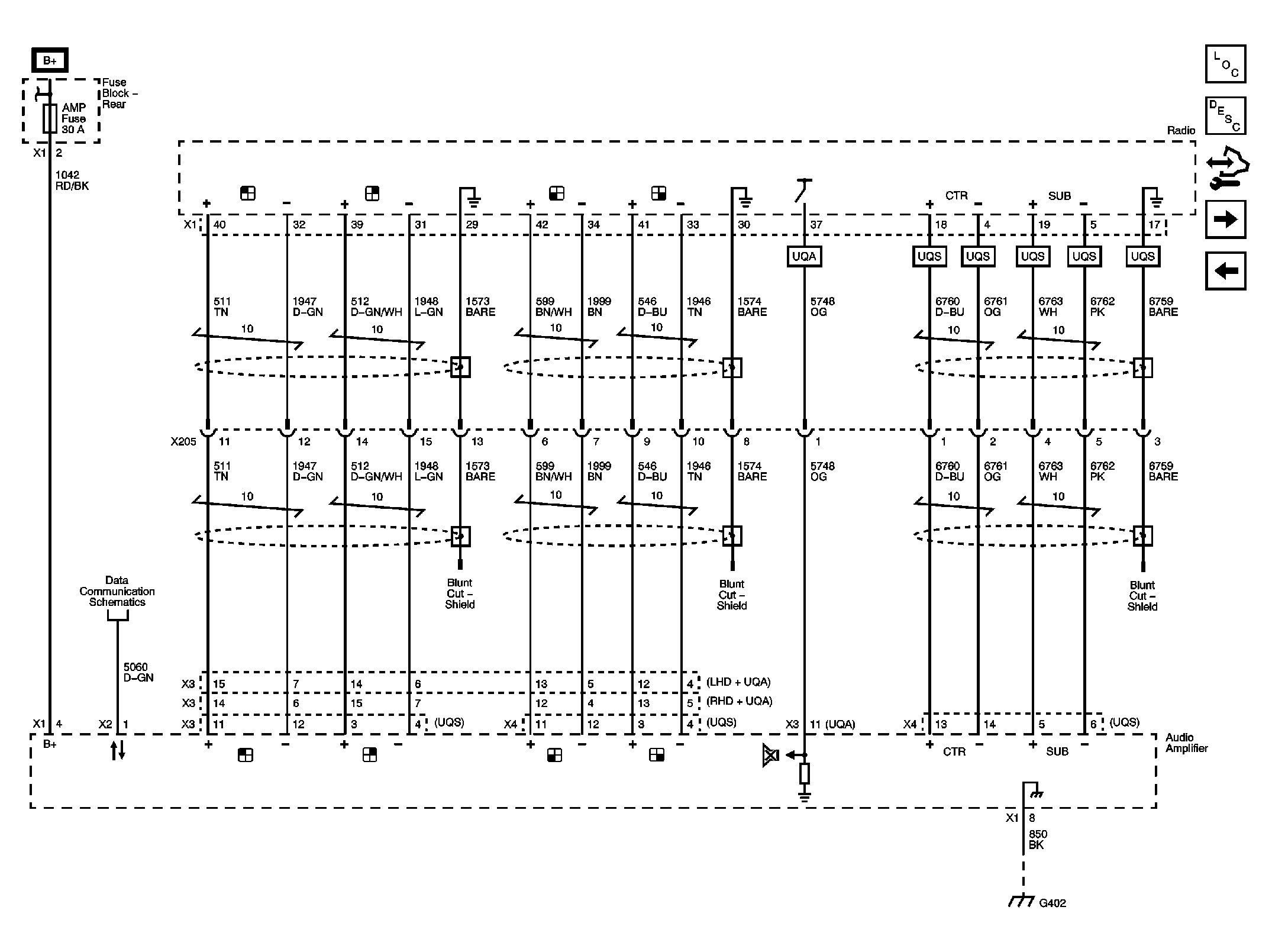

Fig 2: Amplifier Power, Ground, Communication And Inputs Wiring Schematic (UQA or UQS)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Front Speakers Wiring Schematic (Sedan or Coupe with UQA)

Courtesy of GENERAL MOTORS CORP.

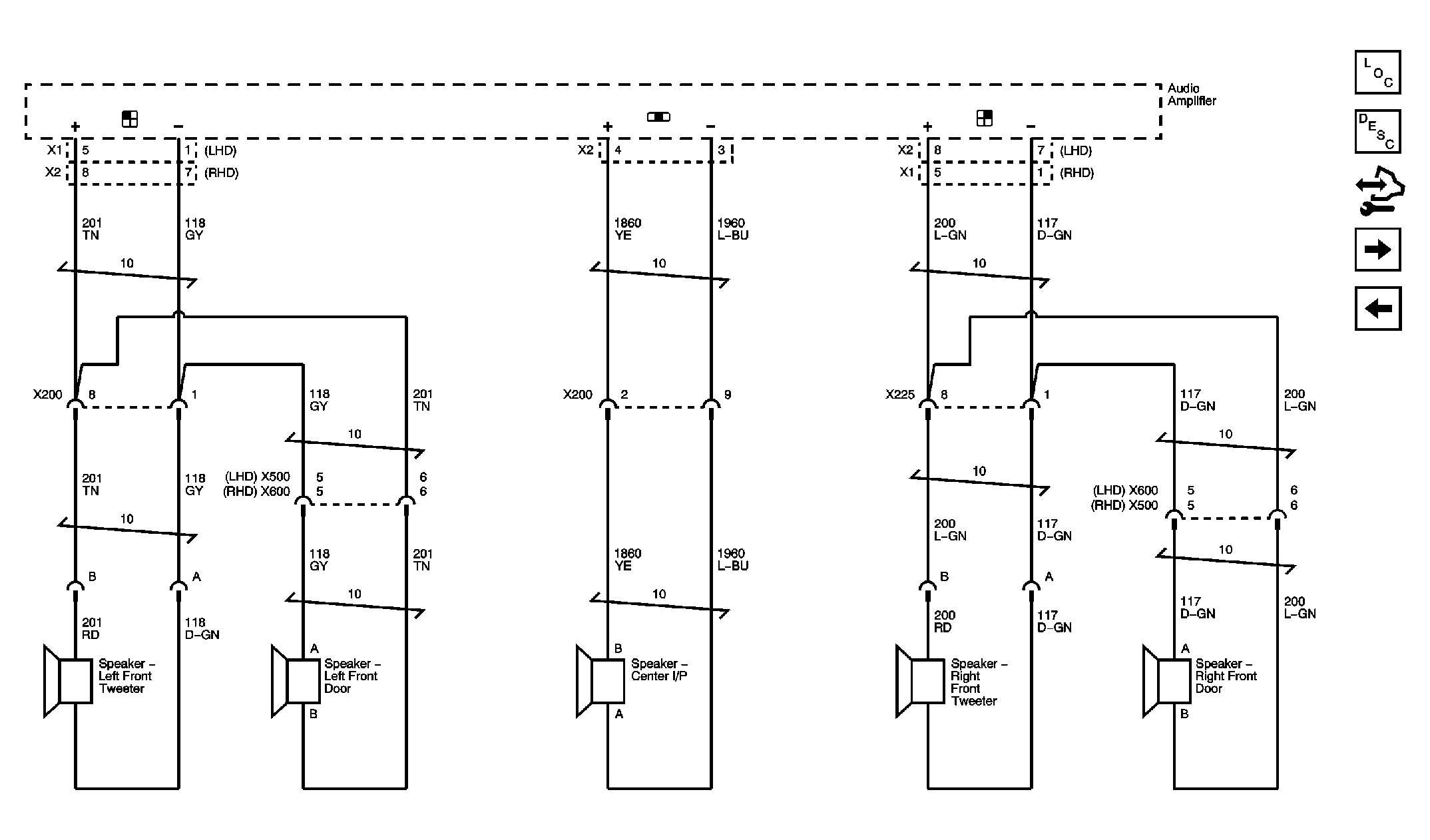

Fig 4: Front Speakers Wiring Schematic (Wagon with UQA)

Courtesy of GENERAL MOTORS CORP.

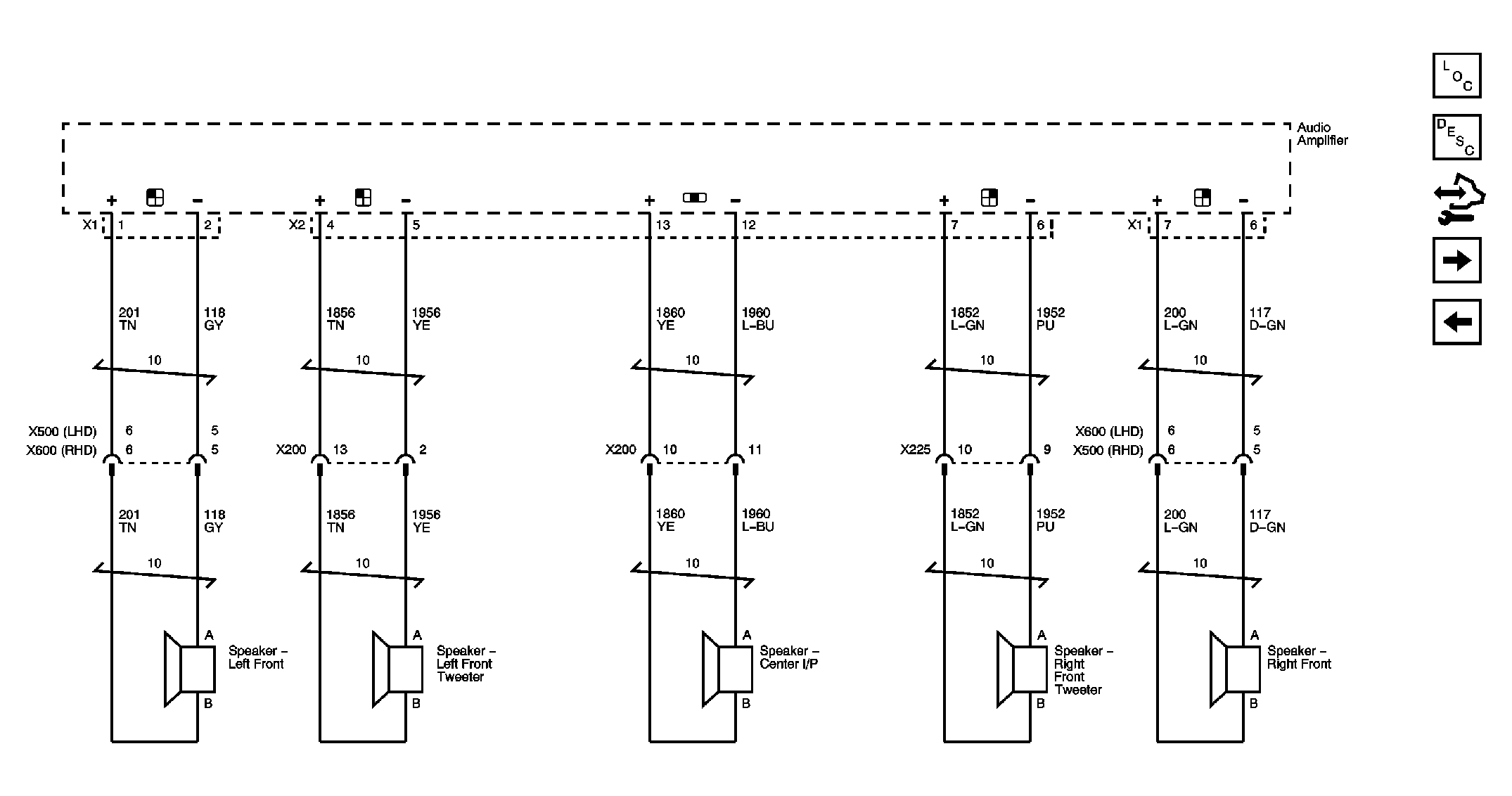

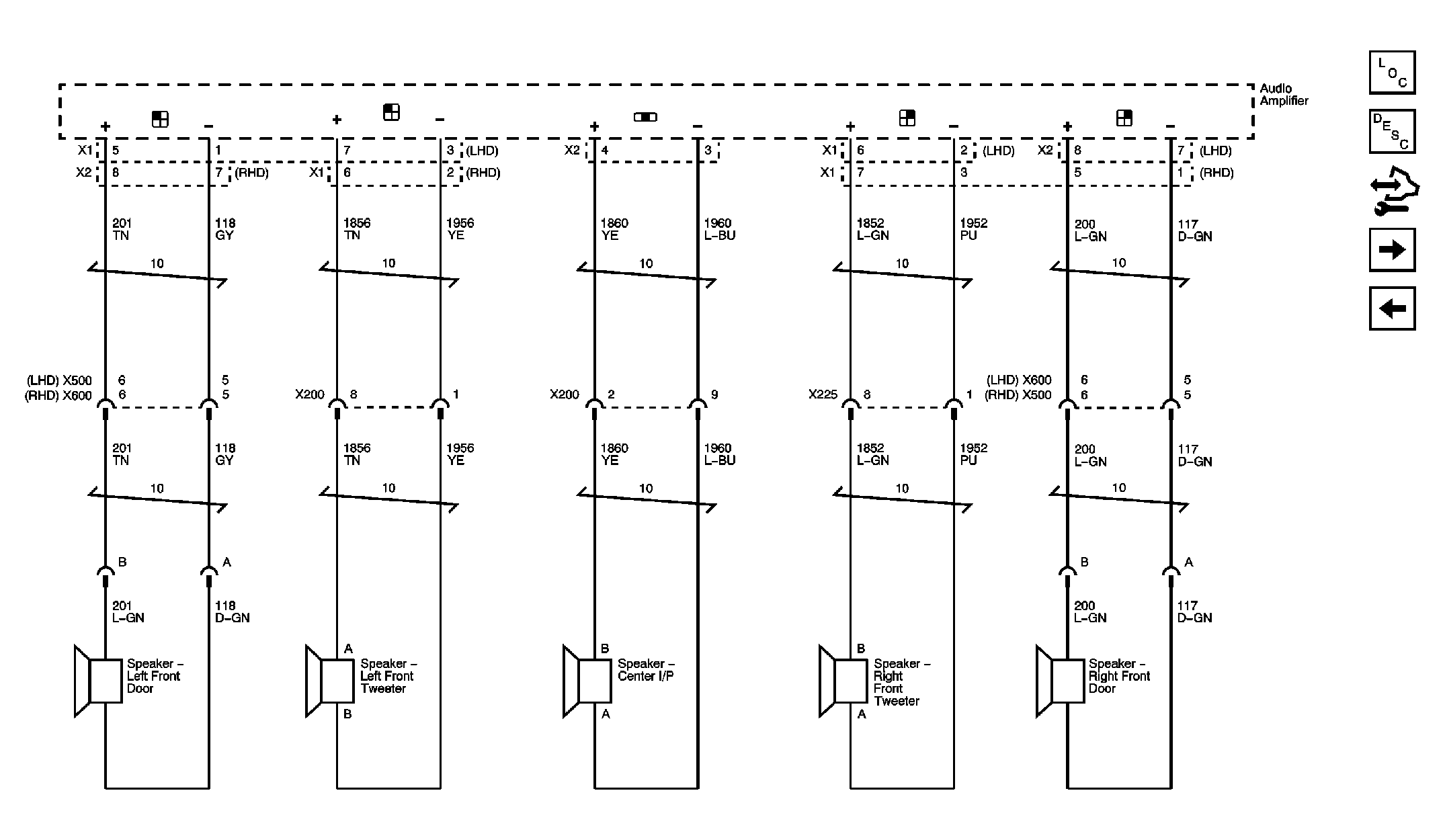

Fig 5: Front Speakers Wiring Schematic (UQS)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Speakers Wiring Schematic (Sedan or Wagon with UQA)

Courtesy of GENERAL MOTORS CORP.

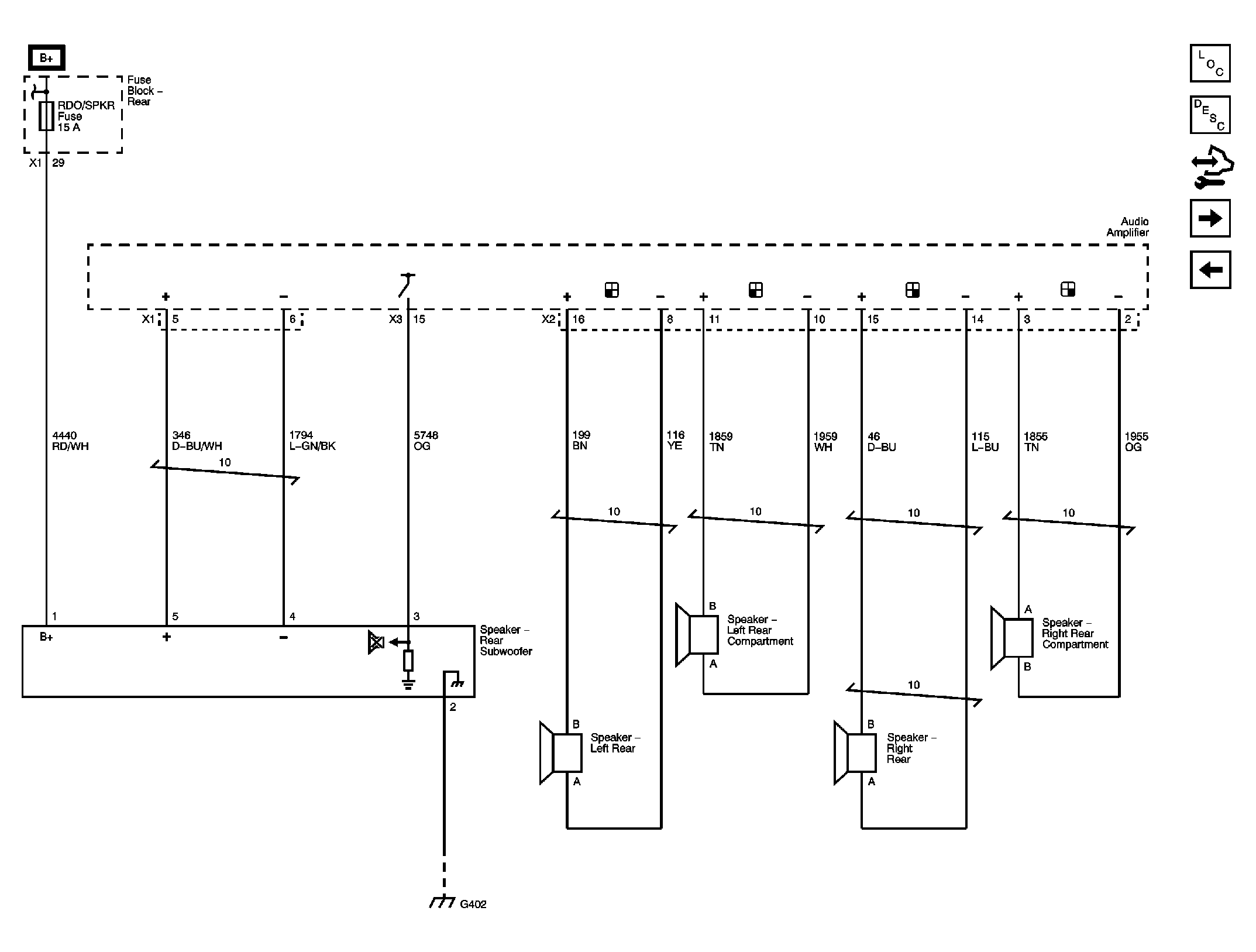

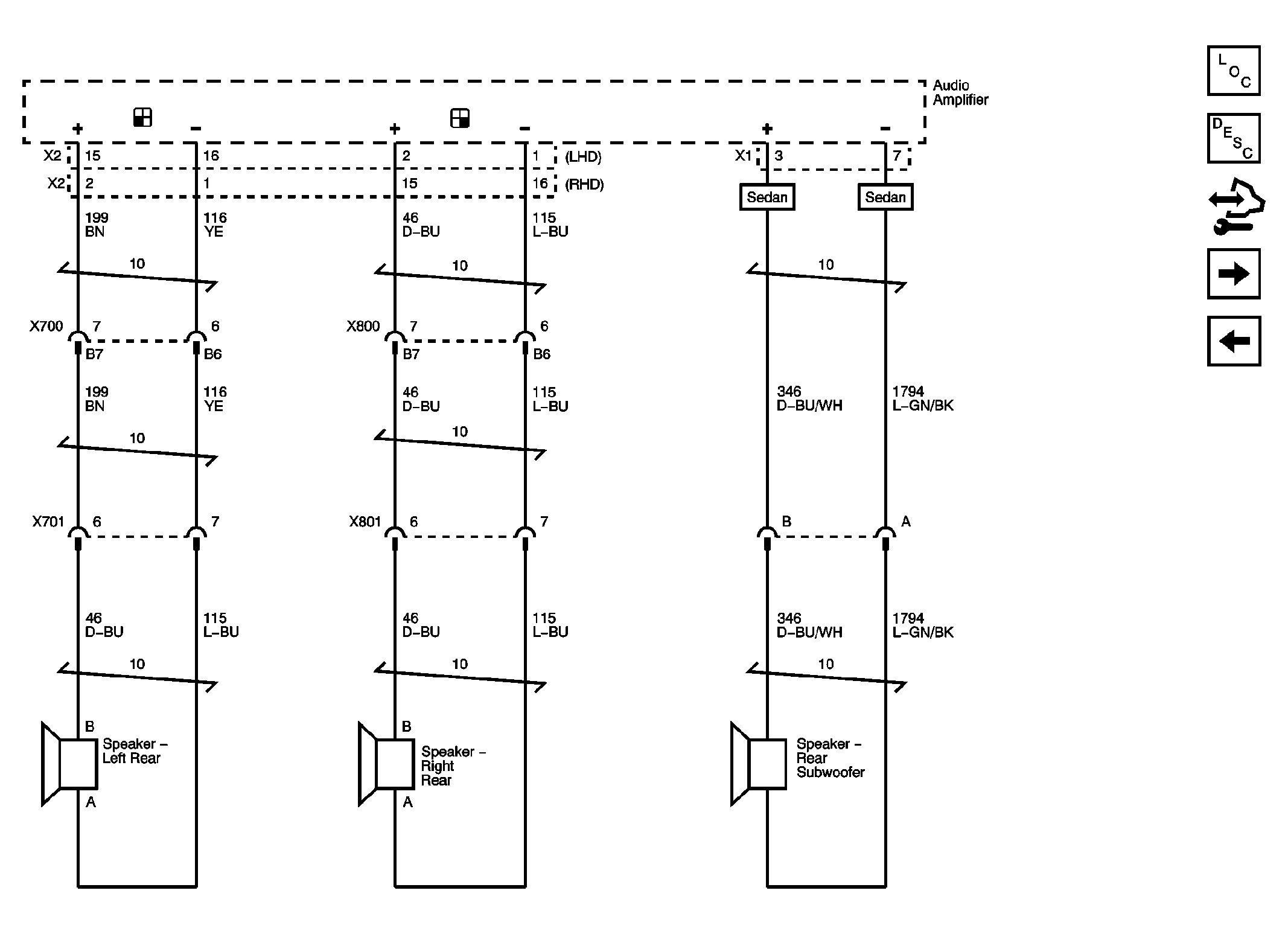

Fig 7: Rear Speakers Wiring Schematic (Sedan or Wagon with UQS)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Rear Speakers Wiring Schematic (Coupe with UQA)

Courtesy of GENERAL MOTORS CORP.

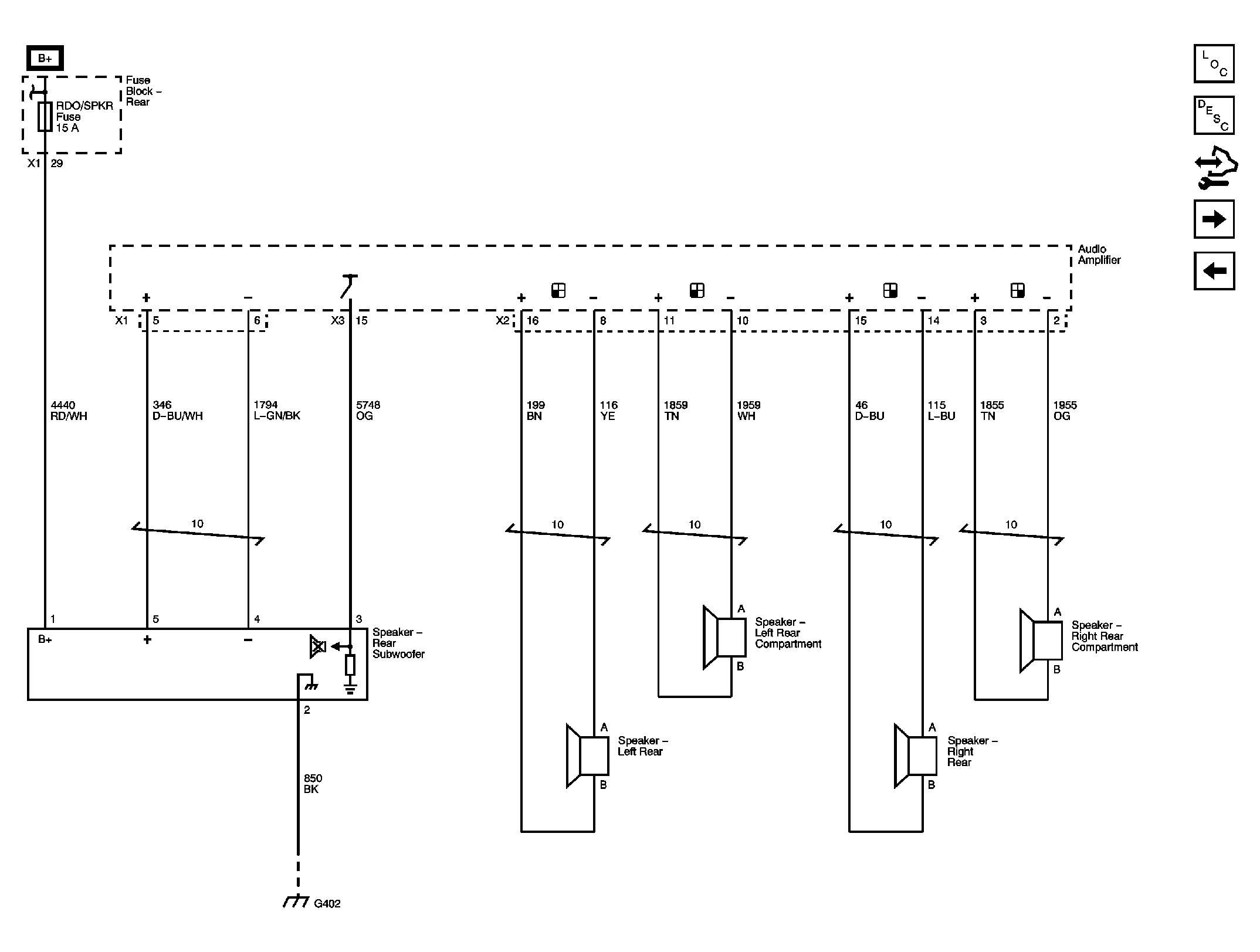

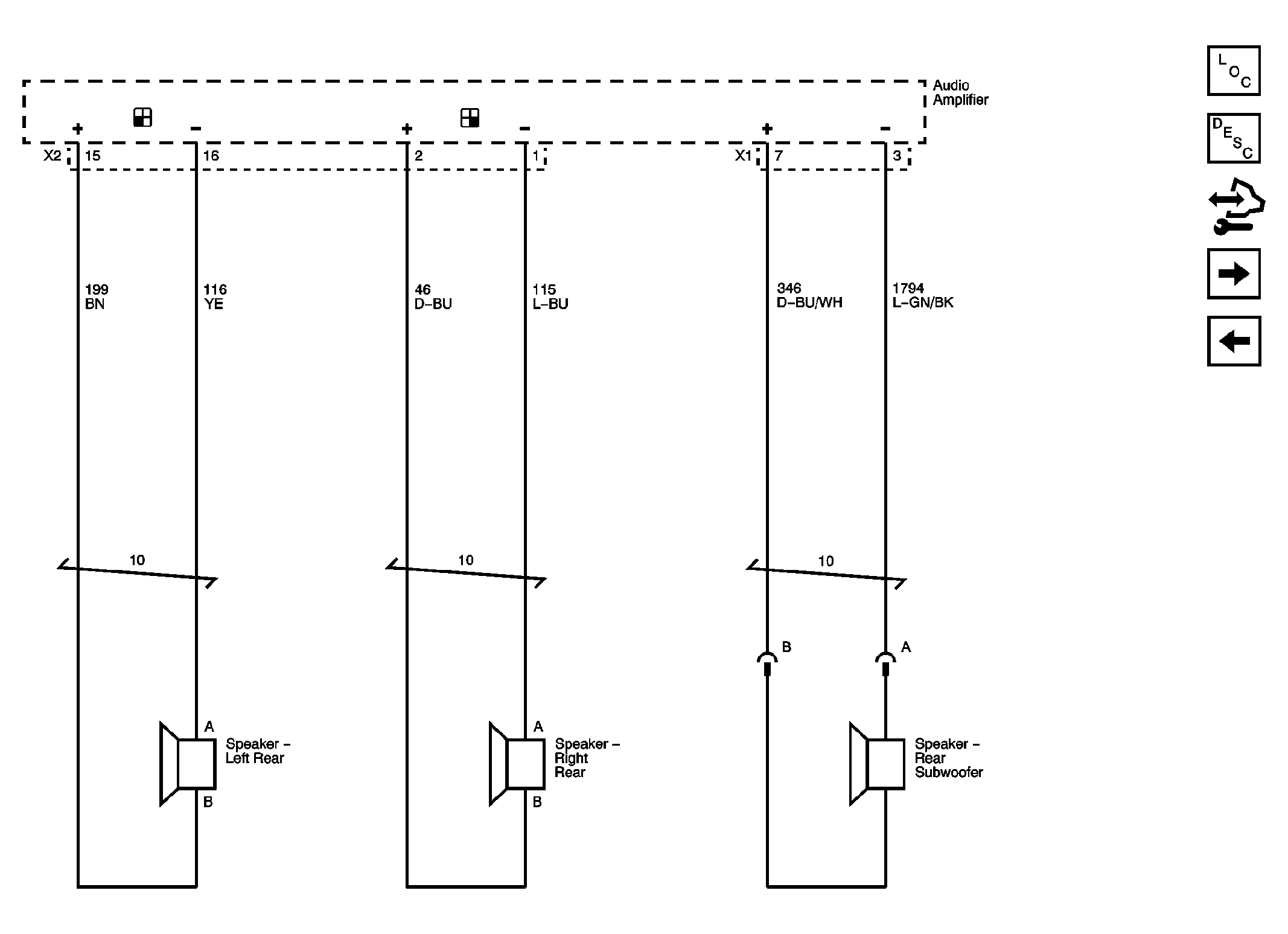

Fig 9: Rear Speakers Wiring Schematic (Coupe with UQS)

Courtesy of GENERAL MOTORS CORP.

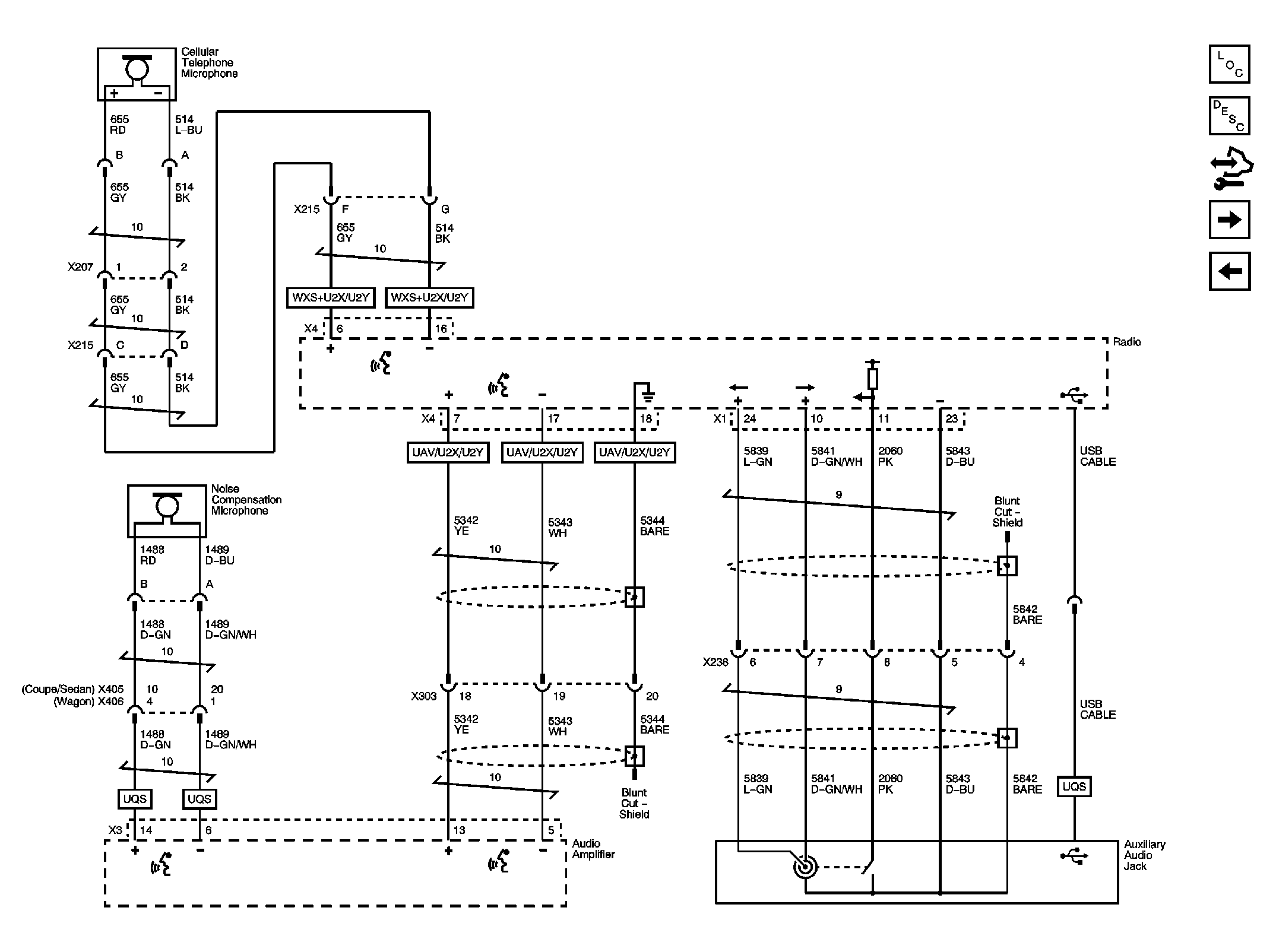

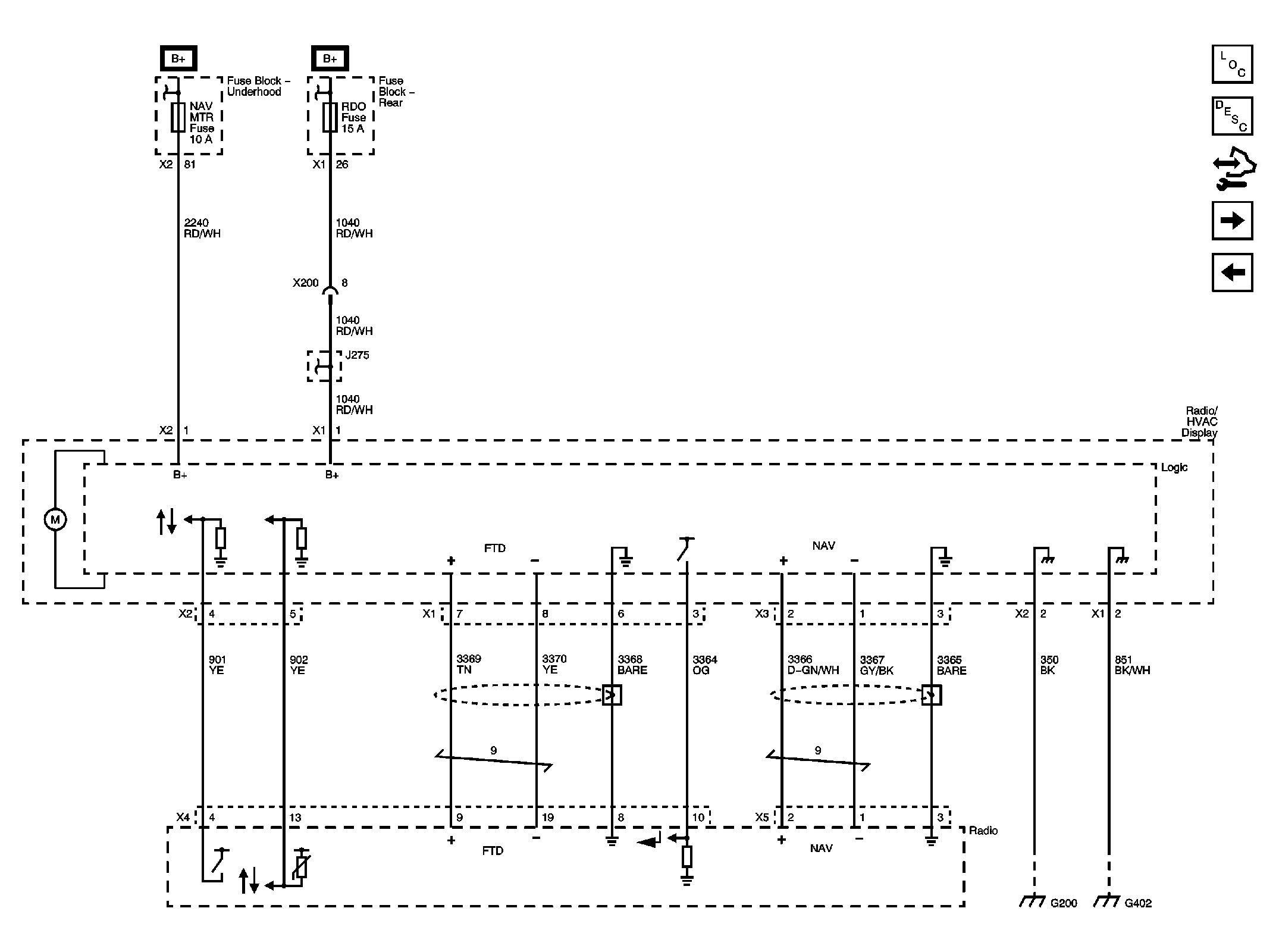

Fig 10: Microphones, Navigation Audio Signals AndAuxiliary Audio Jack Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

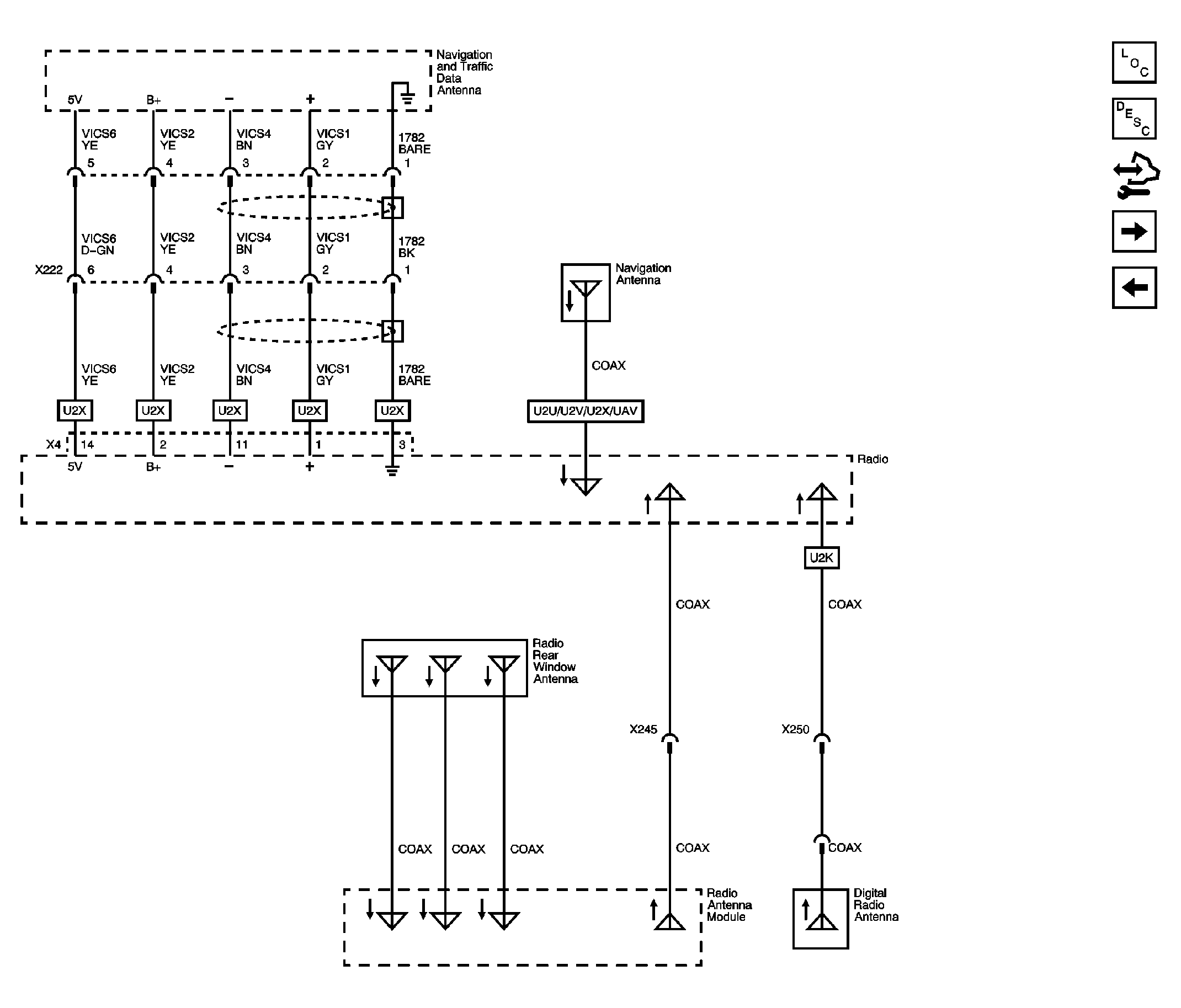

Fig 11: Antenna Signals Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Radio/HVAC Display Wiring Schematic (UAV or U2X or U2Y)

Courtesy of GENERAL MOTORS CORP.

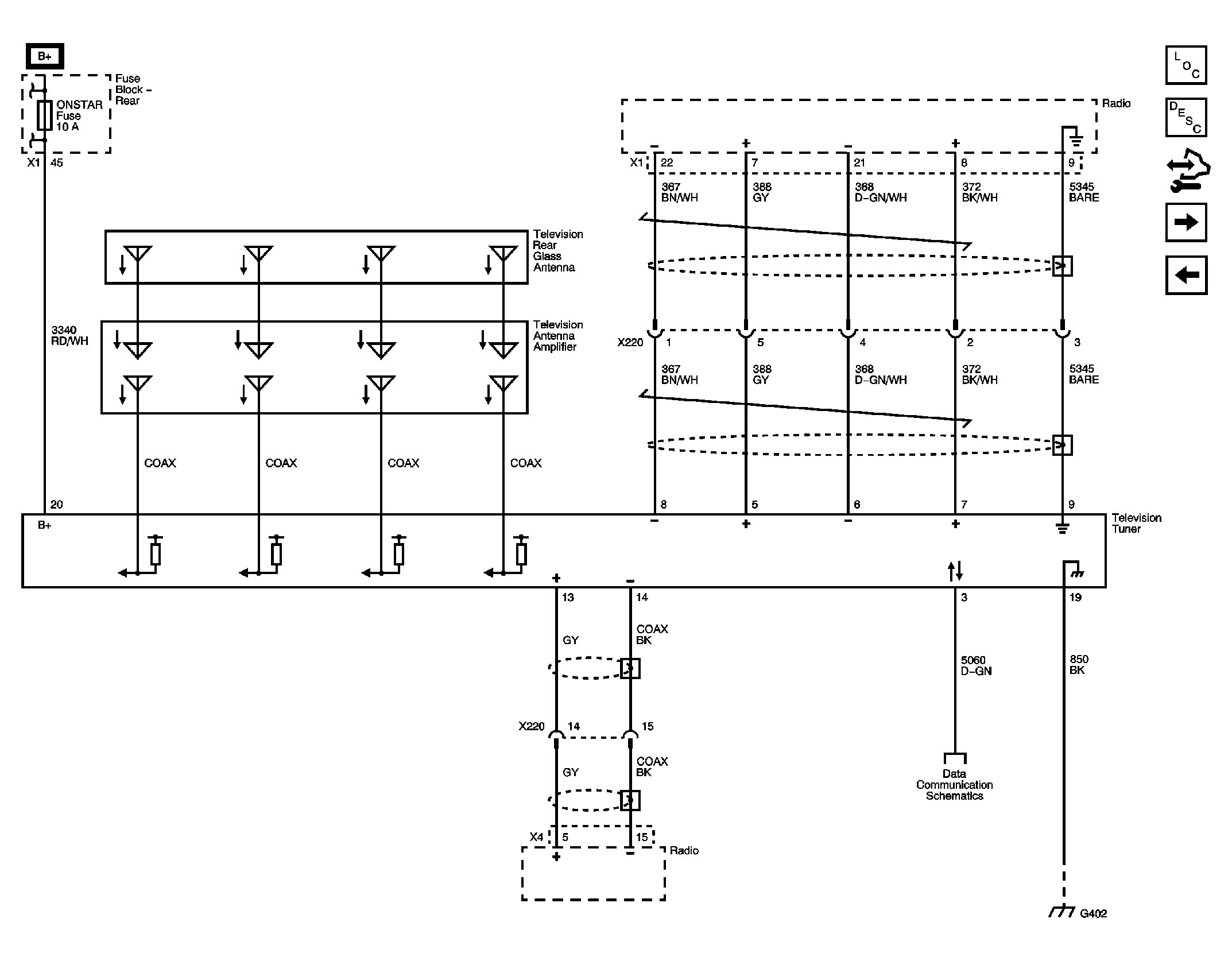

Fig 13: TV Tuner Wiring Schematic (U2X or U2Y)

Courtesy of GENERAL MOTORS CORP.

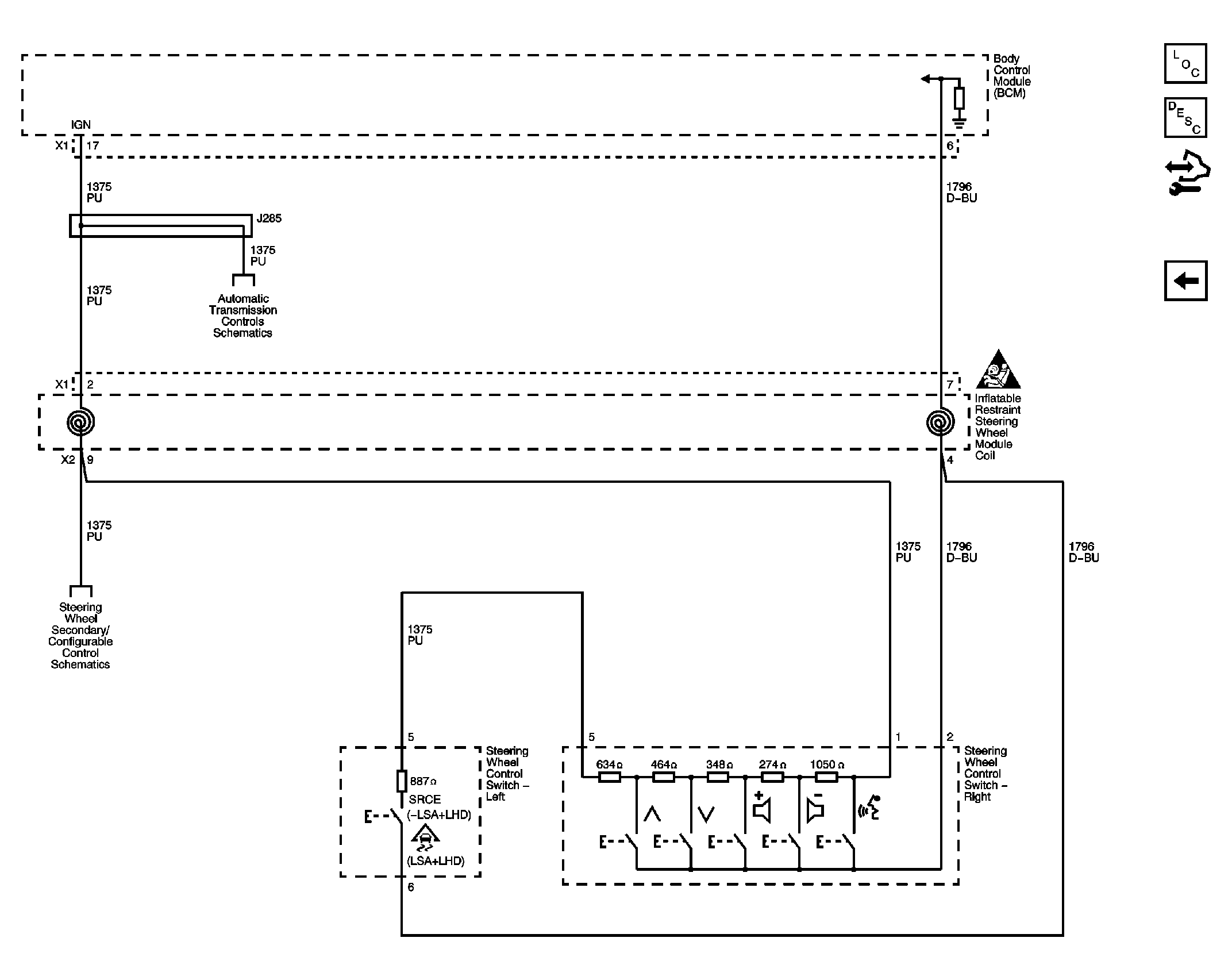

Fig 14: Secondary Controls Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
