Powertrain Component Views

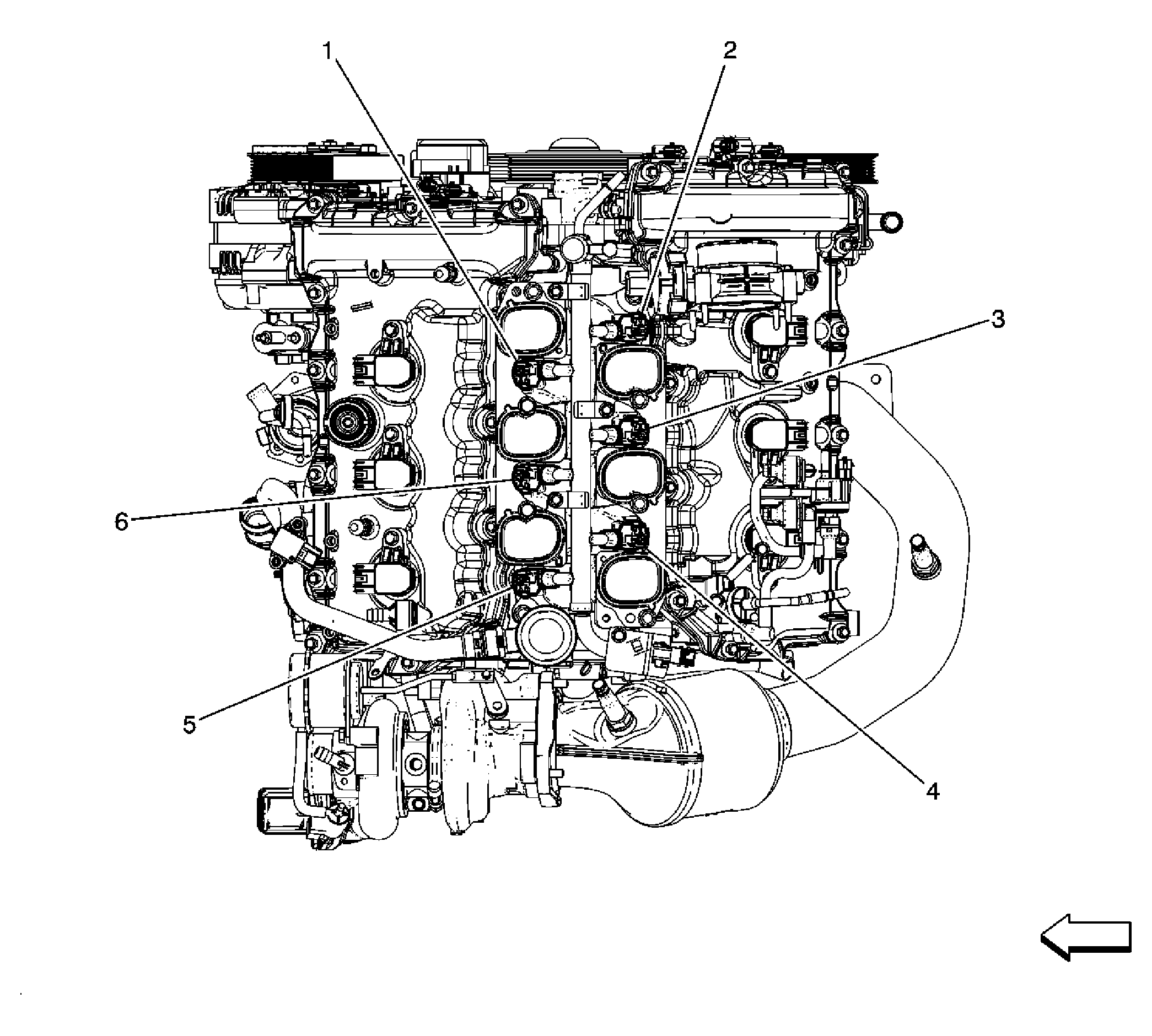

Fig 1: Identifying Top Of Engine Components (LAU)
GM2296895Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Q17B Fuel Injector 2
2 Q17A Fuel Injector 1
3 Q17C Fuel Injector 3
4 Q17E Fuel Injector 5
5 Q17F Fuel Injector 6
6 Q17D Fuel Injector 4
Fig 2: Identifying Top Of Engine Components (LF1)
GM2293971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Q18B Fuel Injector 2
2 Q17A Fuel Injector 1
3 Q17C Fuel Injector 3
4 Q17E Fuel Injector 5
5 Q17F Fuel Injector 6
6 Q17D Fuel Injector 4

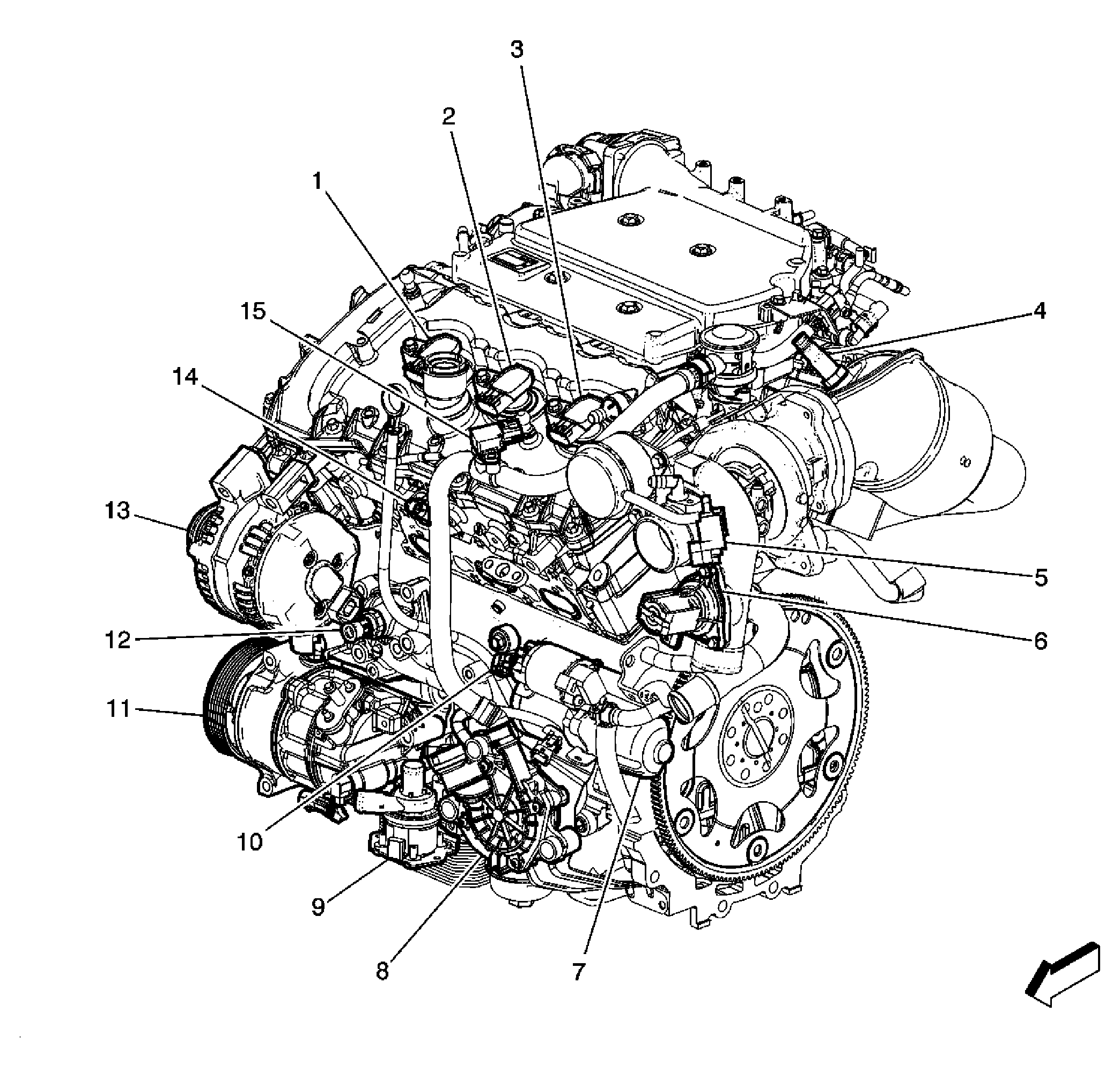

Fig 3: Identifying Front Of Engine Components (LAU)
GM2296889Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 T8B Ignition Coil 2
2 T8D Ignition Coil 4
3 T8F Ignition Coil 6
4 B52A Heated Oxygen Sensor 1
5 Q42 Turbocharger Wastegate Solenoid Valve
6 Q40 Turbocharger Bypass Solenoid Valve
7 M64 Starter Motor
8 G21 Secondary Air Injection Pump
9 G8 Coolant Pump - Auxiliary
10 B68B Knock Sensor 2
11 G1 A/C Compressor
12 B37B Engine Oil Pressure Sensor
13 G13 Generator
14 B34 Engine Coolant Temperature Sensor
15 B157 Secondary Air Injection Pressure Sensor
Fig 4: Identifying Front Of Engine Components (LF1)
GM2293969Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 T8B Ignition Coil 2
2 T8D Ignition Coil 4
3 T8F Ignition Coil 6
4 G18 High Pressure Fuel Pump
5 B34 Engine Coolant Temperature Sensor
6 M64 Starter Motor
7 B68B Knock Sensor 2
8 B37 Engine Oil Pressure Switch
9 G1 A/C Compressor
10 G13 Generator

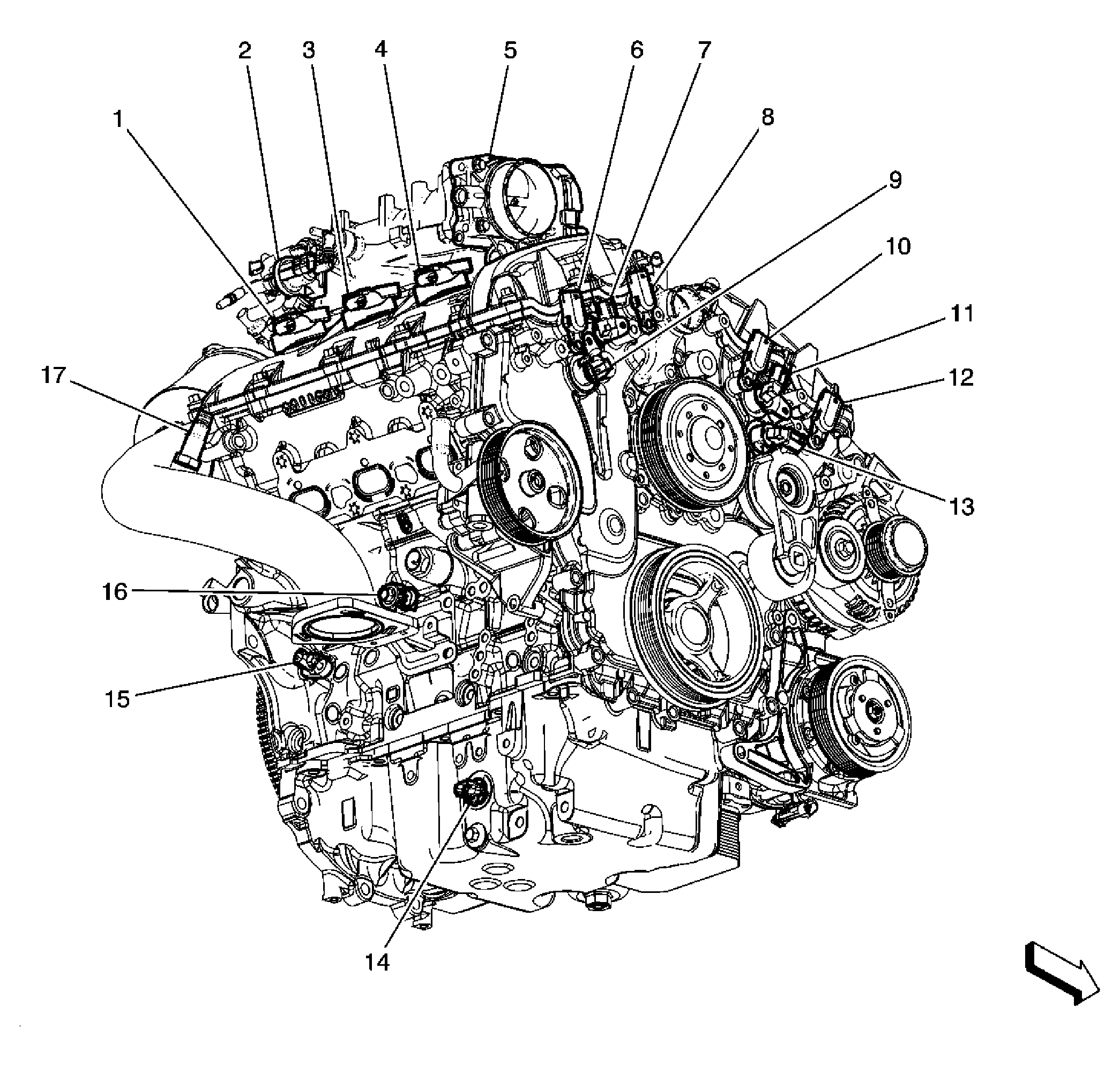

Fig 5: Identifying Right Side & Rear Of Engine Components (LAU)
GM2296867Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 T8E Ignition Coil 5
2 Q12 Evaporative Emission Purge Solenoid Valve
3 T4C Ignition Coil 3
4 T4A Ignition Coil 1
5 Q38 Throttle Body
6 B23A Camshaft Position Sensor - Bank 1 Exhaust
7 Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
8 B23B Camshaft Position Sensor - Bank 1 Intake
9 Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
10 B23D Camshaft Position Sensor - Bank 2 Intake
11 Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake
12 B23C Camshaft Position Sensor - Bank 2 Exhaust
13 Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust
14 B35 Engine Oil Level Switch
15 B26 Crankshaft Position Sensor
16 B68A Knock Sensor 1
17 B52B Heated Oxygen Sensor 2
Fig 6: Identifying Right Side & Rear Engine Components (LF1)
GM2293965Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G6 Brake Booster Pump - Auxiliary
2 T8E Ignition Coil 5
3 B74 Manifold Absolute Pressure Sensor
4 Q38 Throttle Body
5 B23D Camshaft Position Sensor - Bank 2 Intake
6 Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake
7 B23C Camshaft Position Sensor - Bank 2 Exhaust
8 Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust
9 B23B Camshaft Position Sensor - Bank 1 Intake
10 Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
11 Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
12 B23A Camshaft Position Sensor - Bank 1 Exhaust
13 B68A Knock Sensor 1
14 T8A Ignition Coil 1
15 B26 Crankshaft Position Sensor
16 Q12 Evaporative Emission Purge Solenoid Valve
17 T8C Ignition Coil 3
Fig 7: Identifying Front Of Exhaust System Components (LF1)
GM2296860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1
2 B52E Heated Oxygen Sensor - Bank 2 Sensor 1
3 B52F Heated Oxygen Sensor - Bank 2 Sensor 2
4 B52D Heated Oxygen Sensor - Bank 1 Sensor 2
Fig 8: Identifying Automatic Transmission Electronic Components (MH2 Or MH4)
GM1910851Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Q8 Control Solenoid Valve Assembly
2 B15 Transmission Internal Mode Switch
3 B14A Transmission Output Shaft Speed Sensor
4 B14C Transmission Input Shaft Speed Sensor
