Air Cleaner Element Replacement

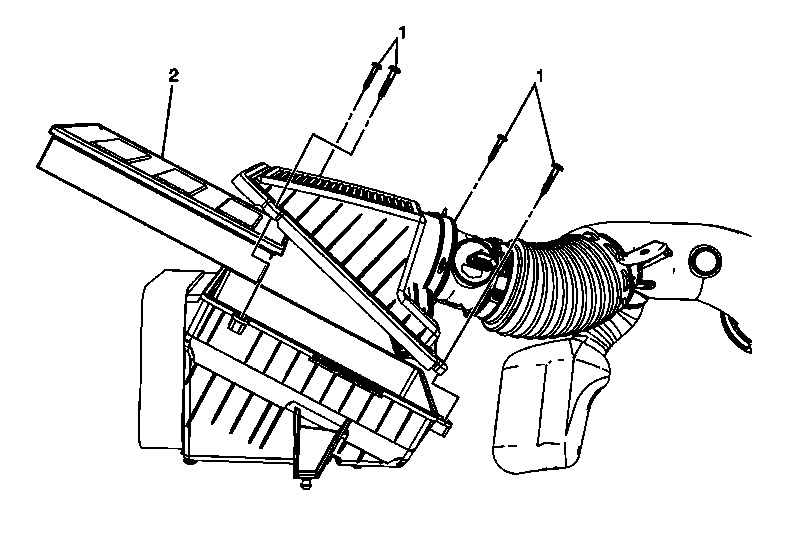

Fig 1: Identifying Air Cleaner Element
GM2184020Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Filter Housing Fastener (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  3 N.m(27 lb in)
2 Air Filter Element
