Moveable Window Schematics

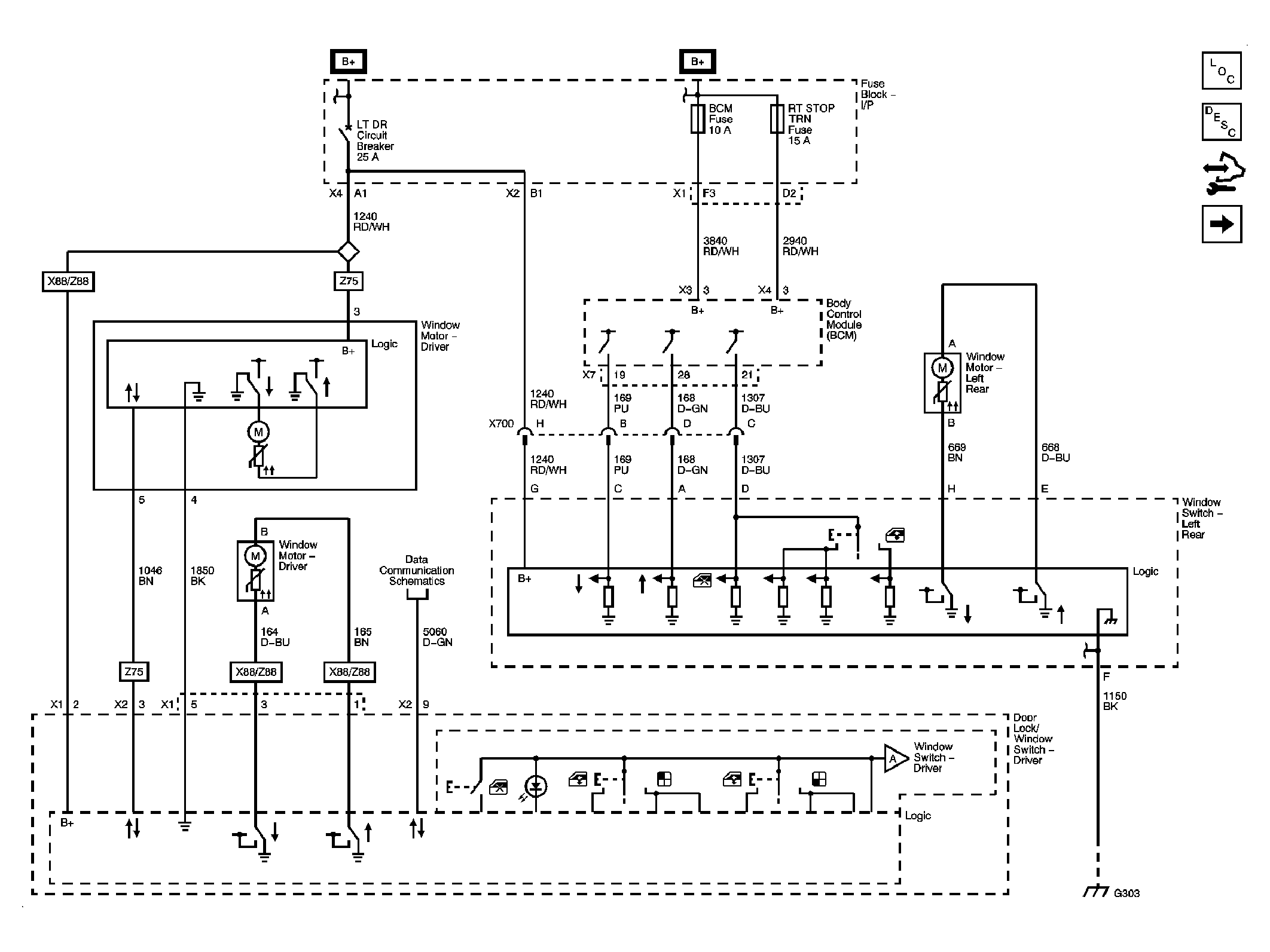

Fig 1: Left Moveable Window

GM2241526

Courtesy of GENERAL MOTORS CORP.

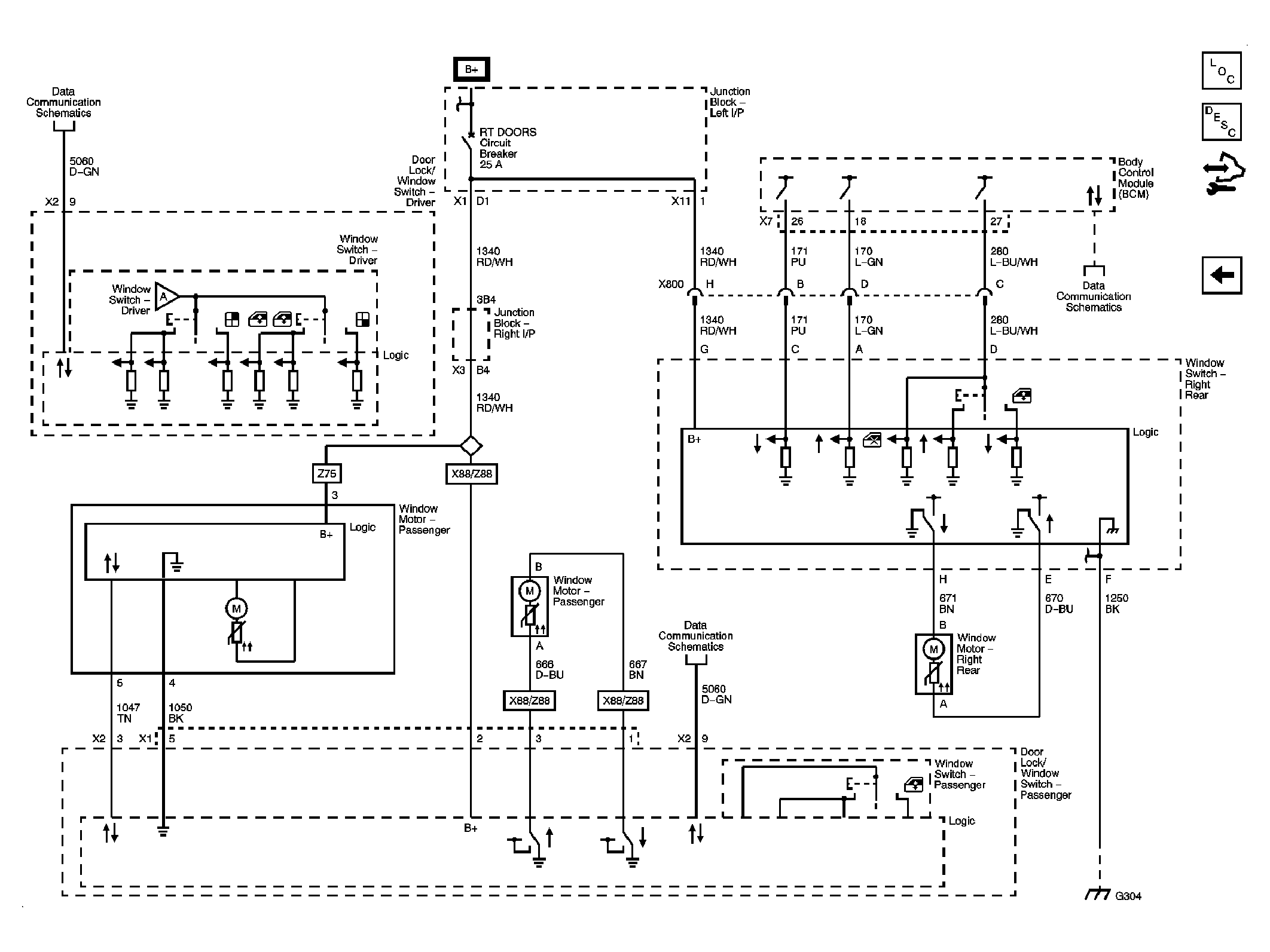

Fig 2: Right Moveable Window

GM2241528

Courtesy of GENERAL MOTORS CORP.
