Radio/Navigation System Schematics

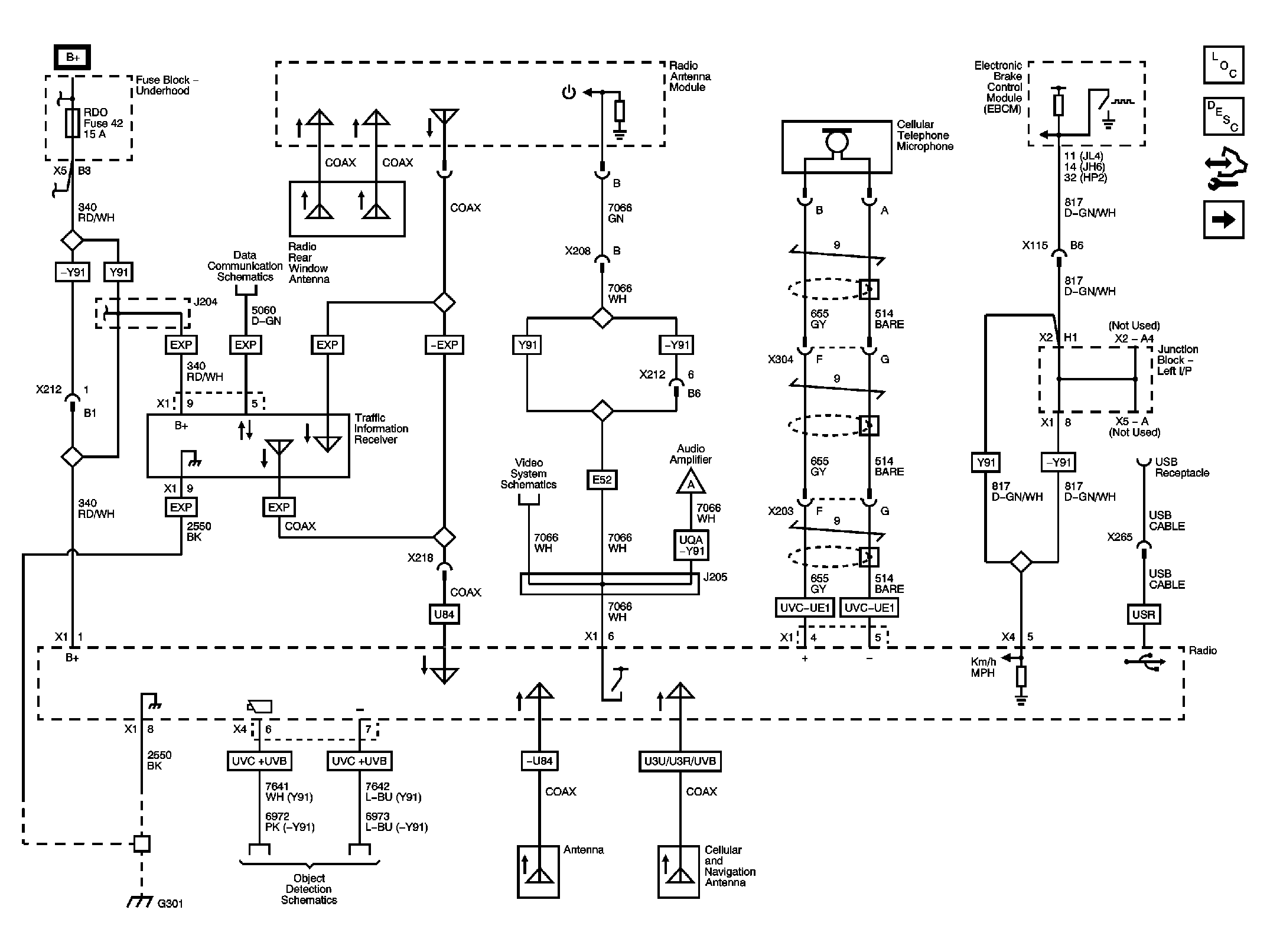

Fig 1: Radio Power, Ground, Serial Data, and Antenna Signals

Courtesy of GENERAL MOTORS CORP.

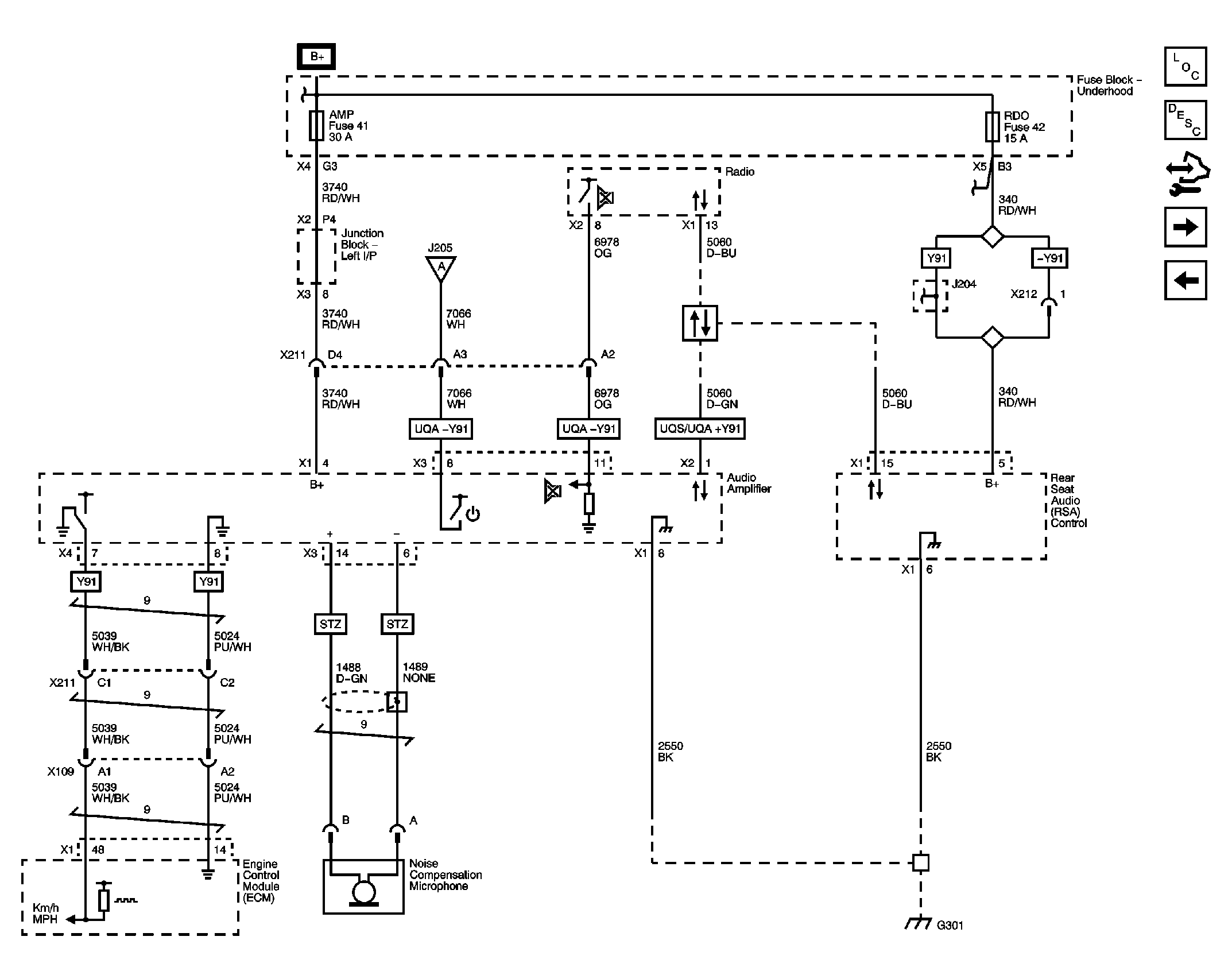

Fig 2: Amplifier (UQA/UQS) and Rear Seat Audio (UK6) Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

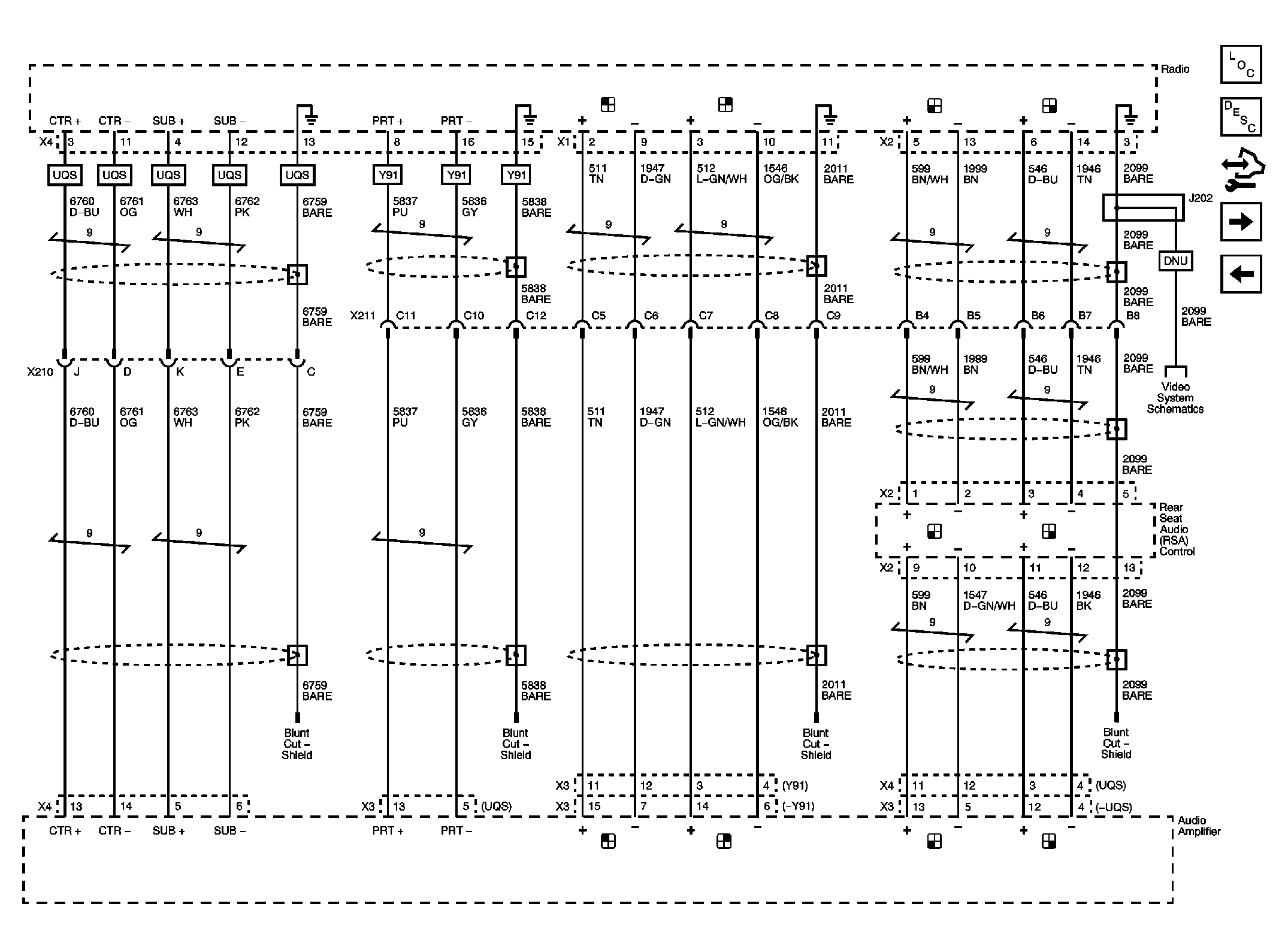

Fig 3: Amplifier Inputs (UQA or UQS)

Courtesy of GENERAL MOTORS CORP.

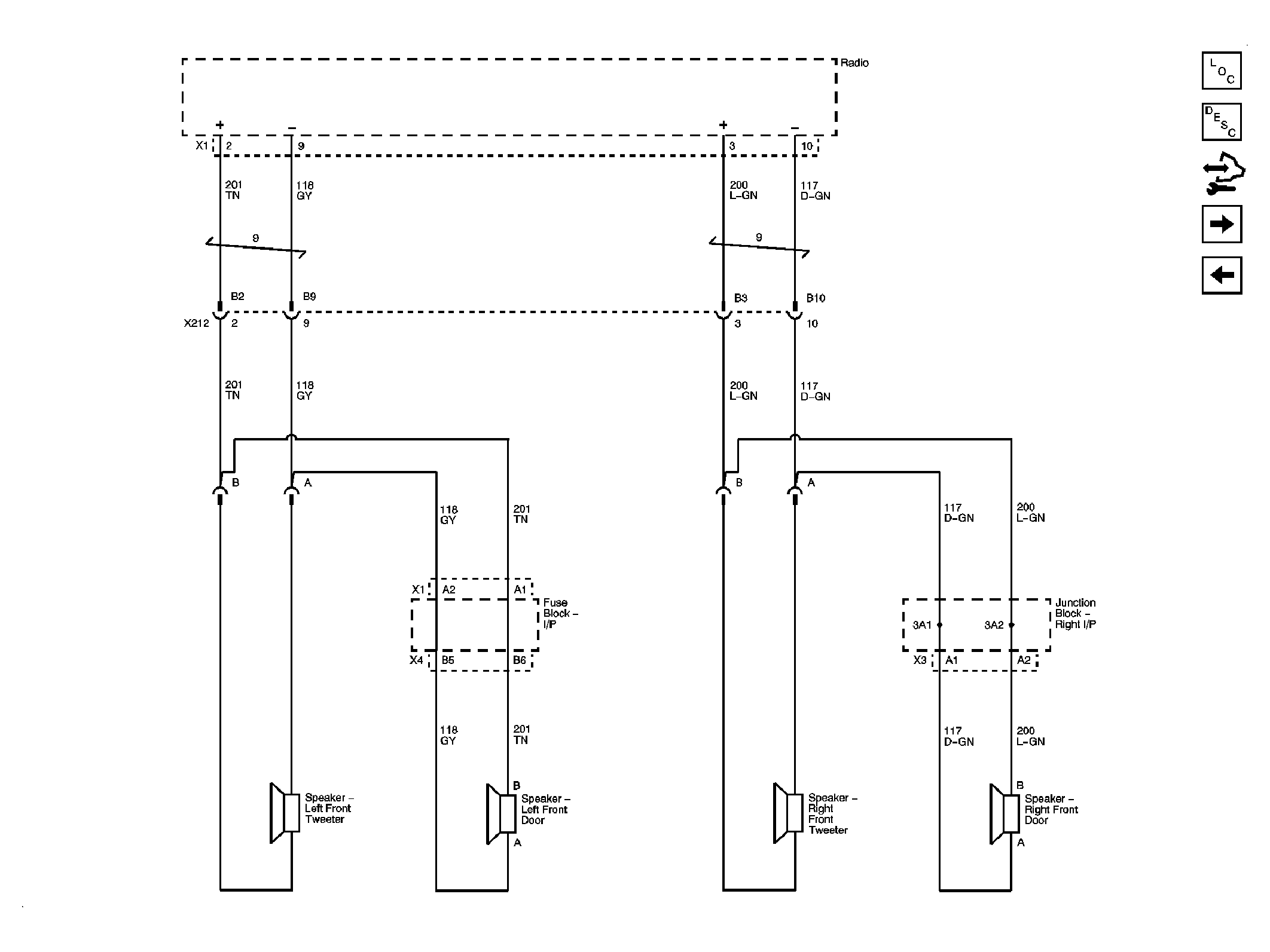

Fig 4: Front Speakers (UQ3)

Courtesy of GENERAL MOTORS CORP.

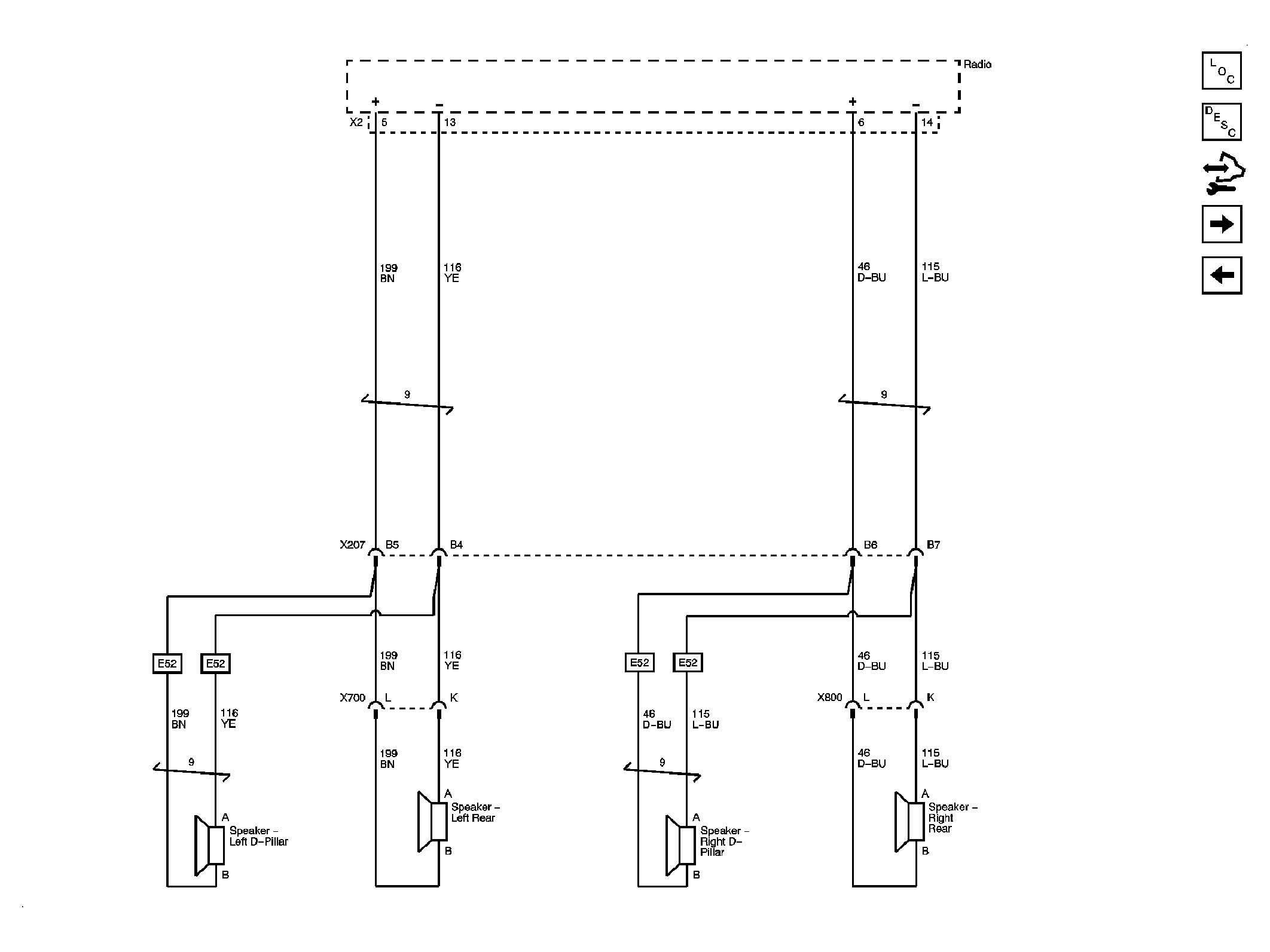

Fig 5: Rear Speakers (UQ3 without UK6)

Courtesy of GENERAL MOTORS CORP.

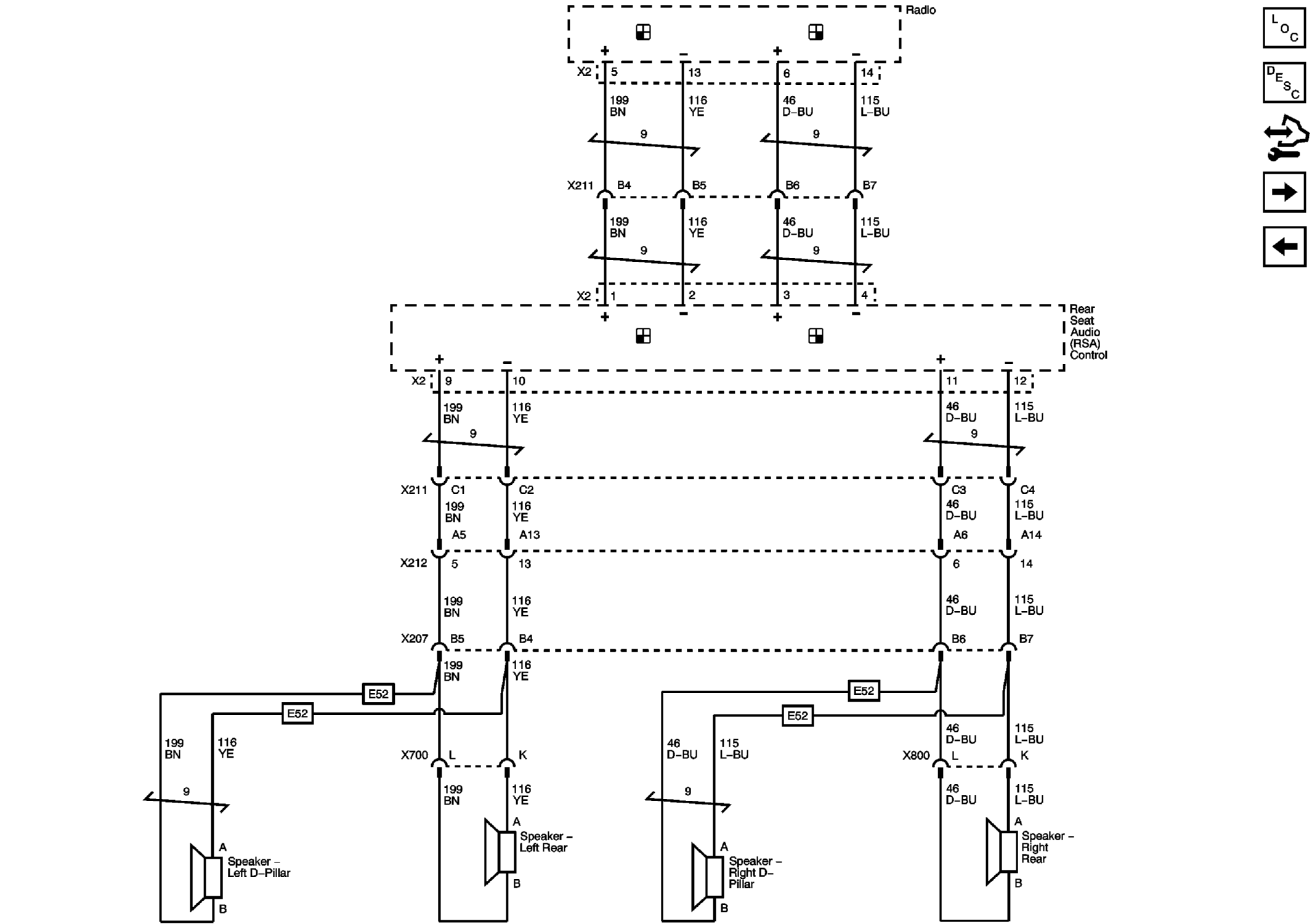

Fig 6: Rear Speakers (UQ3 with UK6)

Courtesy of GENERAL MOTORS CORP.

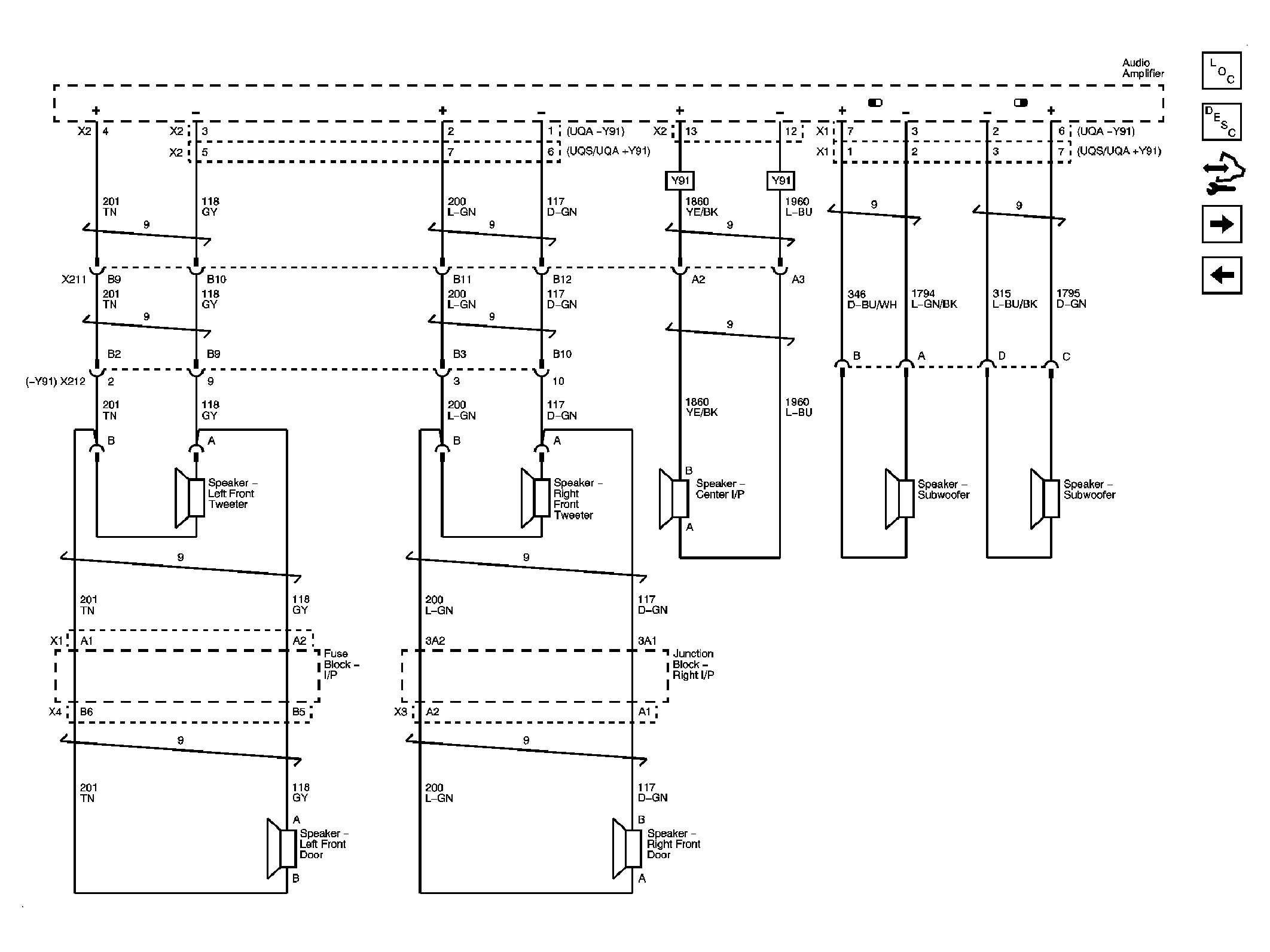

Fig 7: Front Speakers (UQA or UQS)

Courtesy of GENERAL MOTORS CORP.

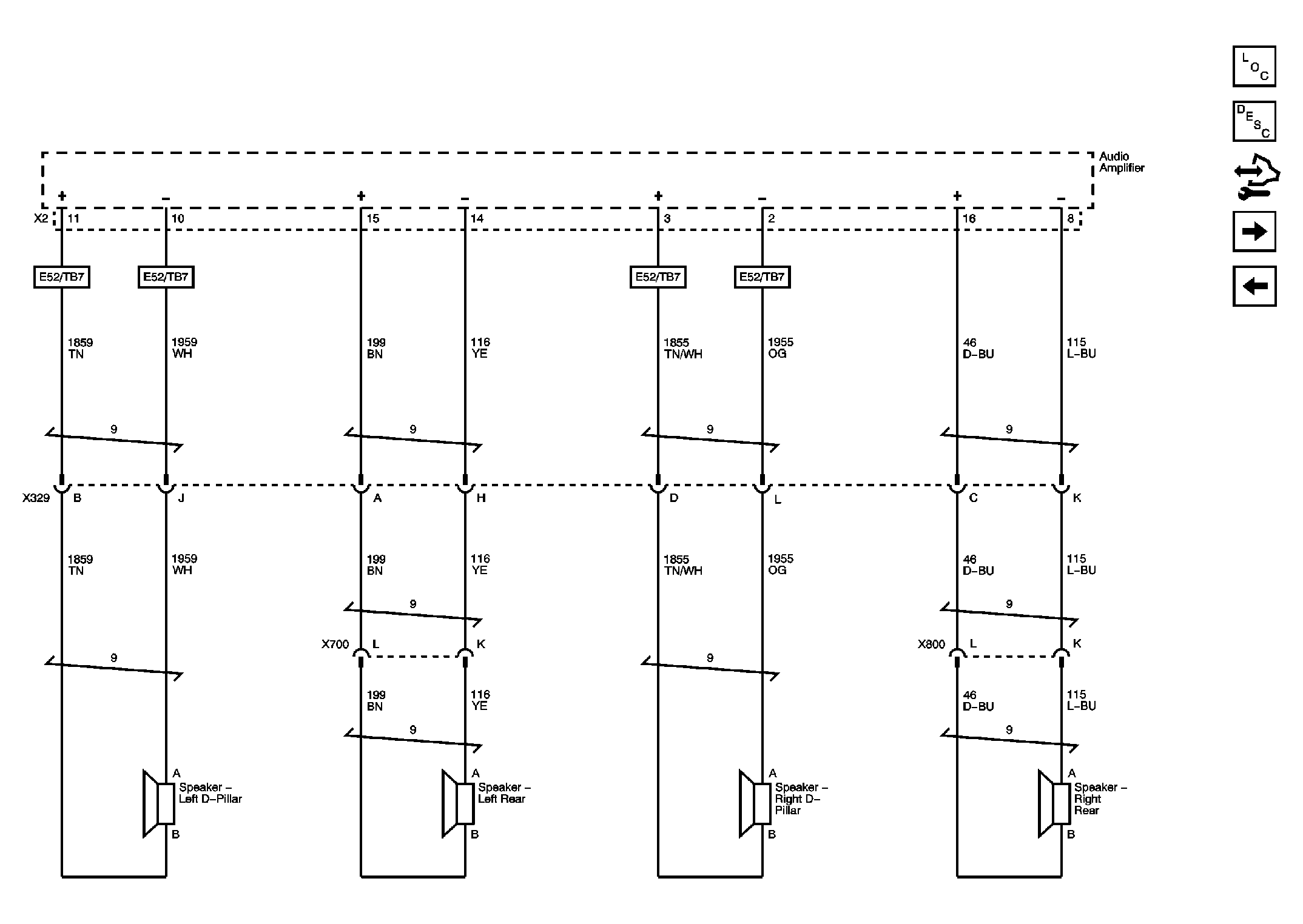

Fig 8: Rear Speakers (UQA)

Courtesy of GENERAL MOTORS CORP.

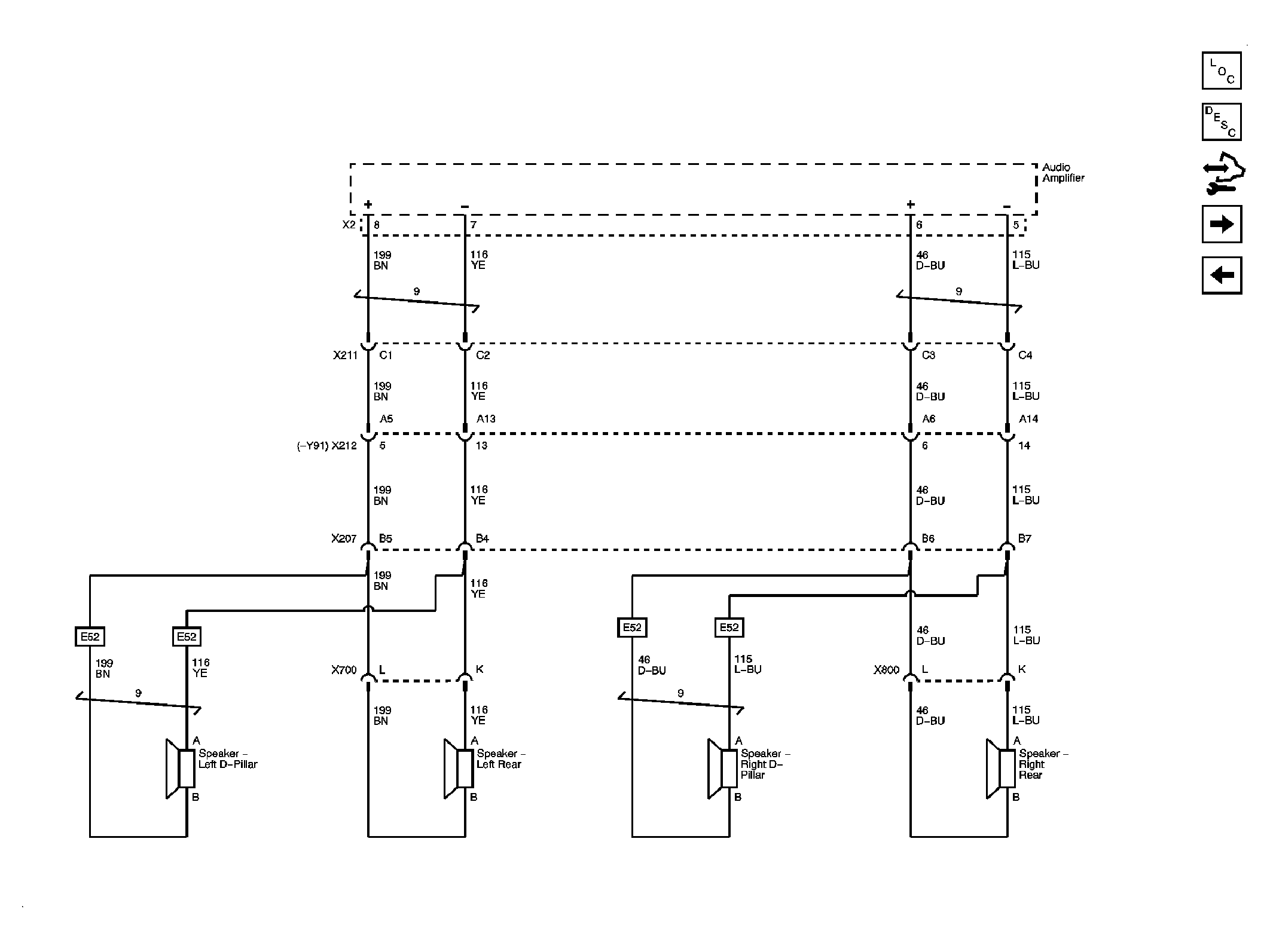

Fig 9: Rear Speakers (UQS or UQA with Y91 or with STZ)

Courtesy of GENERAL MOTORS CORP.

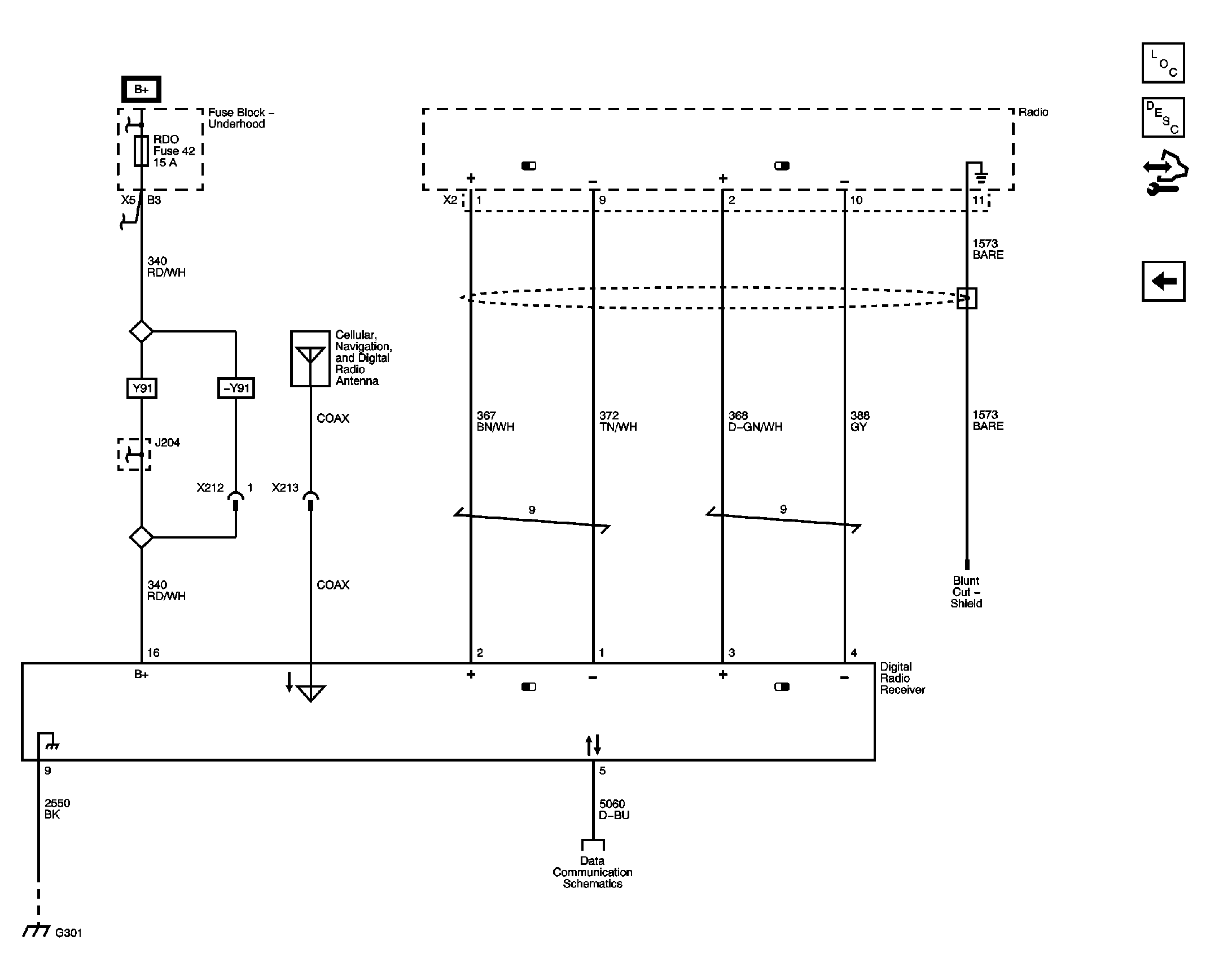

Fig 10: Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.
