Door Component Views

Fig 1: Driver Door Components

GM1657313

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Outside Rearview Mirror - Driver
3	Heated and Cooled Seat Switch - Driver (KB6)
4	Memory/Personalization Function Switch (A45)
5	Mirror Switch
6	Speaker - Left Front Door
7	Window Switch - Driver Door
8	Window Motor - Driver
9	Courtesy Lamp - Left Front Door
10	Door Lock Switch Assembly
11	Door Latch Assembly - Driver
12	Door Lock Key Cylinder Switch - Driver

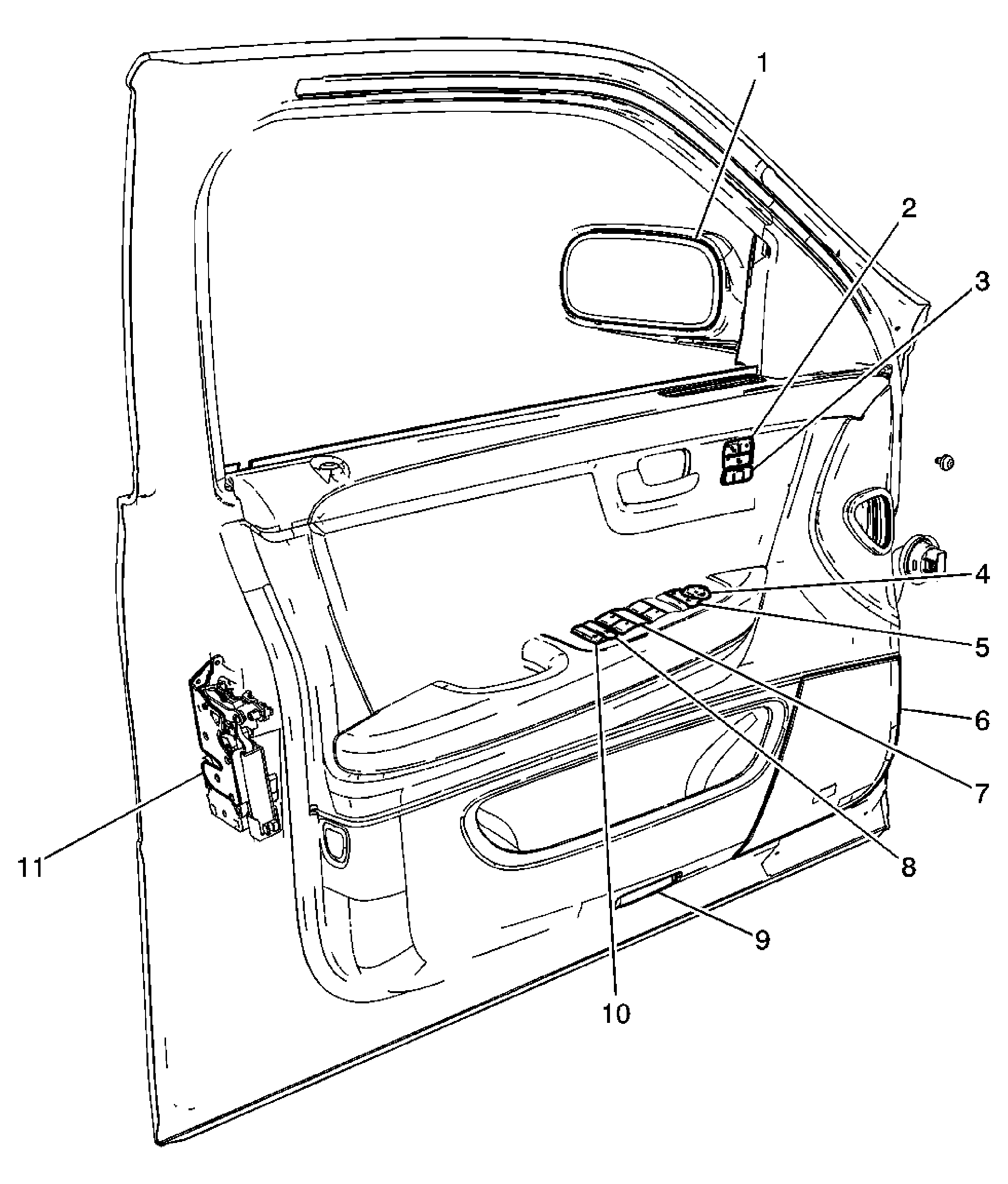

Fig 2: Driver Door

GM2011255

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Heated and Cooled Seat Switch - Driver (KB6)
3	Memory/Personalization Switch (A45)
4	Outside Rearview Mirror Switch
5	Outside Power Folding Mirror Switch (DL3)
6	Speaker - Left Front Door
7	Power Window Switches
8	Window Lock-Out Switch
9	Courtesy Lamp - Left Front Door
10	Door Lock-Out Switch
11	Door Latch Assembly

Fig 3: Driver Door Module - Window/Lock Switch

GM1697760

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door
2	Driver Window Switch
3	Outside Rearview Mirror Retract/Extend Switch (DL3)
4	Outside Rearview Mirror Switch
5	Right Front Window Switch
6	Right Rear Window Switch
7	Door Lock/ Unlock Switch
8	Window Lockout Switch
9	Left Rear Window Switch

Fig 4: Passenger Door Components

GM1657321

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Door Frame
3	Door Latch Assembly - Front Passenger
4	Courtesy Lamp - Right Front Door
5	Window Motor - Front Passenger
6	Speaker - Right Front Door
7	Power Lock Switch - Front Passenger
8	Window Switch - Front Passenger
9	Heated Cooled Seat Switch (KB6) - Front Passenger

Fig 5: Passenger Door Module - Window/Lock Switch

GM1697758

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Door Lock/ Window Switch - Passenger

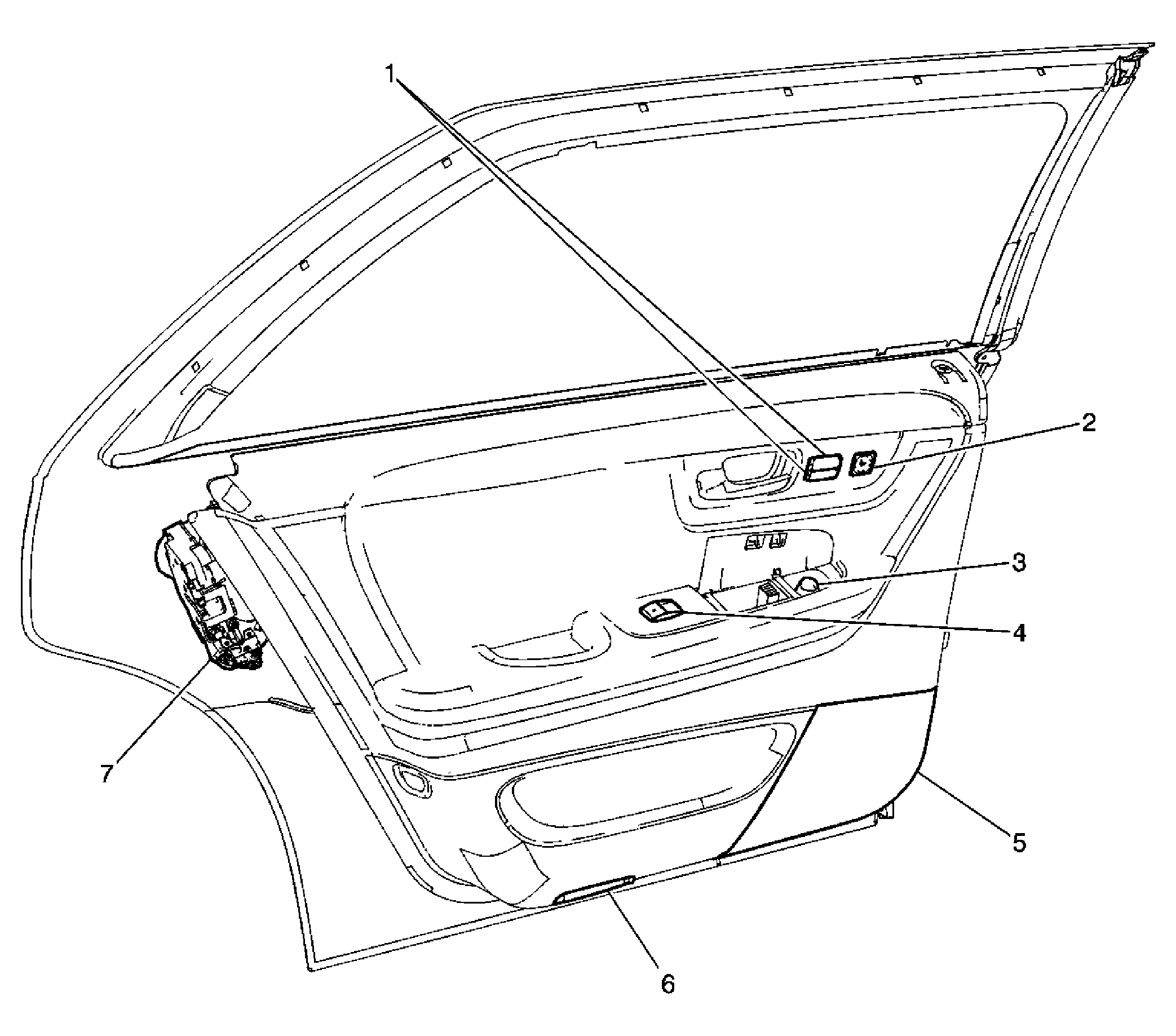

Fig 6: Door Components - Left Rear

GM1860653

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Rear Heated Seat Switch (KB6)
2	Seat Lumbar Switch (ARC)
3	Auxiliary Power Outlet - Left Rear
4	Window Switch - Left Rear
5	Speaker - Left Rear Door
6	Courtesy Lamp - Left Rear
7	Door Latch Assembly - Left Rear

Fig 7: Left Rear Door Components

GM1657322

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Heated Seat Switch - Left Rear (KB6)
3	Seat Lumbar Switch - Left Rear (ARC)
4	Window Motor - Left Rear
5	Speaker - Left Rear Door
6	Courtesy Lamp - Left Rear Door
7	Window Switch - Left Rear
8	Door Latch Assembly - Left Rear

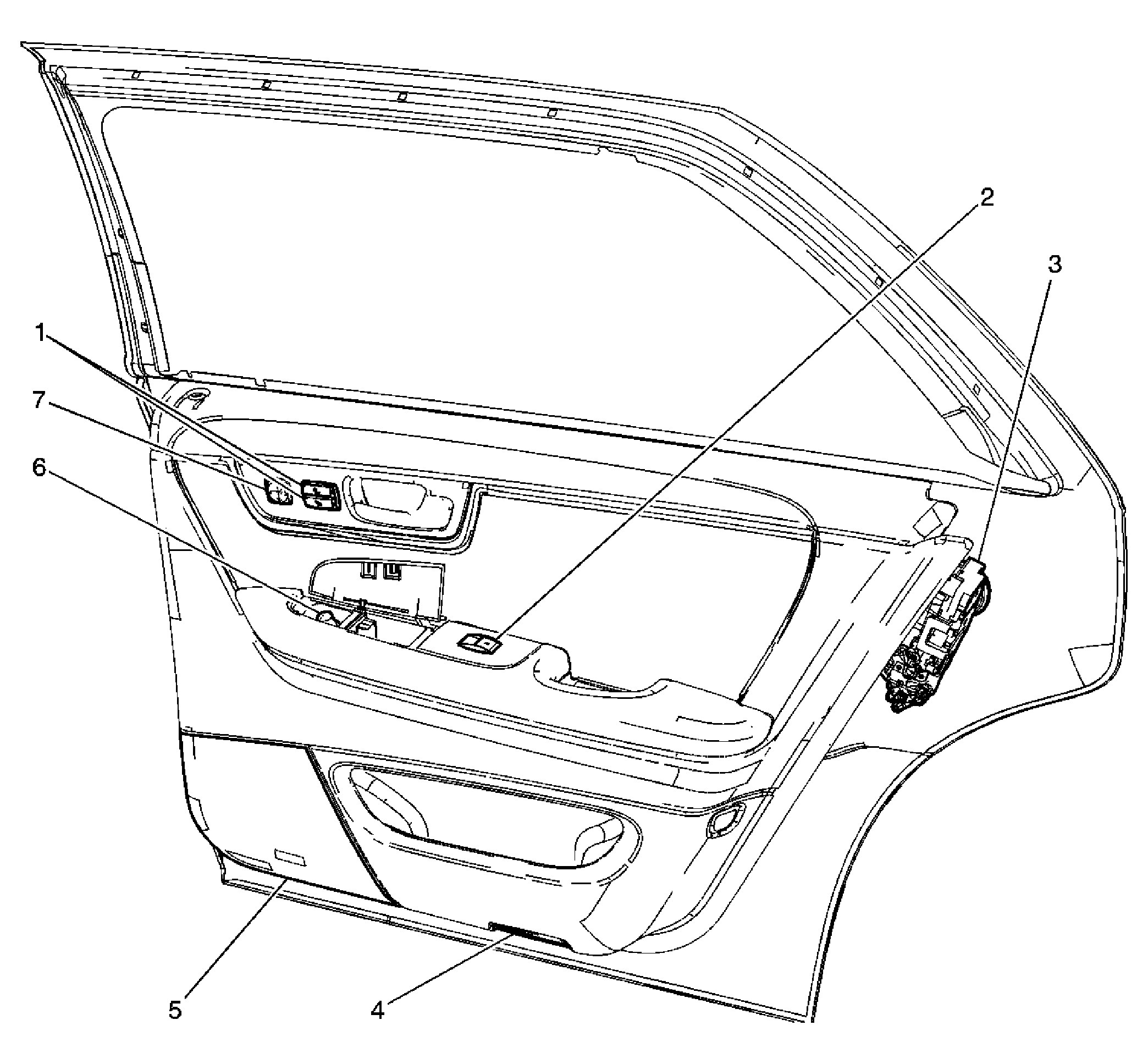

Fig 8: Door Components - Right Rear

GM1860662

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Heated Seat Switch (KB6)
2	Window Switch - Right Rear
3	Door Latch Assembly - Right Rear
4	Courtesy Lamp - Right Rear
5	Speaker - Right Rear Door
6	Auxiliary Power Outlet - Right Rear
7	Seat Lumbar Switch (ARC)

Fig 9: Right Rear Door Components

GM1657324

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	Door Latch Assembly - Right Rear
3	Courtesy Lamp - Right Rear Door
4	Speaker - Right Rear Door
5	Window Motor - Right Rear
6	Window Switch - Right Rear
7	Seat Lumbar Switch - Right Rear (ARC)
8	Heated Seat Switch - Right Rear (KB6)
