Door Component Views

Fig 1: Front Door Handle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver (LHD) or Door Handle Switch - Passenger (RDH)
2	Door Handle Switch - Passenger (RDH) or Door Handle Switch - Driver (LHD)
3	Keyless Entry Antenna - Passenger Handle (LHD with BTM or ATH) or Keyless Entry Antenna - Driver Door Handle (RHD with BTM or ATH)
4	Keyless Entry Antenna - Driver Door Handle (LHD with BTM or ATH) or Keyless Entry Antenna - Passenger Door Handle (RHD with BTM or ATH)

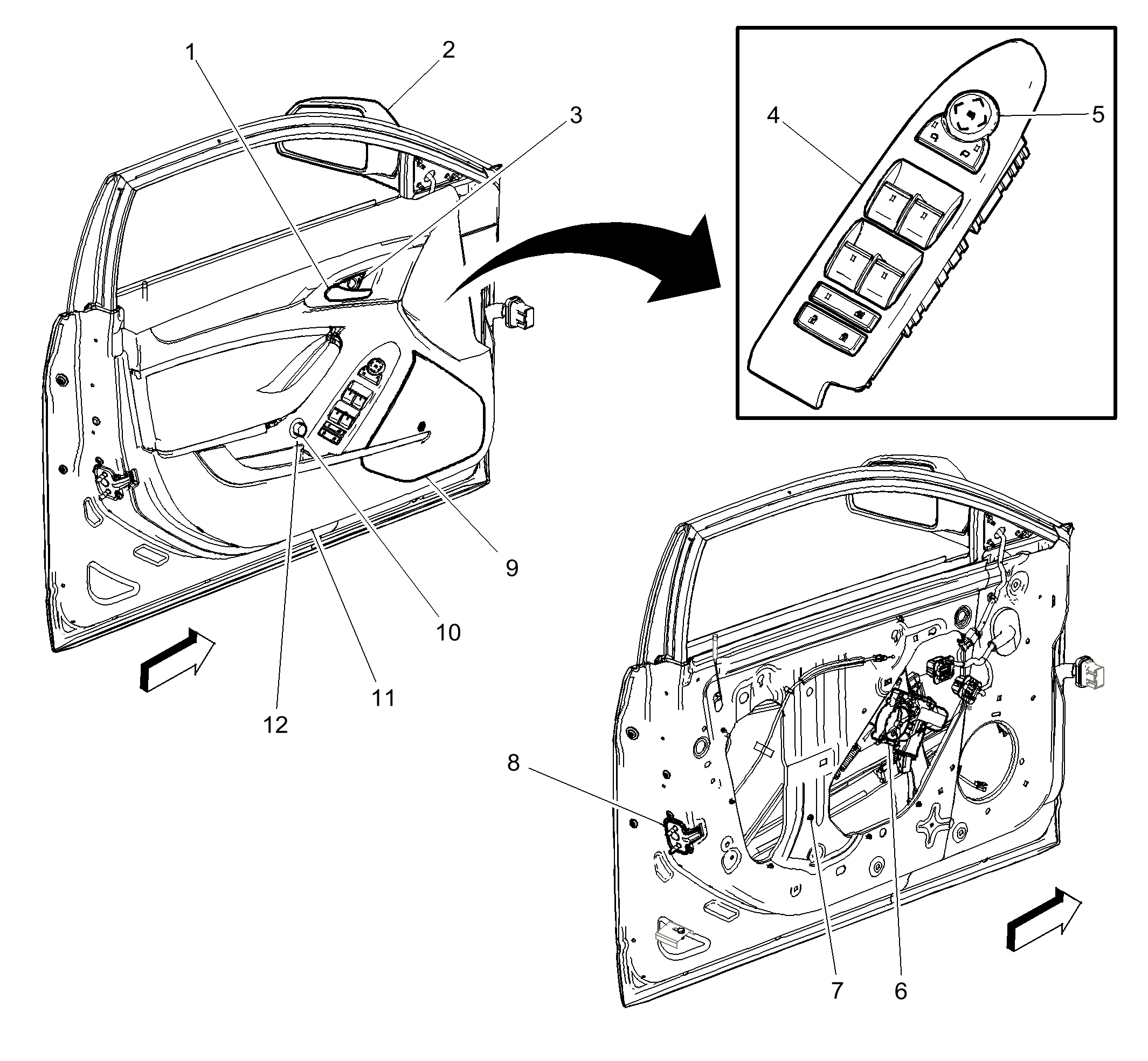

Fig 2: Driver Door Components (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accent Lamp - Driver Door (TSQ)
2	Outside Rearview Mirror - Driver
3	Accent Lamp - Driver Door Handle (TSQ)
4	Door Lock/Window Switch - Driver
5	Outside Mirror Switch
6	Window Switches
7	Window Lock-out Switch
8	Driver Door Lock Switch
9	Window Motor - Driver
10	Inflatable Restraint Side Impact Sensor (SIS) - Left Front
11	Door Latch - Driver
12	Speaker - Left Front Door
13	Rear Compartment Lid Release Switch - Interior (Sedan) or Liftgate Control Switch - Interior (Wagon)
14	Courtesy Lamp - Left Front Door

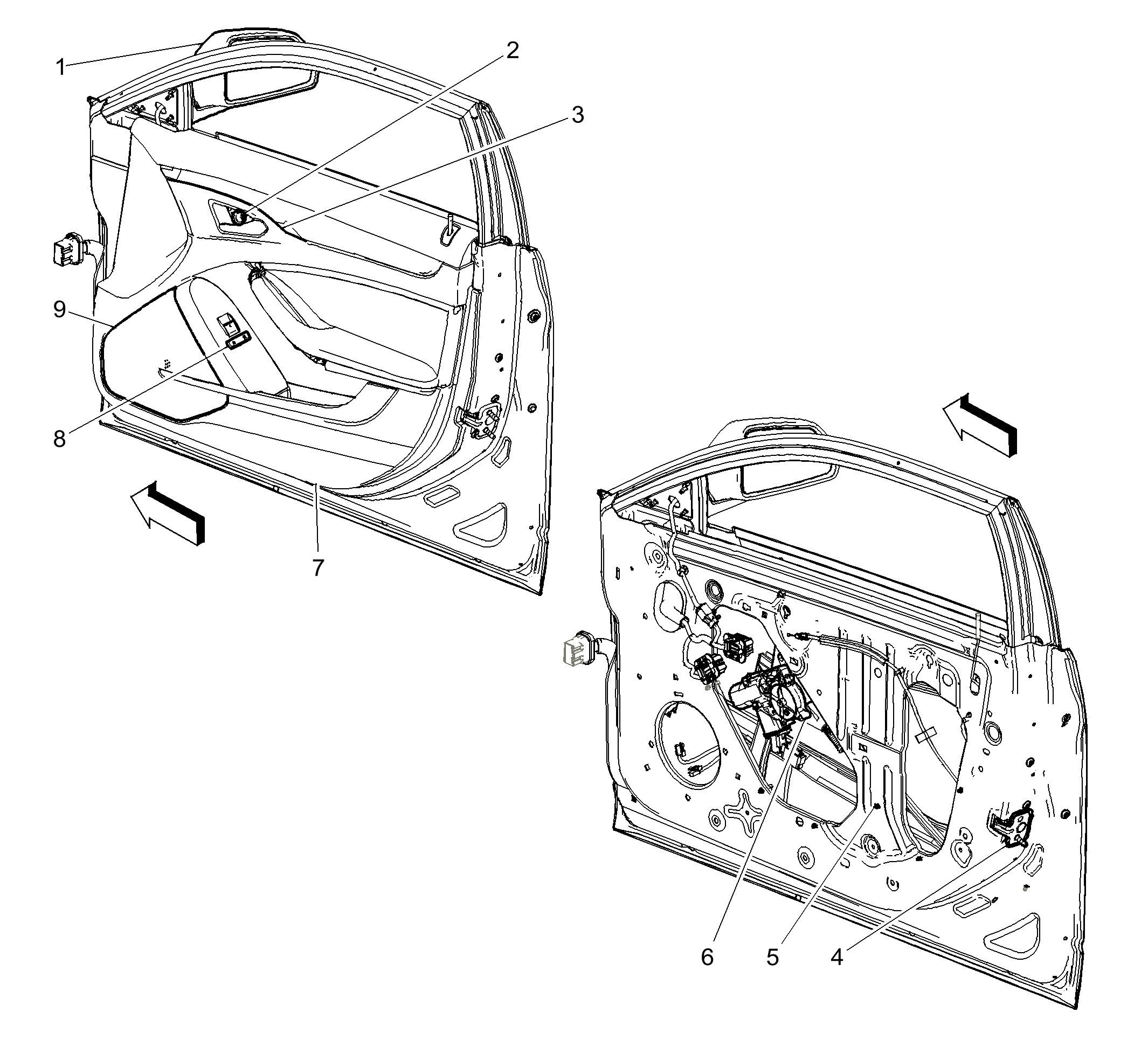

Fig 3: Passenger Door Components (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Accent Lamp - Passenger Door (TSQ)
3	Accent Lamp - Passenger Door Handle (TSQ)
4	Door Latch - Passenger
5	Inflatable Restraint Side Impact Sensor (SIS) - Right Front
6	Window Motor - Passenger
7	Courtesy Lamp - Right Front Door
8	Door Lock/Window Swich - Passenger
9	Speaker - Right Front Door

Fig 4: Rear Door Handle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Left Rear (UHA/UHF)
2	Door Handle Switch - Right Rear (UHA/UHF)

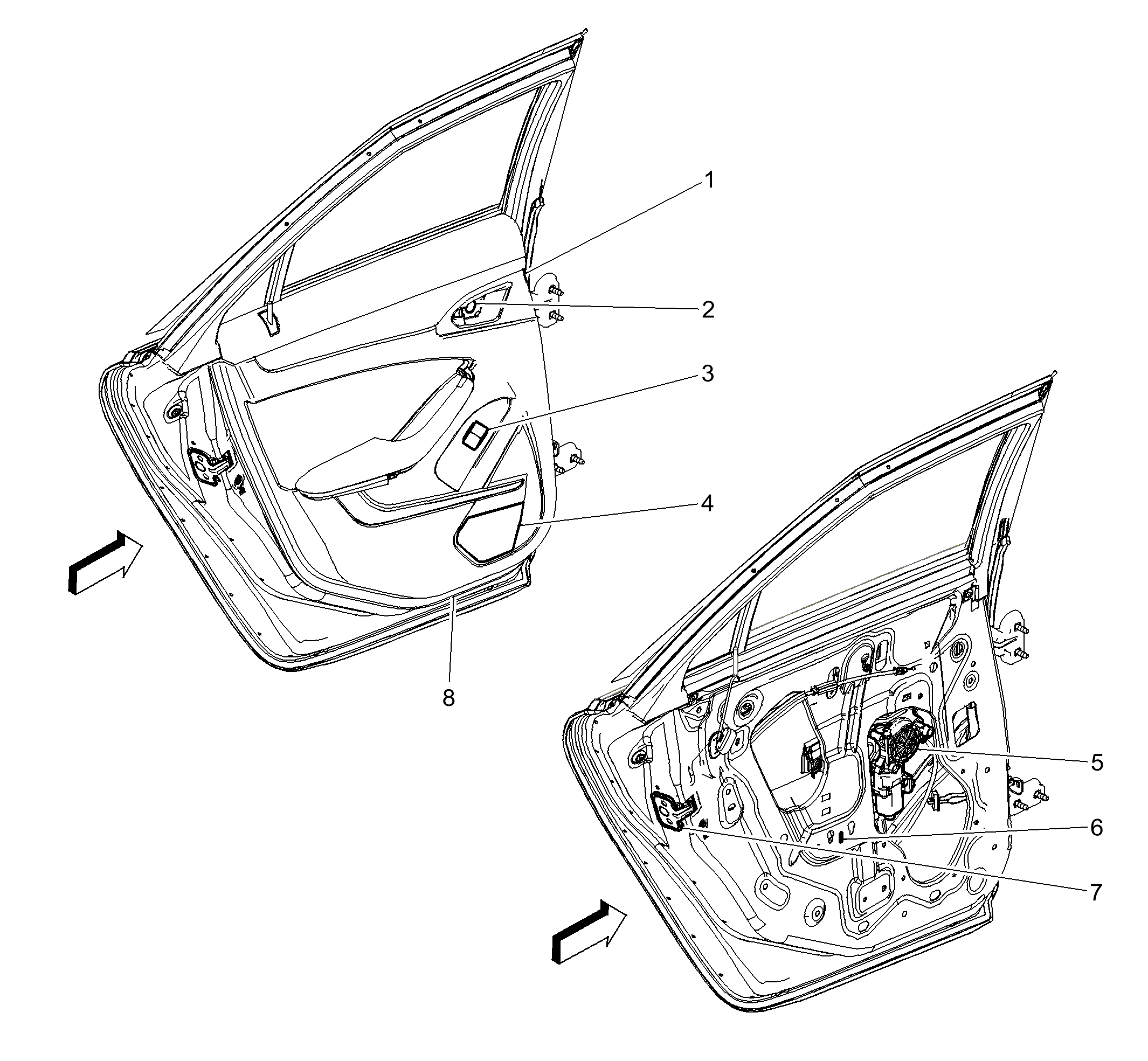

Fig 5: Left Rear Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accent Lamp - Left Rear Door (TSQ)
2	Accent Lamp - Left Rear Door Handle (TSQ)
3	Window Switch - Left Rear
4	Speaker - Left Rear
5	Window Motor - Left Rear
6	Inflatable Restraint Side Impact Sensor (SIS) - Left Rear
7	Door Latch - Left Rear
8	Courtesy Lamp - Left Rear Door

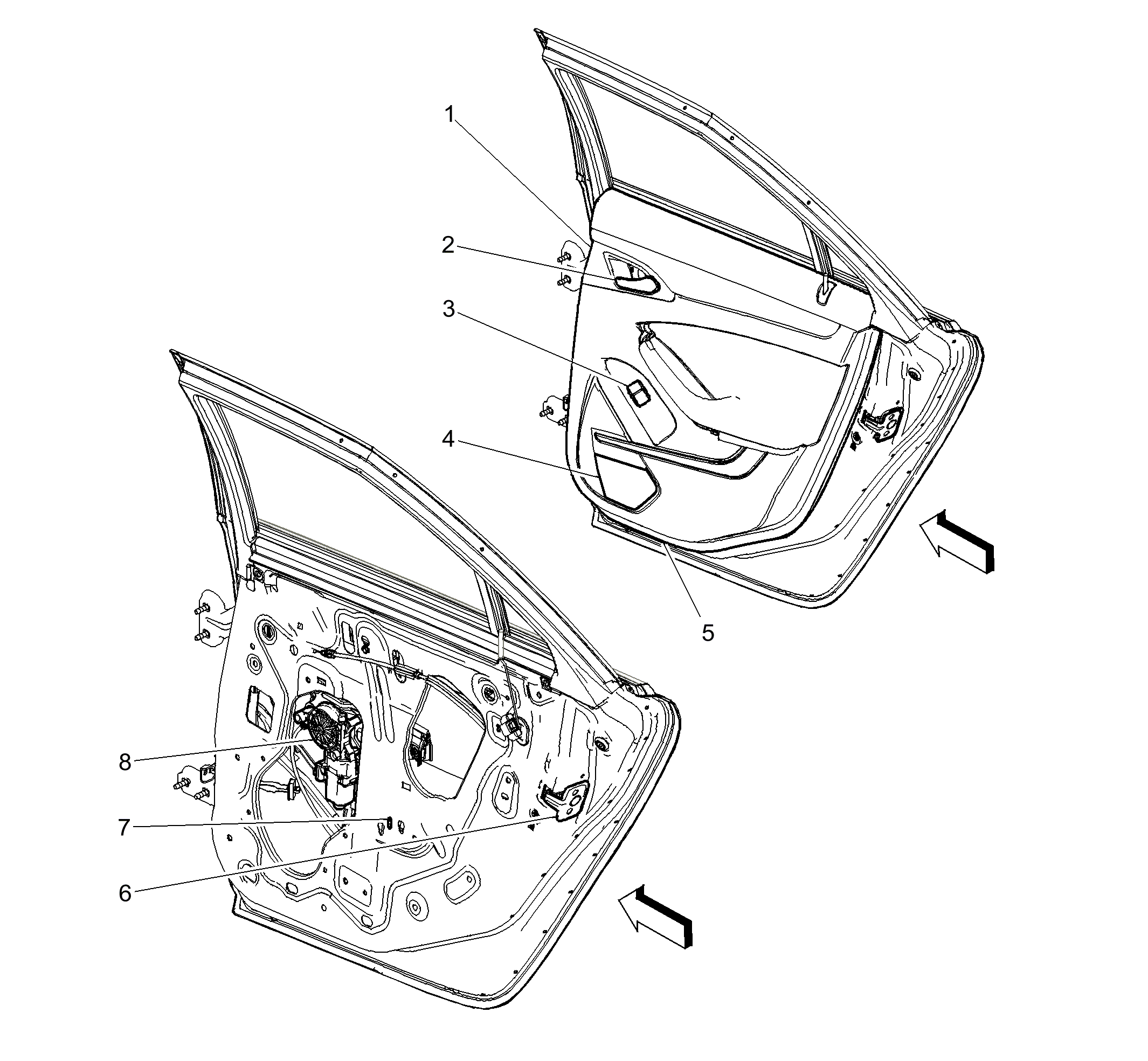

Fig 6: Right Rear Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accent Lamp - Right Rear Door (TSQ)
2	Accent Lamp - Right Rear Door Handle (TSQ)
3	Window Switch - Right Rear
4	Speaker - Right Rear
5	Courtesy Lamp - Right Rear Door
6	Door Latch - Right Rear
7	Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
8	Window Motor - Right Rear
