Air Cleaner Element Replacement (LSA)

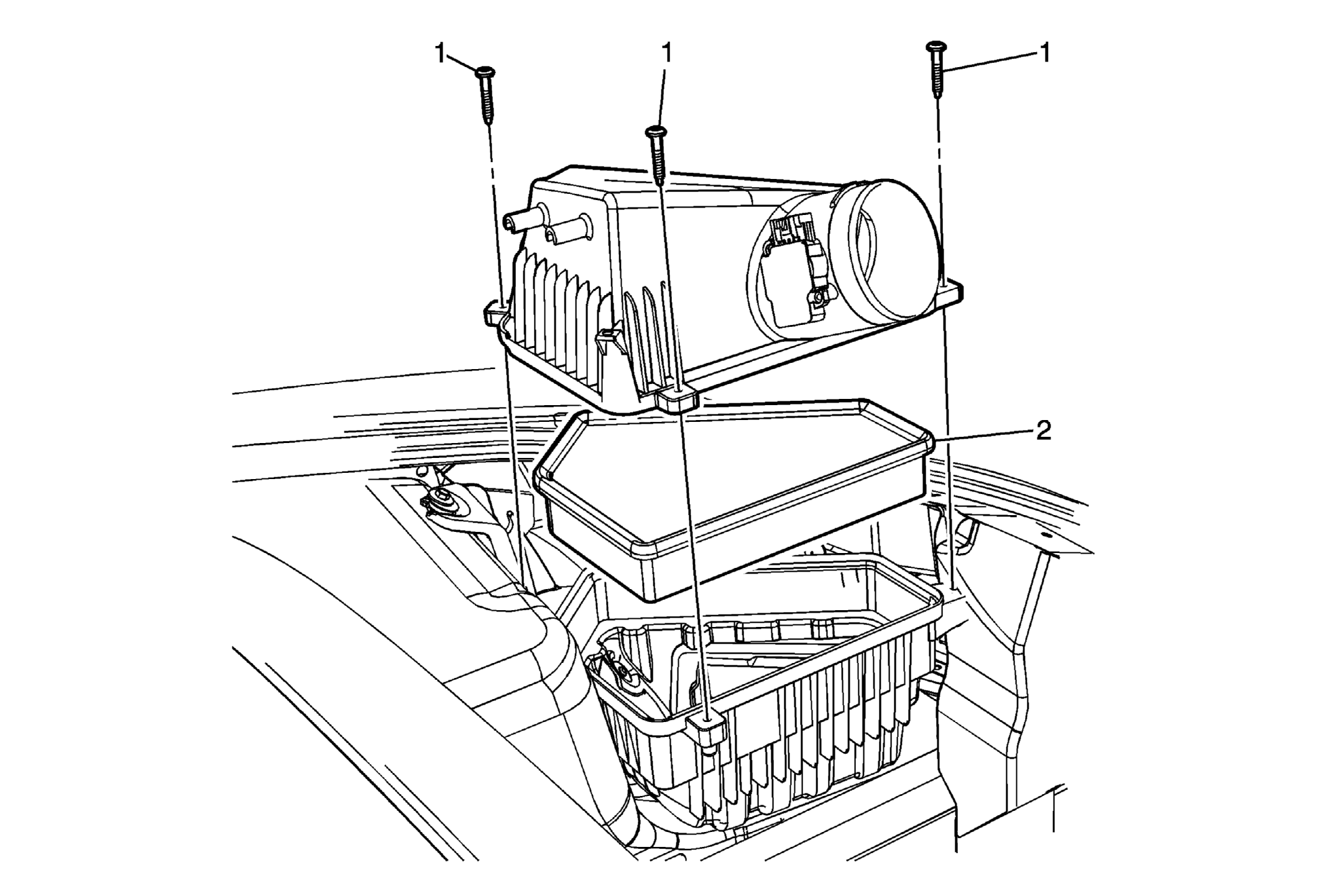

Fig 1: Air Cleaner Element
GM2164109Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  2. Remove the air cleaner duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  3. Disconnect the MAF/IAT sensor harness connector.
1 Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Air Cleaner Element

Procedure

  1. Reposition the surge tank bypass hose as necessary.
  2. Disconnect the MAF sensor wiring harness.
  3. Lift the air cleaner cover in order to remove the air cleaner element.
