Installation Procedure

    NOTE: Lubricate the inside diameters of the hoses with clean coolant prior to installation.
  1. Install the surge tank.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the upper surge tank nut and tighten to 8 N.m (71 lb in).
  3. Install the protective cap on the surge tank upper stud.

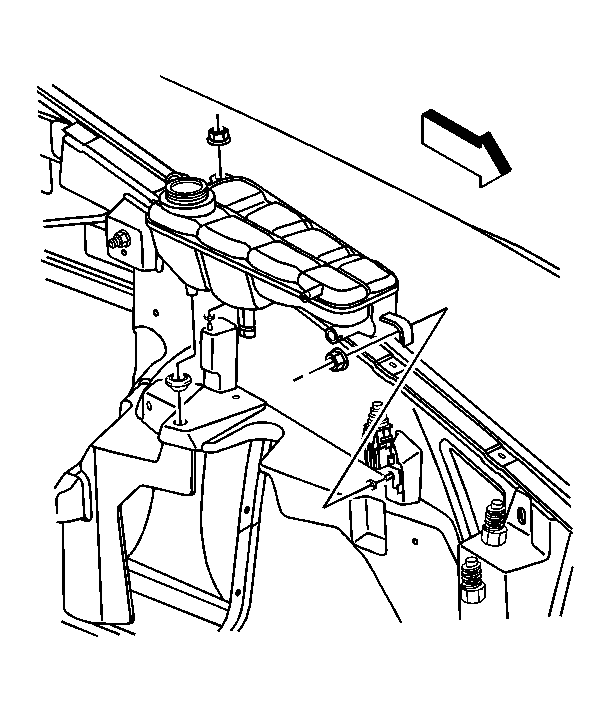

    4. Fig 1: View of Surge Tank
    GM923654Courtesy of GENERAL MOTORS CORP.
  4. Connect the coolant level sensor electrical connector.

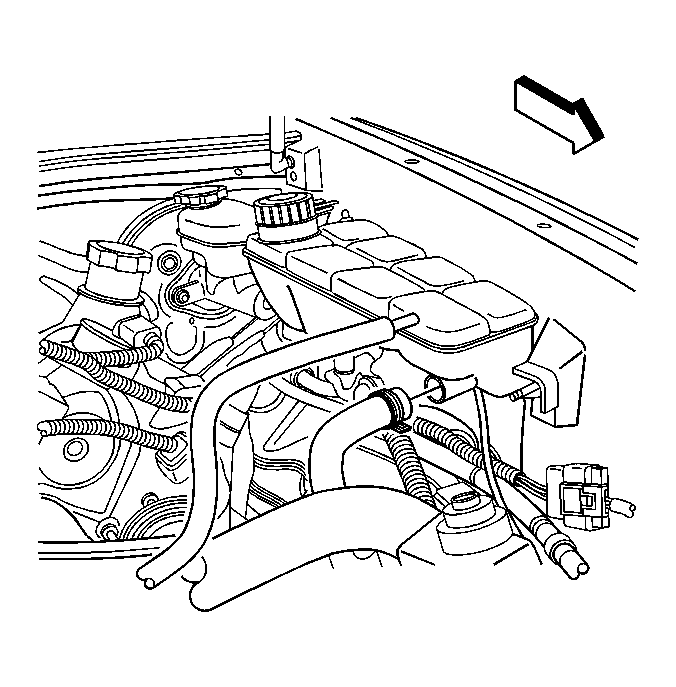

    5. Fig 2: Disconnecting/Connecting Surge Tank Outlet Hose
    GM931722Courtesy of GENERAL MOTORS CORP.
  5. Connect the surge tank outlet hose to the surge tank.
  6. Engage tension on the surge tank outlet hose clamp.
    7. Fig 3: View Of Surge Tank Inlet Hose
    GM932444Courtesy of GENERAL MOTORS CORP.
  7. Connect the surge tank inlet hose to the surge tank.
  8. Engage tension on the surge tank inlet hose clamp.
  9. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (GE 47716) .
