Moveable Window Schematics

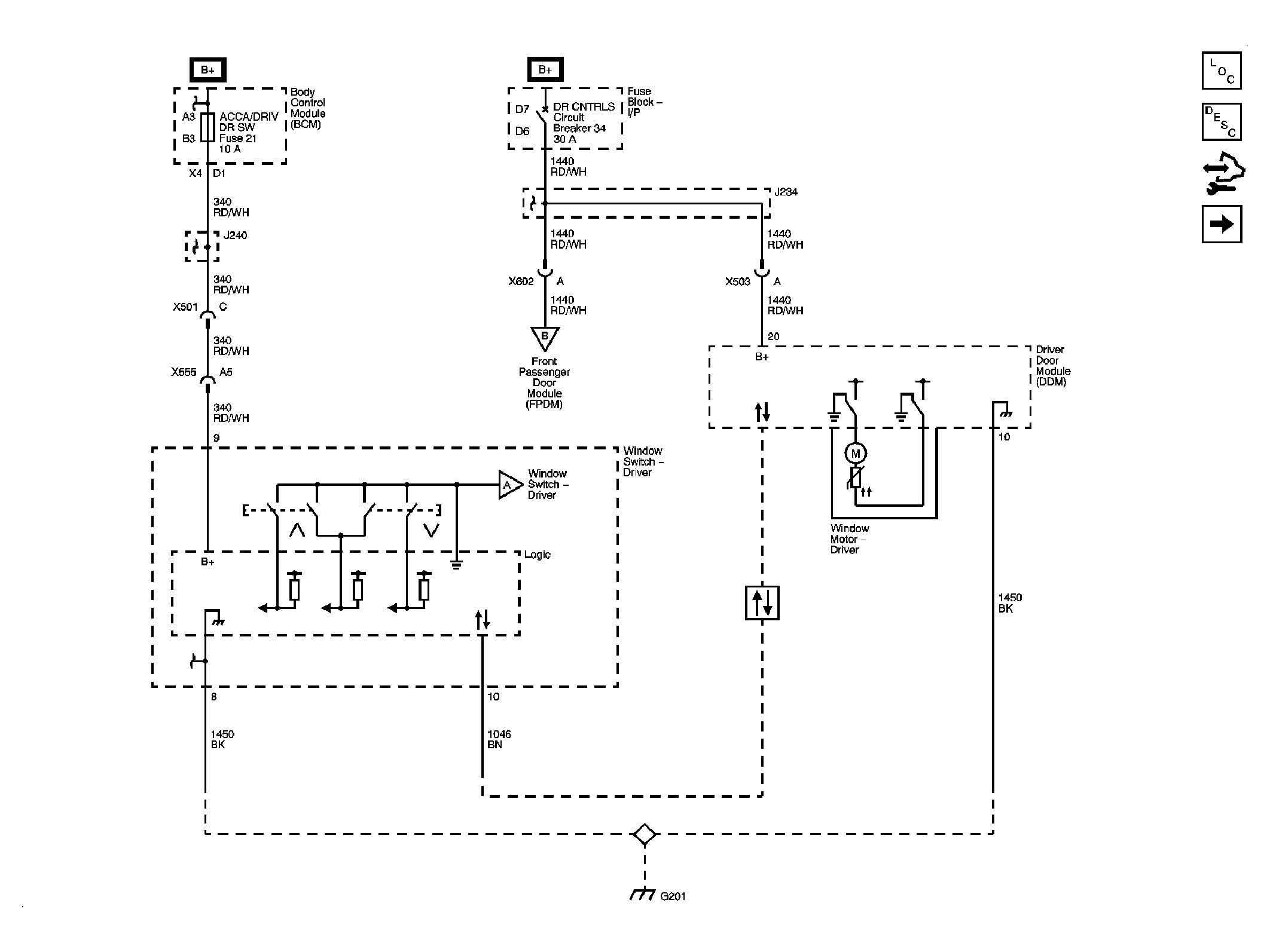

Fig 1: Driver

GM2075844

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger

GM2075846

Courtesy of GENERAL MOTORS CORP.
