Communication Interface Module Bracket Replacement

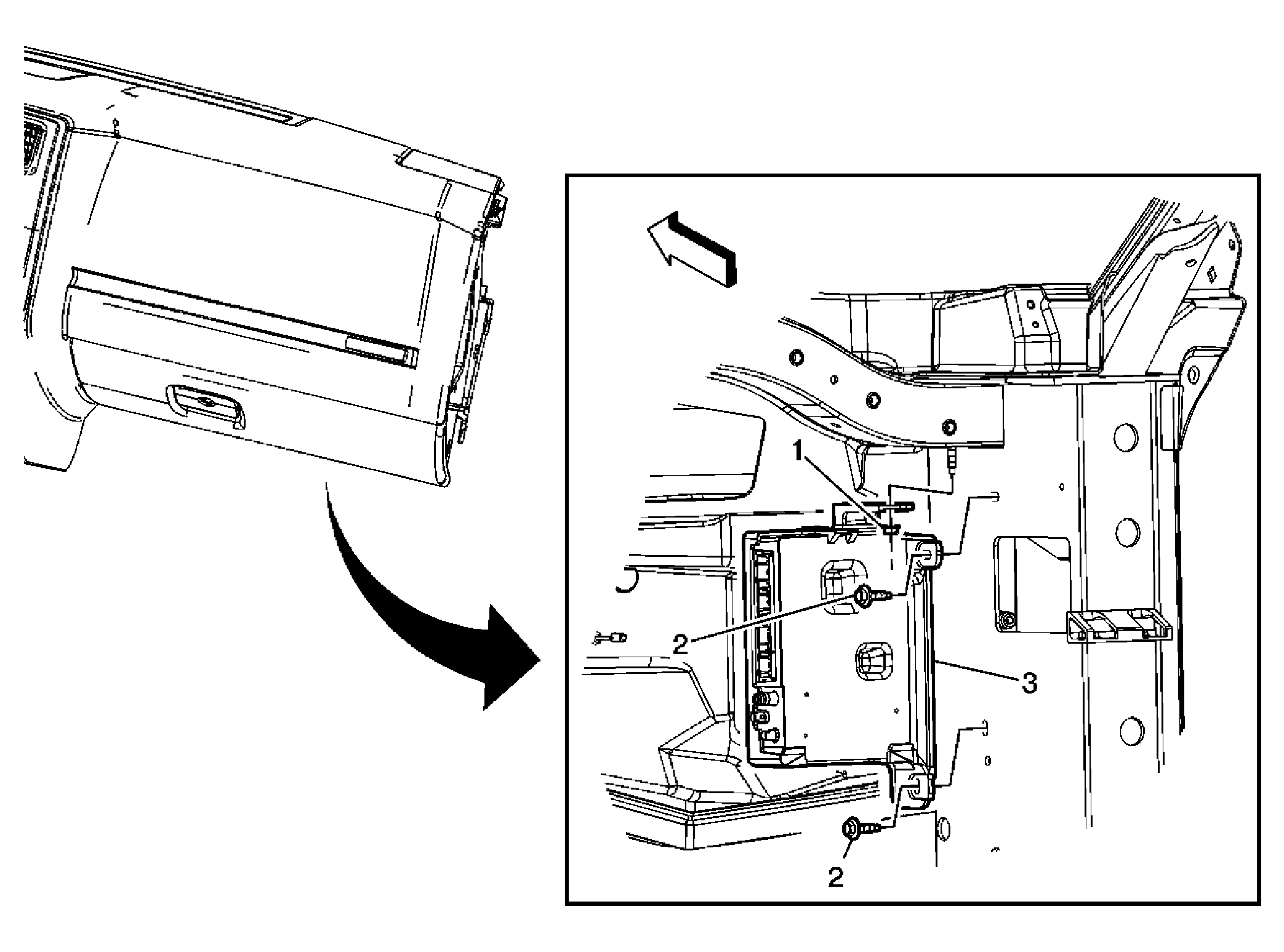

Fig 1: Identifying Communication Interface Module Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Communication Interface Module Nut (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Communication Interface Module Bolt Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
3	Communication Interface Module Bracket Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References .
