Data Communication Schematics

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

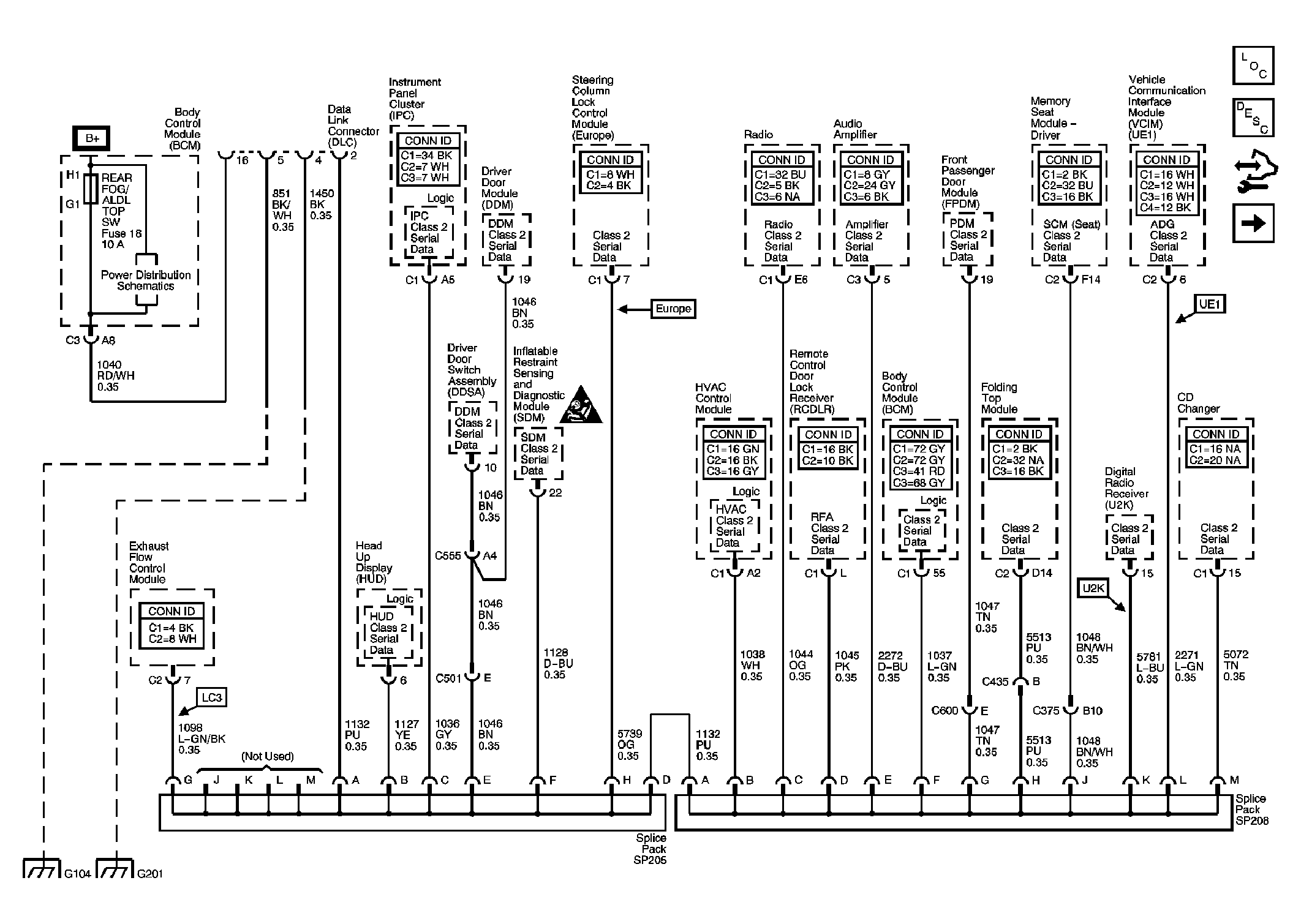

Fig 1: Data Communication Schematic - Class 2
GM1753369Courtesy of GENERAL MOTORS CORP.

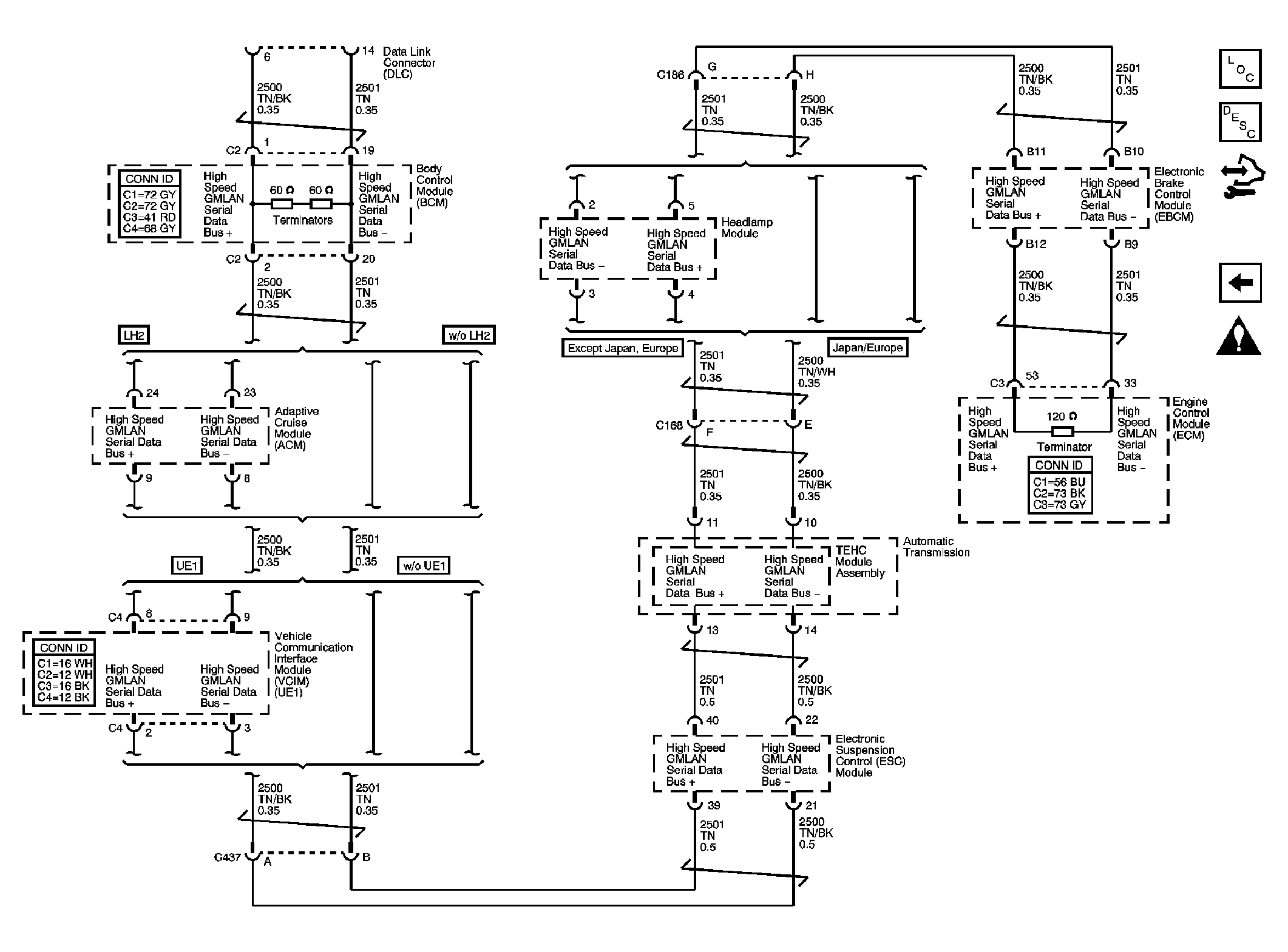

Fig 2: GMLAN Schematic
GM1753379Courtesy of GENERAL MOTORS CORP.
