Installation Procedure

  1. Position the fuel filler tube to the vehicle.
    2. Fig 1: Identifying Fuel Filler Hose To Fuel tank
    GM785808Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Component Fastener Tightening Caution .
  2. Connect the filler hose (1) to the fuel tank. Tighten the fuel filler tube hose clamp (3) to 3.5 N.m (31 lb in).
  3. Connect the filler vent tube (2) to the EVAP hose. Refer to Plastic Collar Quick Connect Fitting Service .

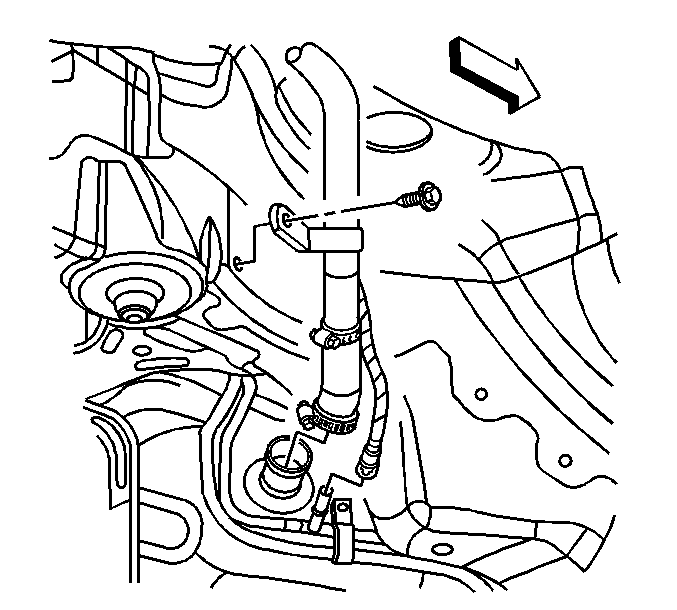

    4. Fig 2: View Of Fuel Filler Tube Brace Bolt
    GM785809Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the fuel filler tube brace bolt and tighten to 9 N.m (80 lb in).
    5. Fig 3: View Of Fuel Filler Tube Bolts
    GM785810Courtesy of GENERAL MOTORS CORP.
  5. Install the bolts securing the fuel filler tube to the body and tighten to 3.5 N.m (31 lb in).
  6. Install the right rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .
  7. Install the right rear wheel. Refer to Tire and Wheel Removal and Installation .
  8. Add fuel to the fuel tank.
  9. Inspect for fuel leaks.
  10. Install the fuel filler cap.
