Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

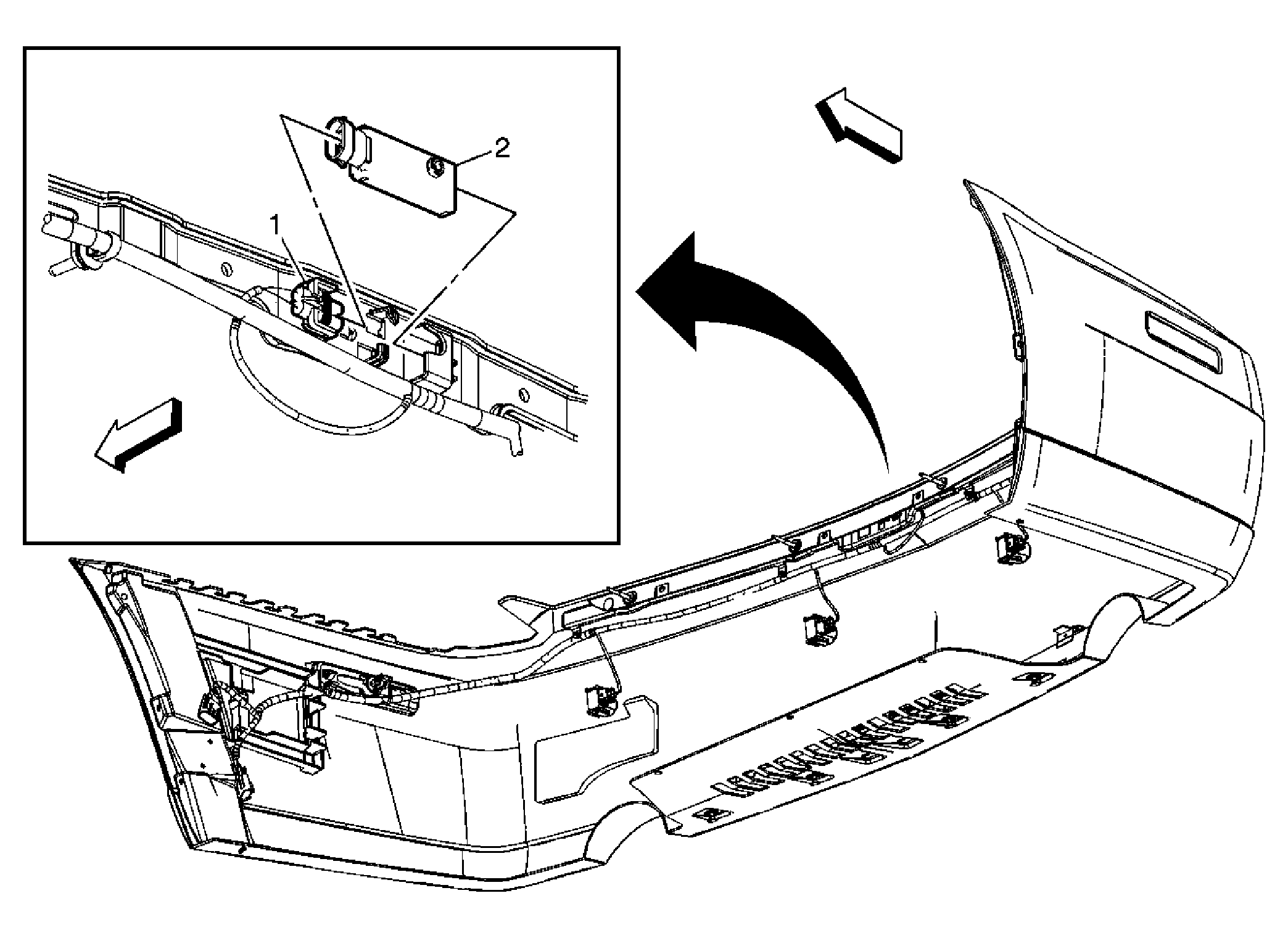

Fig 1: View Of Back Up Alarm Wiring Harness Assembly & Ignition Lock Key Transmitter Antenna Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Back Up Alarm Wiring Harness Assembly
2	Ignition Lock Key Transmitter Antenna Assembly
