Steering Wheel Secondary/Configurable Control Schematics

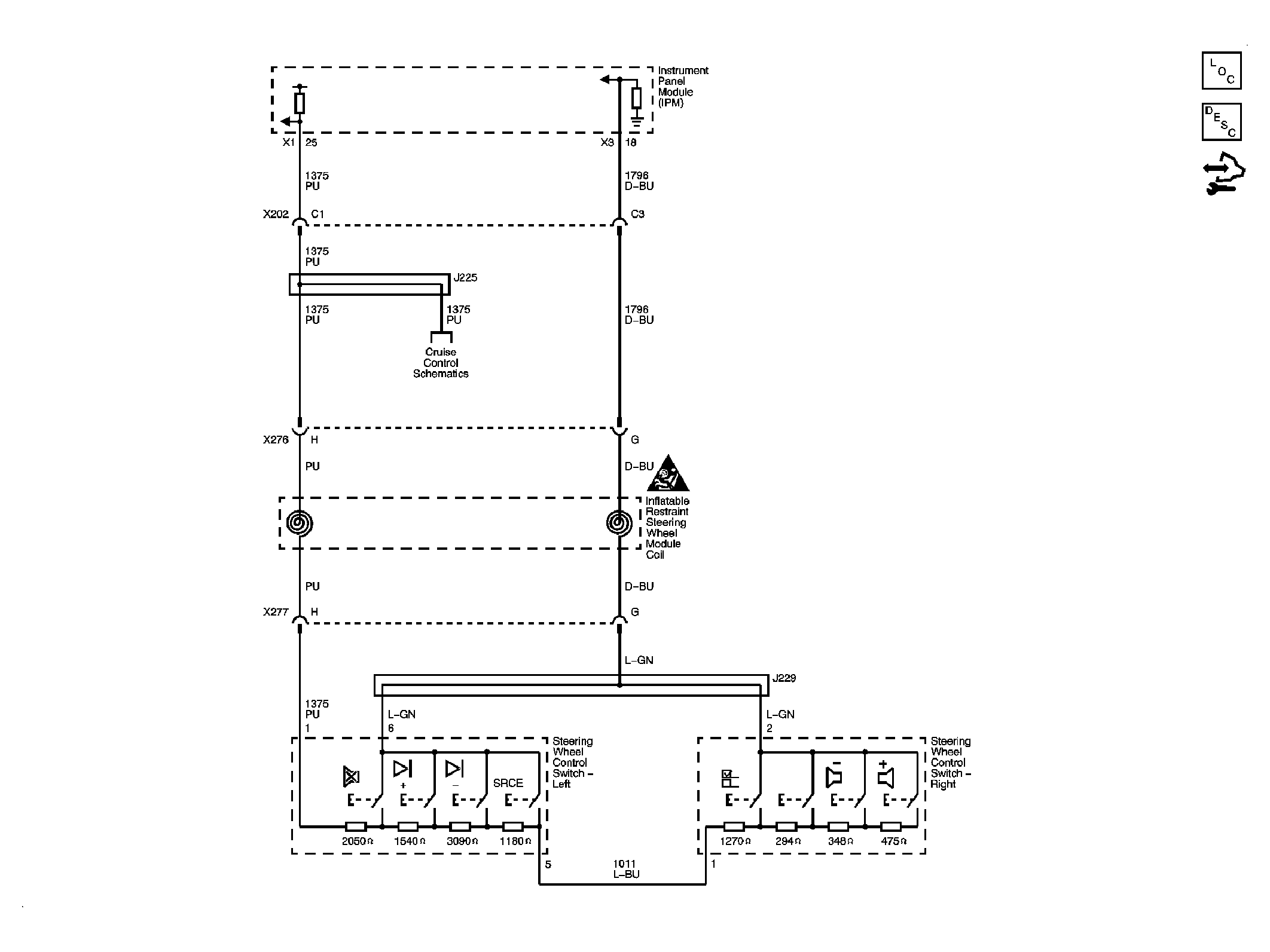

Fig 1: Steering Wheel Control Switch Assembly

GM2063263

Courtesy of GENERAL MOTORS CORP.
