Installation Procedure

    Fig 1: View Of Air Cleaner Element
    GM1201265Courtesy of GENERAL MOTORS CORP.
  1. Install the new air filter element.
  2. Close the air cleaner housing.
  3. Ensure the air cleaner assembly cover tabs are properly aligned to the air cleaner housing.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the air cleaner housing screws and tighten to 3 N.m (27 lb in).

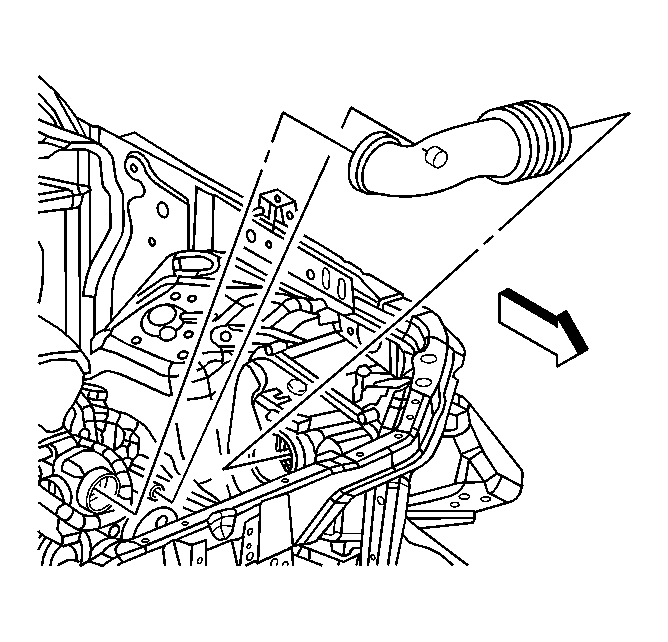

    5. Fig 2: View Of Air Cleaner Duct
    GM1201220Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
