Cadillac
>>
2009
>>
SRX 4.6 A, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Below Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Behind Right Front Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 4: Third Row Folding Seats
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Right Rear Of Vehicle, Behind Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 7: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 9: Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 11: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 12: Air Quality Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 13: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 15: Battery
Courtesy of GENERAL MOTORS CORP.
Fig 16: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 17: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 18: Brake & Brake Fluid Level Switches
Courtesy of GENERAL MOTORS CORP.

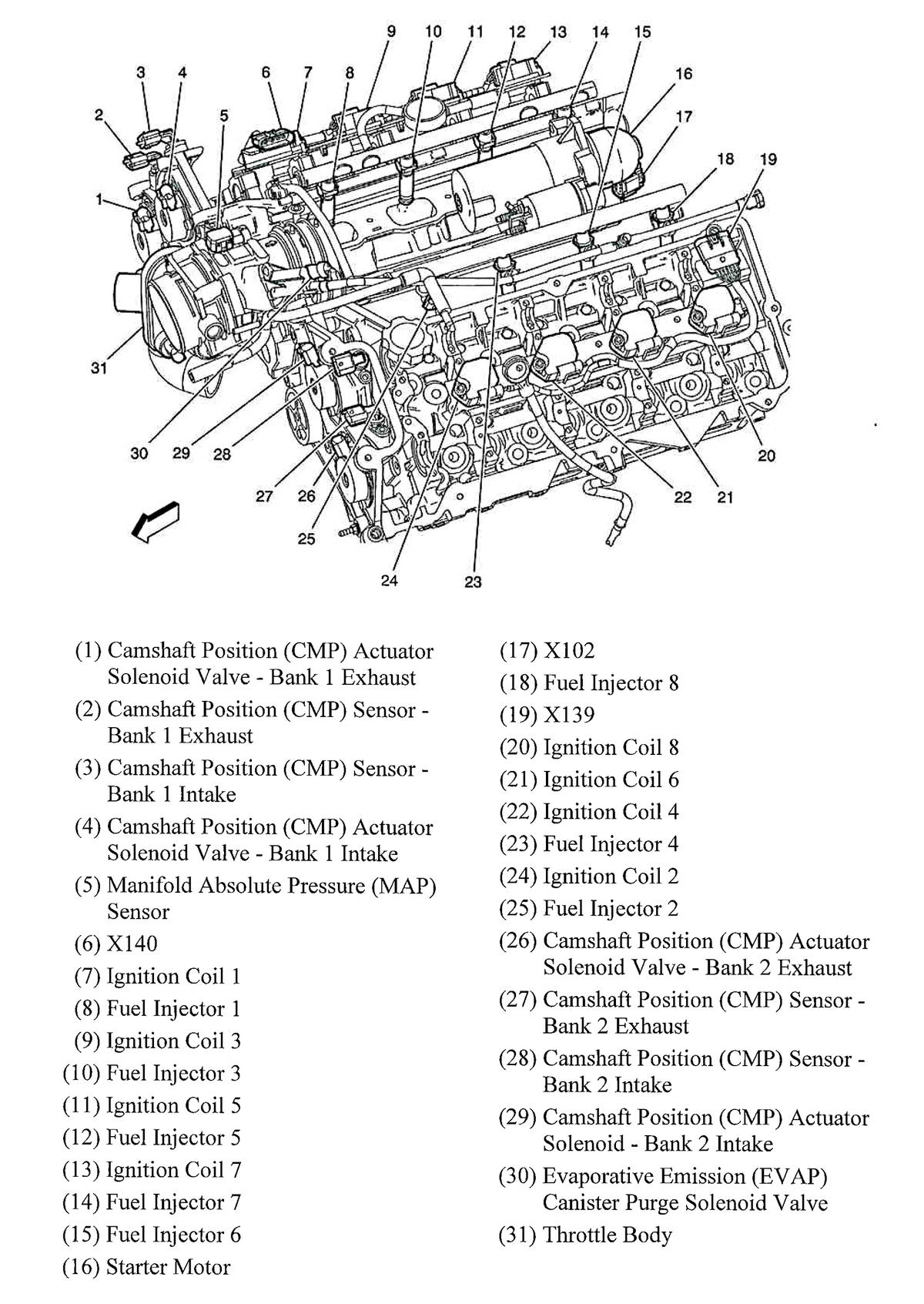

Fig 19: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Starter & Knock Sensors (4.6L)
Courtesy of GENERAL MOTORS CORP.

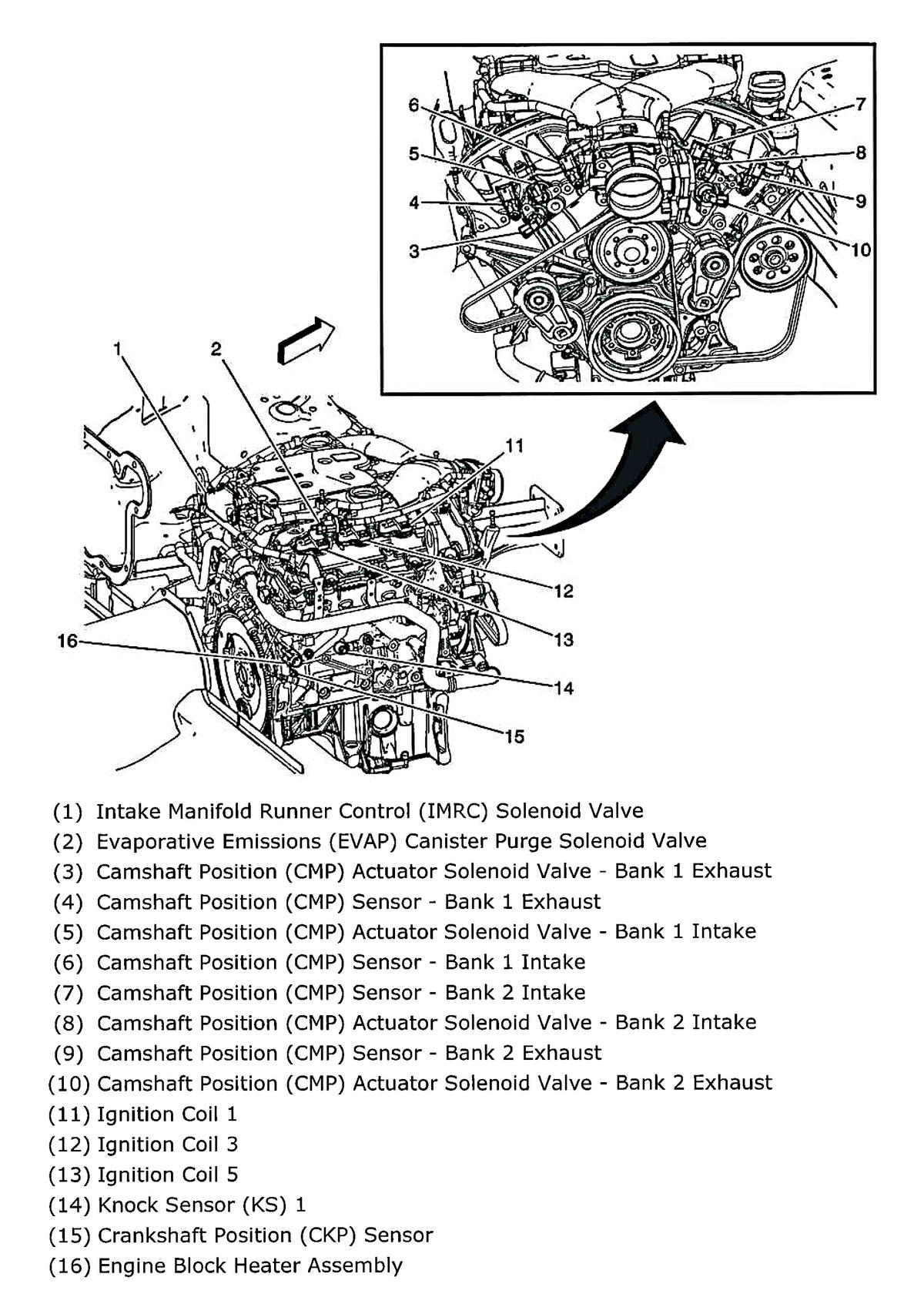

Fig 21: Engine Components (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 23: Driver's Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 24: Passenger Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Rear Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 26: Right Rear Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 27: Front Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Controls Components (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Fuel Tank & EVAP Solenoid
Courtesy of GENERAL MOTORS CORP.
Fig 32: Evaporator Temperature Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 33: Fuel Injectors (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Headlamp Leveling Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 36: Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Heated Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Wiper Washer Components
Courtesy of GENERAL MOTORS CORP.
Fig 39: Theft Deterrent Components
Courtesy of GENERAL MOTORS CORP.
Fig 40: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 42: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Lower "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 44: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: Lower Center Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 46: Liftgate Side Upper Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 47: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 48: Rear Bumper Object Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 49: Right Rear Compartment Area
Courtesy of GENERAL MOTORS CORP.
Fig 50: Headliner Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Side Of Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.
Fig 52: Steering Angle Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 53: Driver's Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 54: Seat Lumbar Motors
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 58: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 59: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 60: Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.
Fig 64: Passenger Compartment Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 65: Floor Console Harness
Courtesy of GENERAL MOTORS CORP.
Fig 66: Headliner/Sunroof Harness
Courtesy of GENERAL MOTORS CORP.
Fig 67: Liftgate Components
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear View
Courtesy of GENERAL MOTORS CORP.
Fig 69: Right Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 71: Front Of Engine Compartment (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Passenger Compartment Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 73: Dash Harness Splices
Courtesy of GENERAL MOTORS CORP.
Fig 74: Body Harness Splices
Courtesy of GENERAL MOTORS CORP.
Fig 75: Rear Fascia Harness Routing
Courtesy of GENERAL MOTORS CORP.

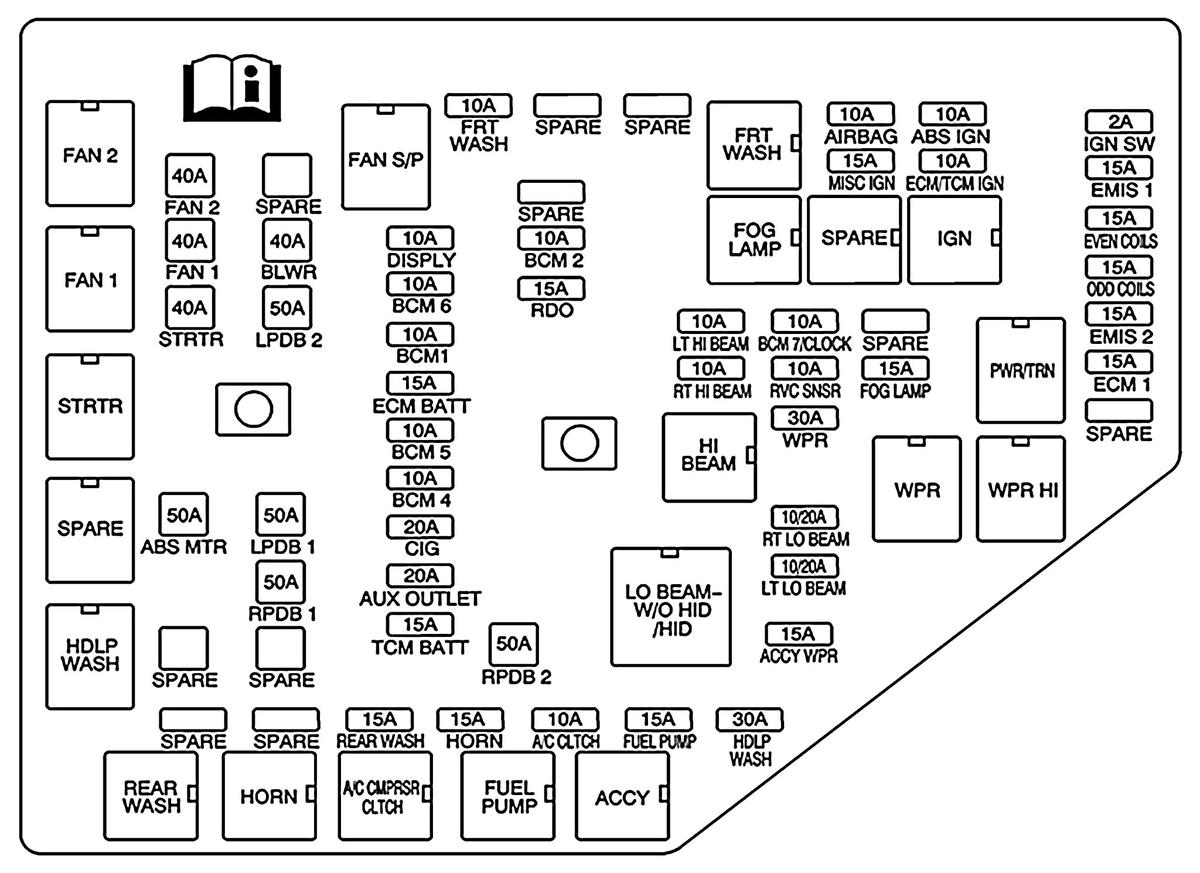

Fig 76: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

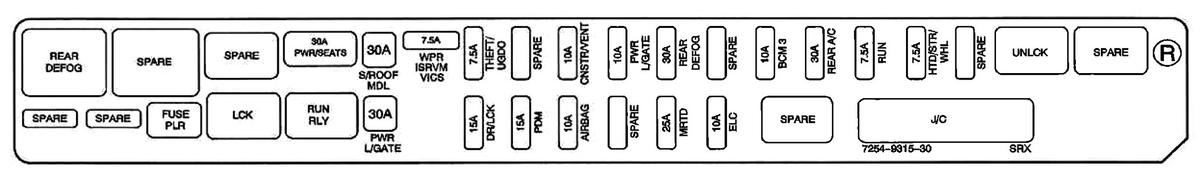

Fig 77: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

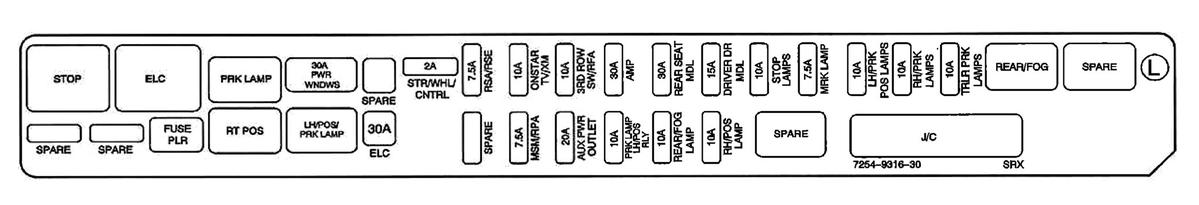

Fig 78: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 79: Rear Of "D" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Rear Side Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 81: Top Right Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 82: Transmission Control Module (TCM)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 84: Front Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 85: Sunroof Components
Courtesy of GENERAL MOTORS CORP.

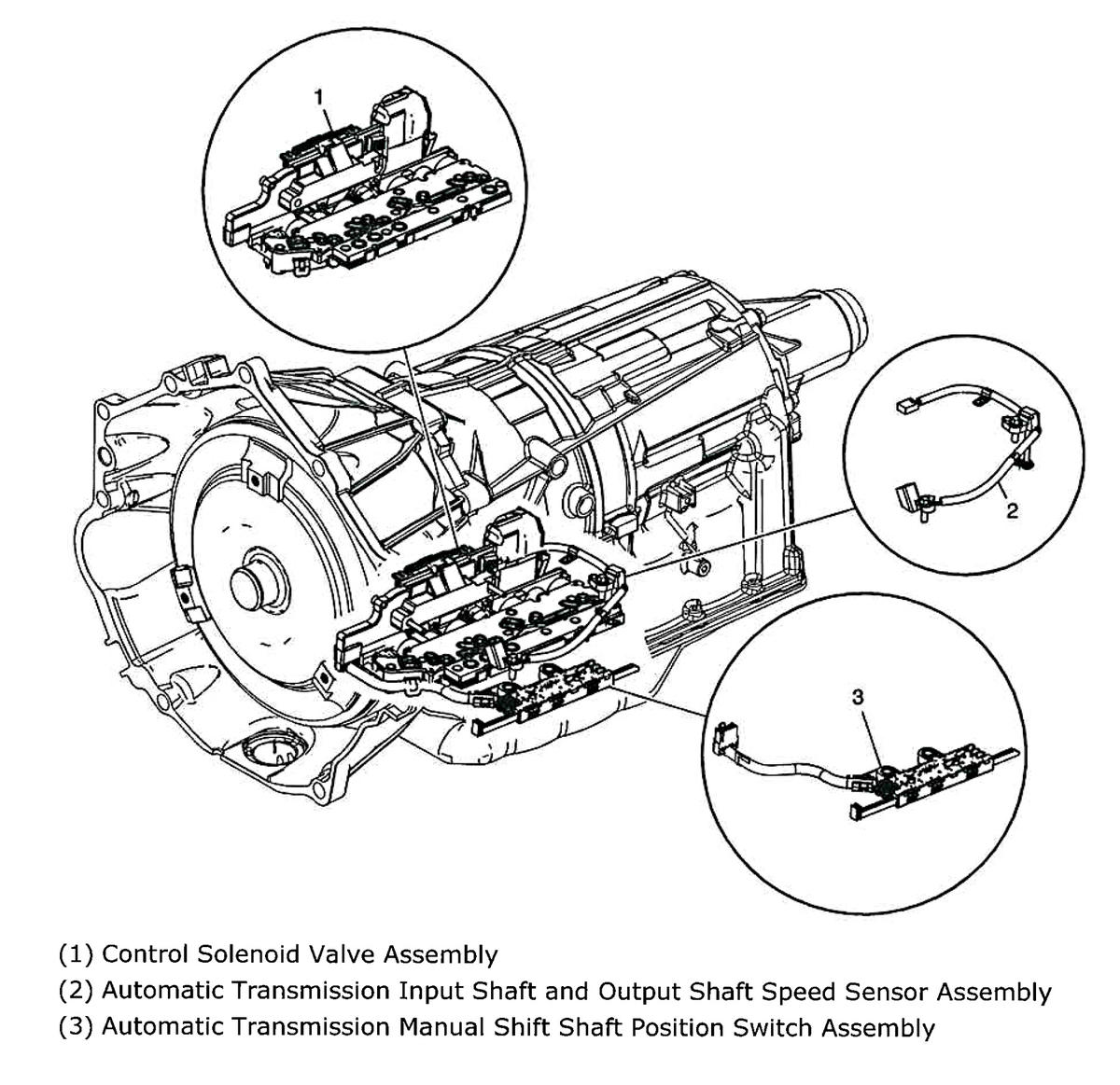

Fig 86: Transmission Electronic Components
Courtesy of GENERAL MOTORS CORP.
Fig 87: Instrument Panel & Center Console
