Remote Control Door Lock Receiver Antenna Replacement

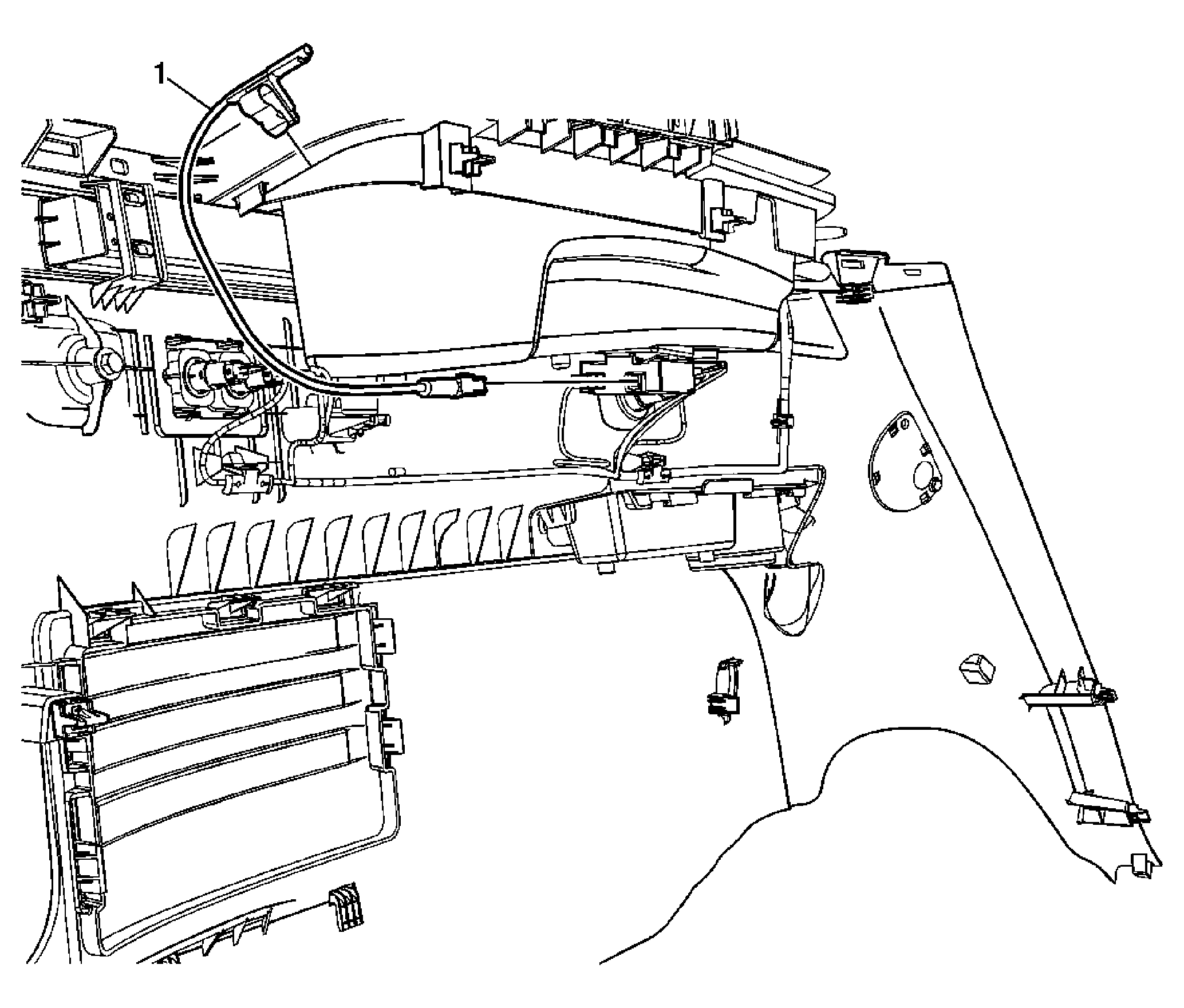

Fig 1: Identifying Remote Control Door Lock Receiver Antenna
GM2165644Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the side door opening frame garnish molding. Refer to Side Door Opening Frame Garnish Molding Replacement .
  2. Remove the body side rear upper garnish molding. Refer to Body Side Rear Upper Garnish Molding Replacement (w/o TB5) or Body Side Rear Upper Garnish Molding Replacement (w/TB5) .
1 Remote Control Door Lock Receiver Antenna

Procedure

  1. Disconnect the antenna from the remote control door lock receiver.
  2. Note routing of the antenna with integral clip attaching to the storage bin.
