Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic and Routing Diagrams
>>
Power Steering Schematics
Power Steering Schematics

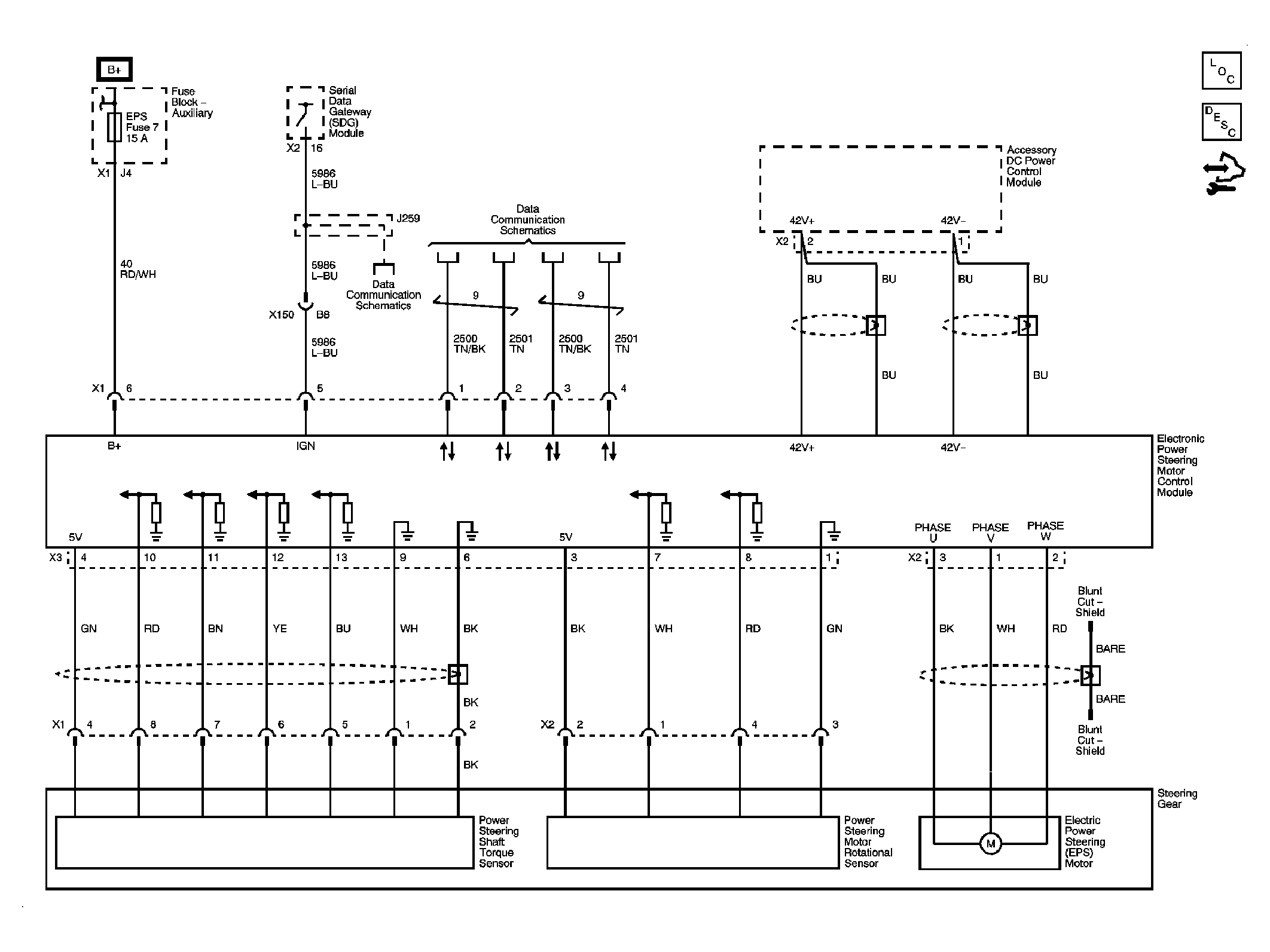

Fig 1: Hybrid Power Steering System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
