Adjustable Pedal Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

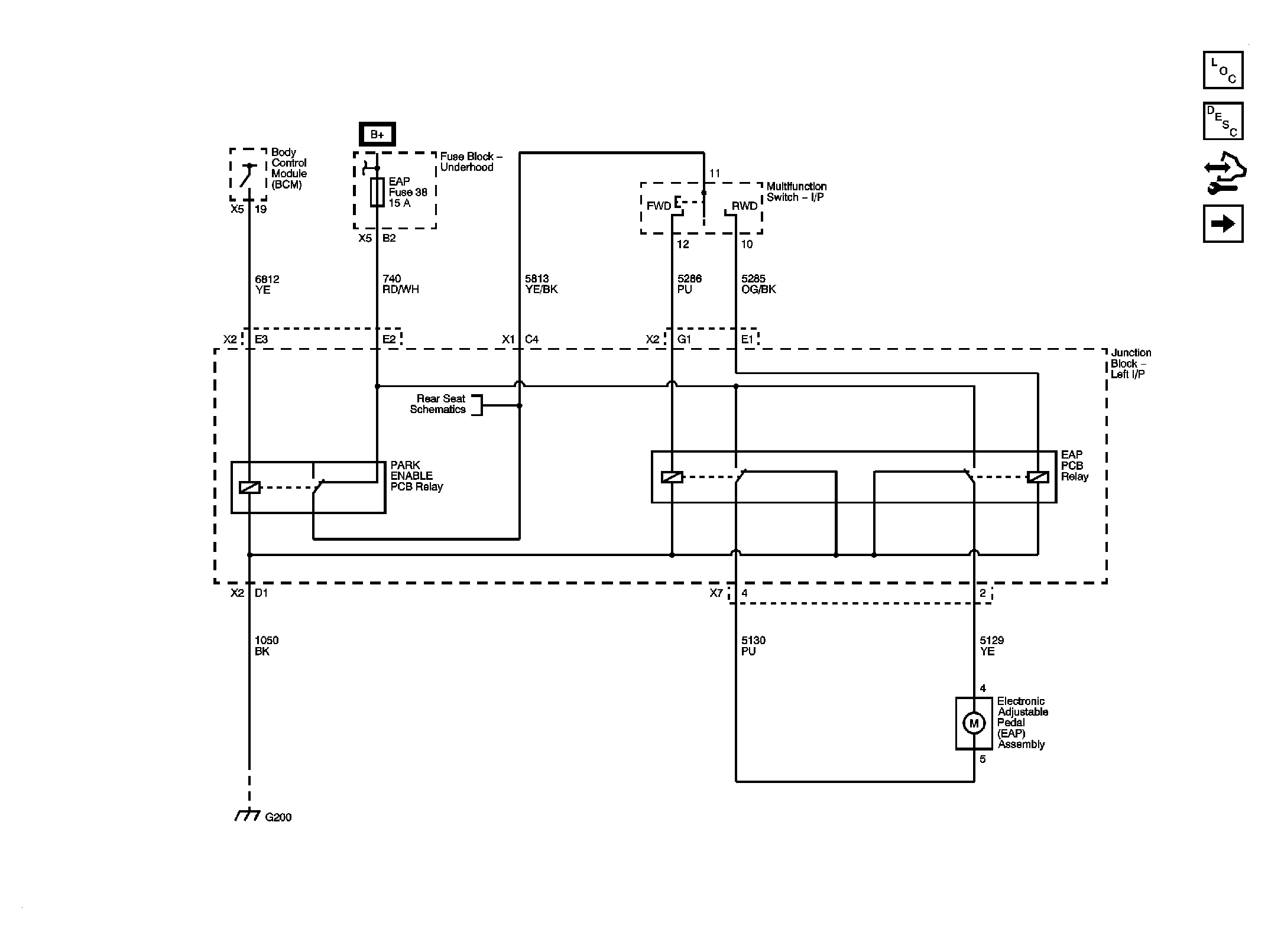

Fig 1: Except AN3
GM2241513Courtesy of GENERAL MOTORS CORP.

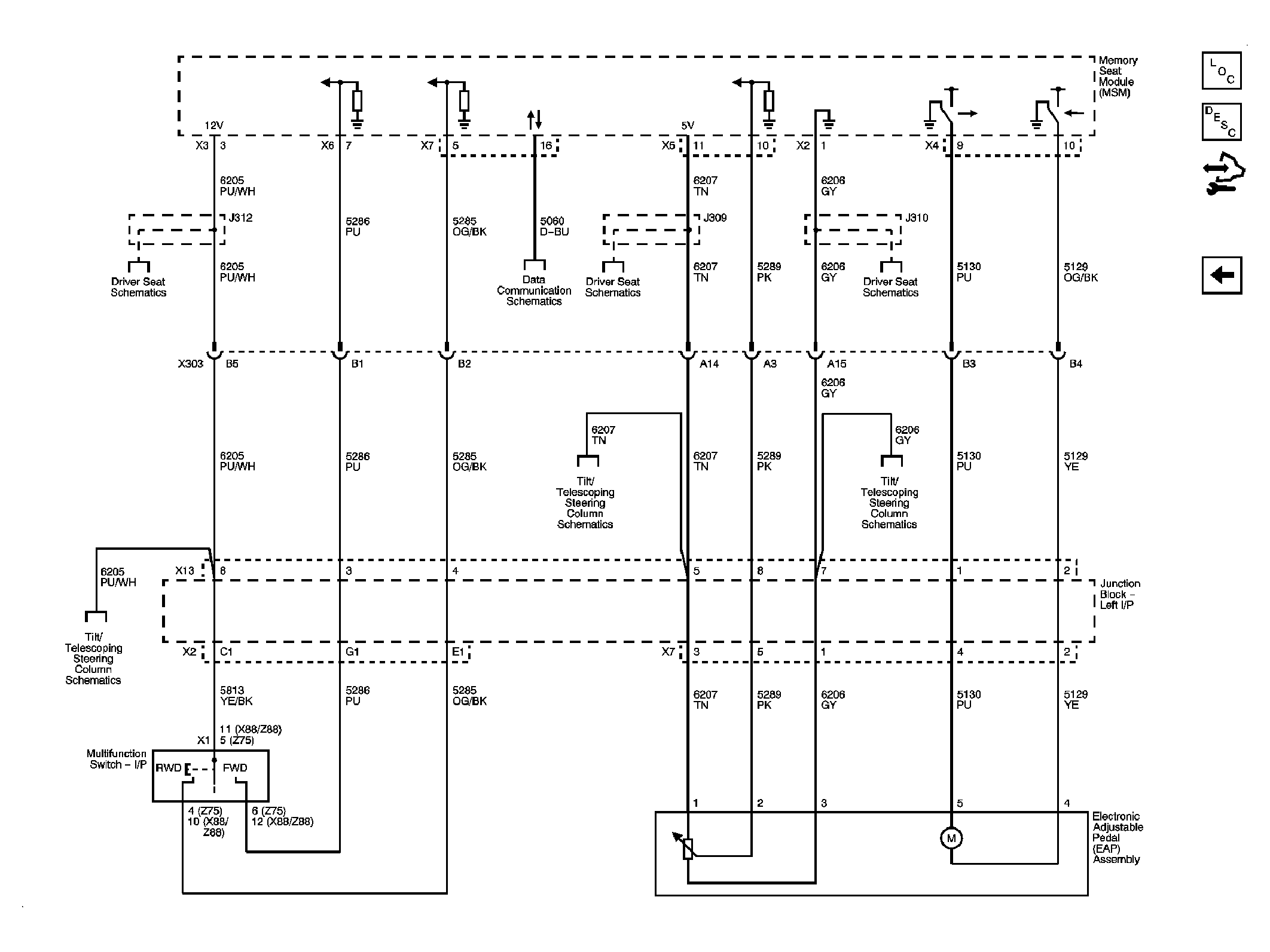

Fig 2: AN3
GM2241515Courtesy of GENERAL MOTORS CORP.
