Engine Cooling Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

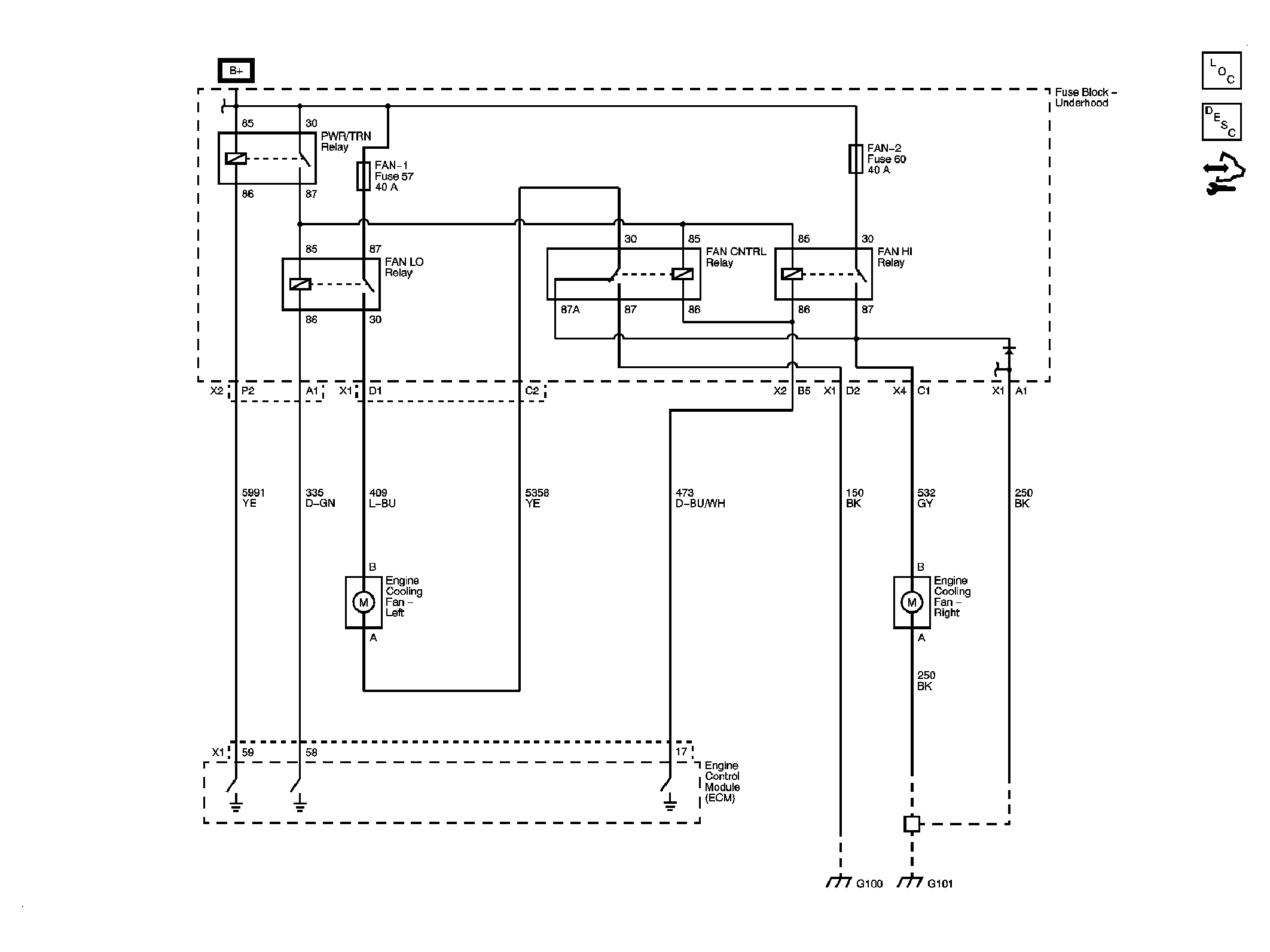

Fig 1: Except HP2
GM2240745Courtesy of GENERAL MOTORS CORP.

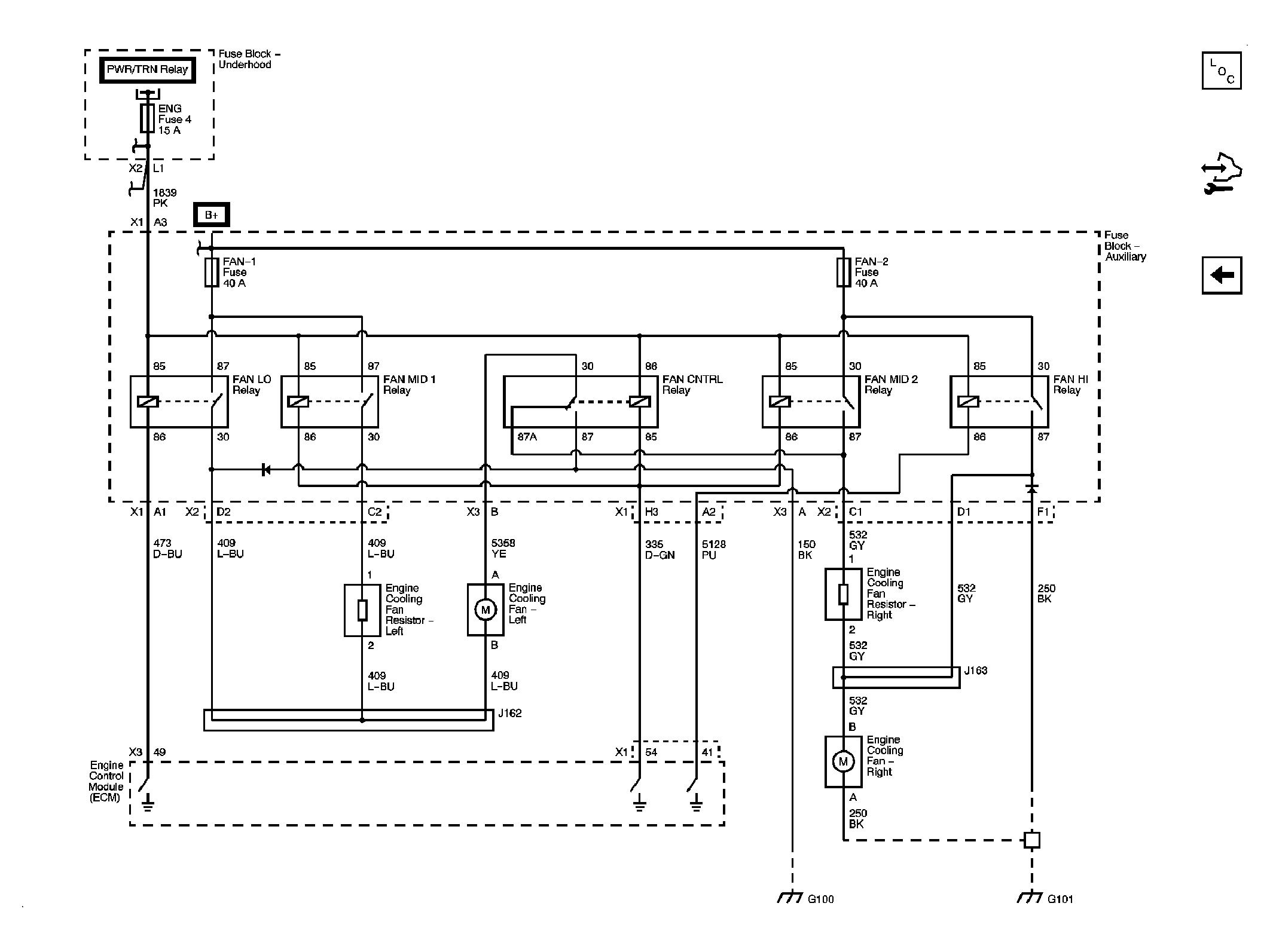

Fig 2: HP2
GM2240746Courtesy of GENERAL MOTORS CORP.
