Moveable Window Schematics
Moveable Window Schematics

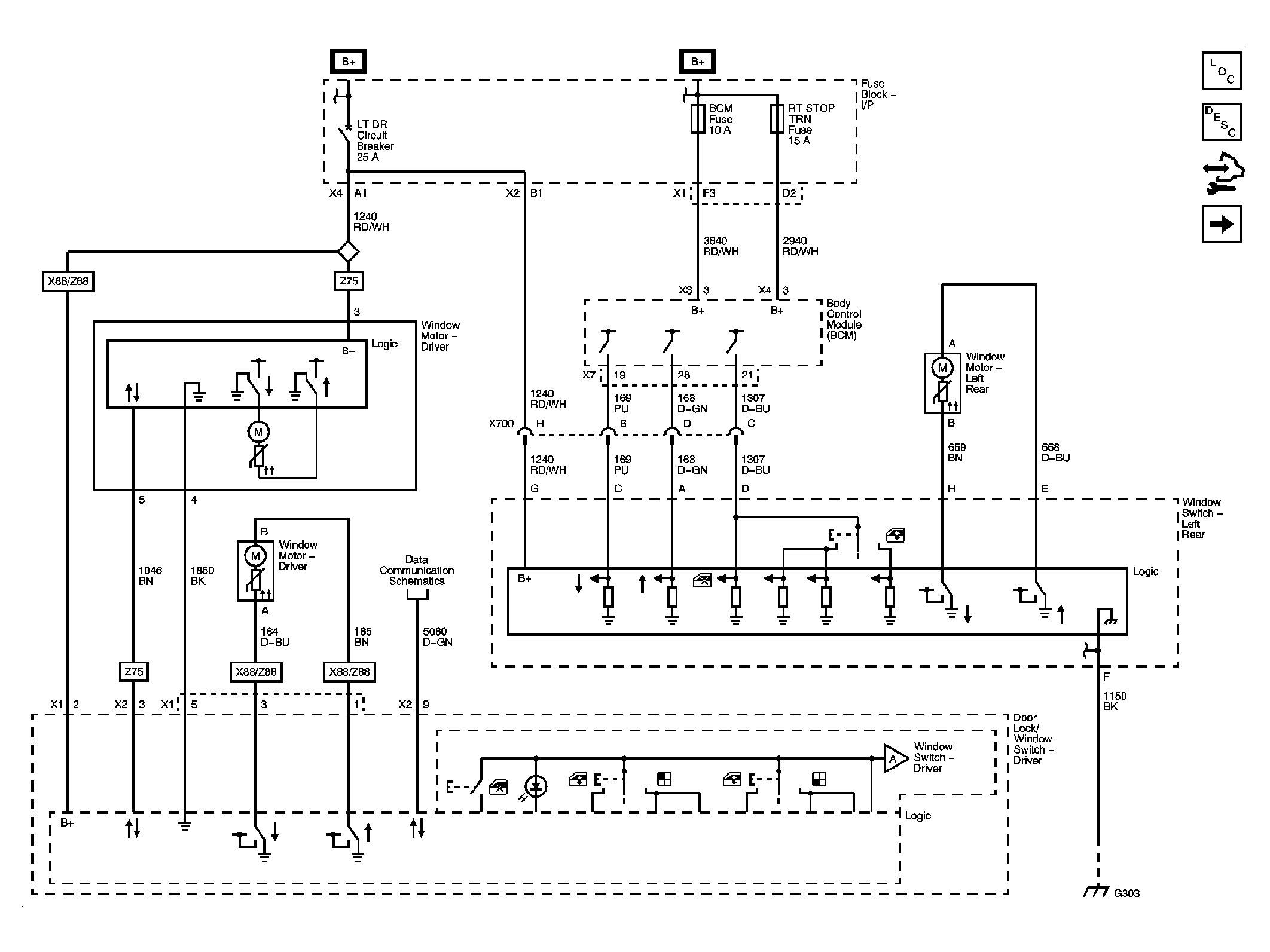

Fig 1: Left
Courtesy of GENERAL MOTORS CORP.

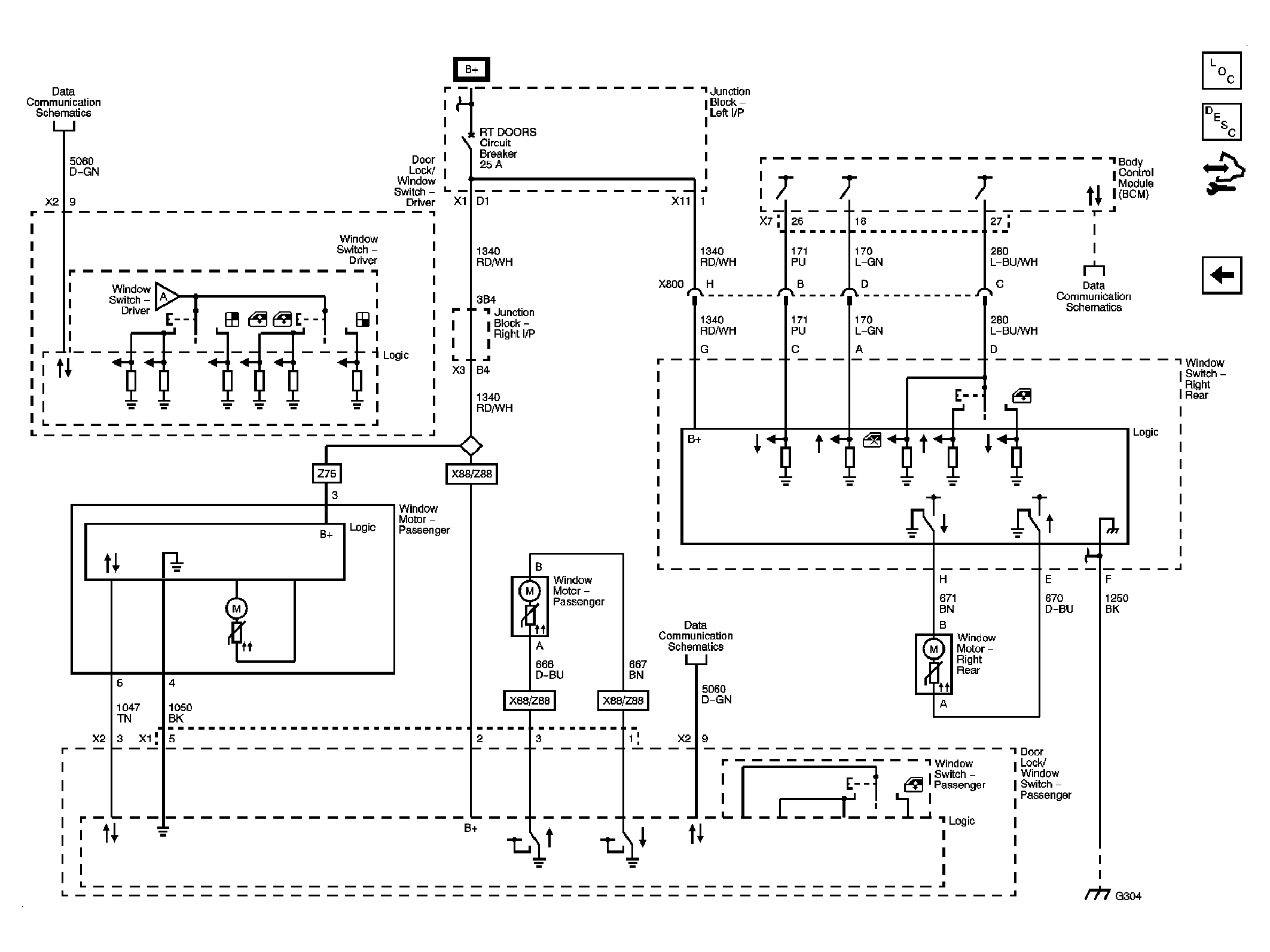

Fig 2: Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
