Power Steering System Test: Notes

Fig 1: Testing Rack and Pinion System Pressures
GM649914Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Return Hose
2 Power Steering Pressure Hose

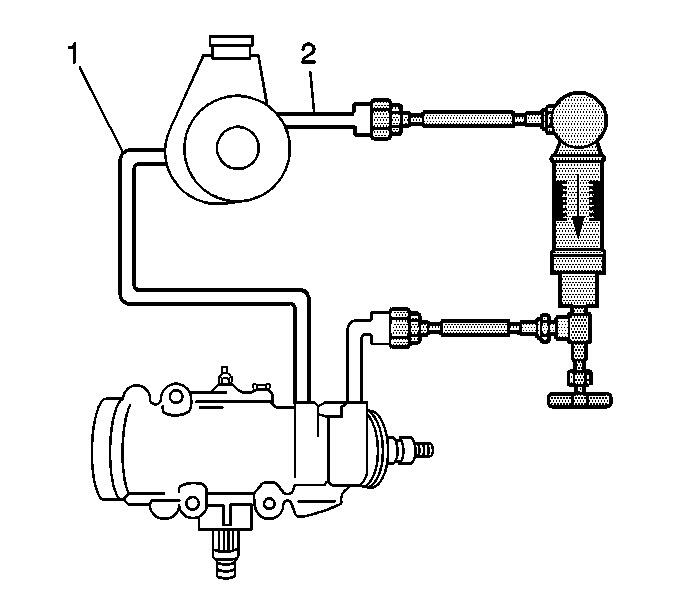

Fig 2: Testing Recirculating Ball System Pressures
GM649922Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Return Hose
2 Power Steering Pressure Hose
