Installation Procedure

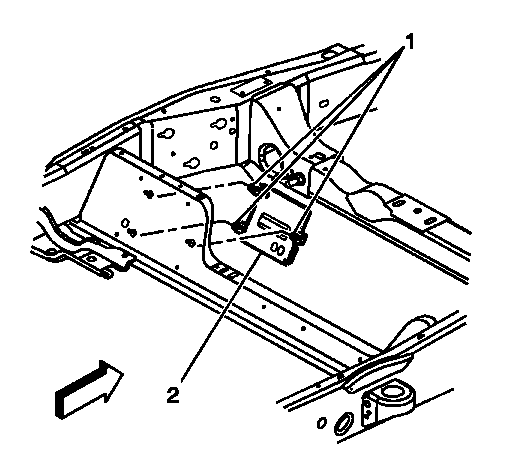

    Fig 1: Fuel Pump Flow Control Module & Bolts
    GM1911342Courtesy of GENERAL MOTORS CORP.
  1. Position the fuel pump flow control module (2) to the vehicle.
  2. Slide the fuel pump flow control module towards the driver side of the vehicle.
    3. CAUTION: Refer to Fastener Caution .
  3. Tighten the fuel pump flow control module bolts (1).

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

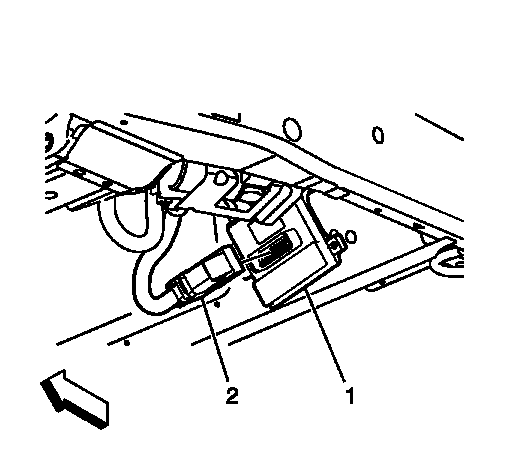

    4. Fig 2: Chassis Wiring Harness Electrical Connector
    GM1911337Courtesy of GENERAL MOTORS CORP.
  4. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module.

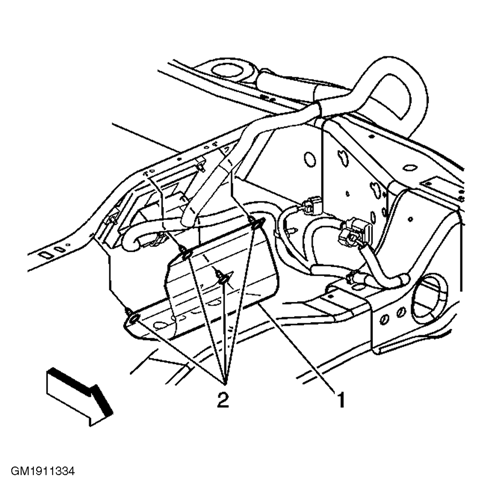

    5. Fig 3: Fuel Pump Flow Control Module Cover & Retainers
    GM1911334Courtesy of GENERAL MOTORS CORP.
  5. Position the fuel pump flow control module cover (1) over the module.
  6. Install the fuel pump flow control module cover retainers (2) to the frame.
  7. Lower the vehicle.
  8. Program the fuel pump flow control module. Refer to Control Module References .
