Windshield Wiper System Module Replacement

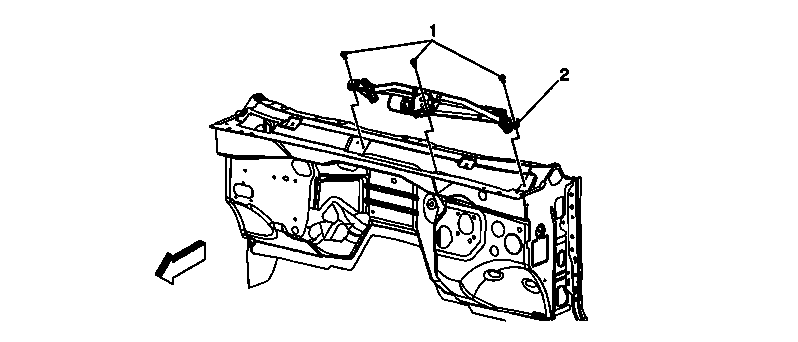

Fig 1: View Of Windshield Wiper System Module Assembly & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the wiper arms. Refer to Windshield Wiper Arm Replacement (Conventional) or Windshield Wiper Arm Replacement (Chevrolet Hybrid Two-mode) . Remove the air inlet grille panels. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Wiper System Module Assembly Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Windshield Wiper System Module Assembly Tip: Raise the module and disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Windshield Wiper System Module Assembly Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Windshield Wiper System Module Assembly
Tip: Raise the module and disconnect the electrical connector.
